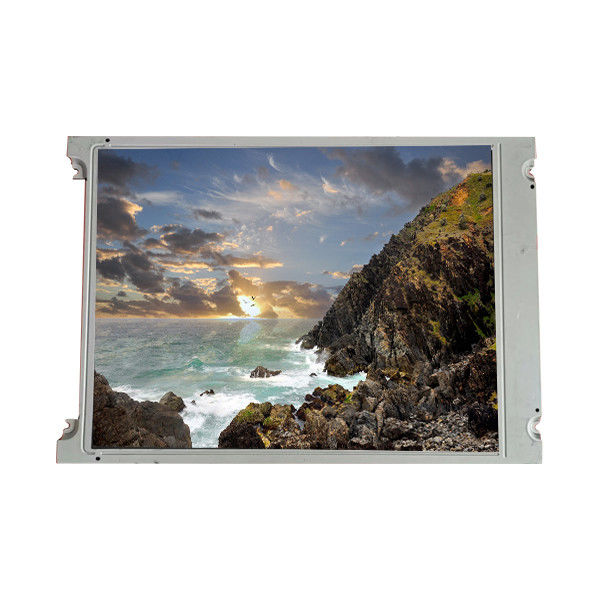

TX38D95VC1CAH 15.0 inch 1400*1050 LCD Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | KOE |
| Model Number: | TX38D95VC1CAH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TX38D95VC1CAH | Diagonal Size: | 15.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1400(RGB)×1050, SXGA+ 116PPI |
| Pixel Format: | RGB Vertical Stripe | Color Depth: | 262K |
| Application: | Laptop | Refresh Rate: | 60Hz |
Product Description
TX38D95VC1CAH 15.0 inch 1400*1050 LCD Screen Panel
TX38D95VC1CAH LCD Panel Product details :
| Brand | HITACHI |
| Model P/N | TX38D95VC1CAH |
| Diagonal Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1400(RGB)×1050, SXGA+ 116PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 304.5(W)×228.375(H) mm |
| Bezel Opening | 308.1(W)×232.1(H) mm |
| Outline Dim. | 315.8(W)×240(H)×6.8(D) mm |
| Luminance | 150 cd/m² (Typ.) |
| View Direction | 6 o'clock |
| Viewing Angle | - |
| Support Color | 262K |
| Form Style | Wedge (PCBA Bent, T≥5.2mm) |
| Frame Rate | 60Hz |
| Treatment | Antiglare |
| Contrast Ratio | 100:1 (Min.) (TM) |
| Response Time | 37/20 (Typ.)(Tr/Td) |
| Operating Mode | TN, Normally White, Transmissive |
| Light Source | CCFL [1 pcs], W/O Driver |
| Designed For | Laptop |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 6-bit)20 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 10 ~ 40 °C; Storage Temperature: -20 ~ 60 °C; Vibration Level: 2.0G (19.6 m/s²) |
| TX38D95VC1CAH 15.0 inch 1400*1050 LCD Screen Panel | |
