LM230WU3-SLB1 23.0 inch 1920*1200 LCD Panel Module

Brand Name:	LG
Model Number:	LM230WU3-SLB1
MOQ:	2 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Model Name:

LM230WU3-SLB1

Diagonal Size:

23.0"

Resolution:

1920(RGB)×1200, WUXGA 98PPI

Active Area:

495.36(W)×309.6(H) Mm

Outline Size:

523.4(W)×335.6(H)×42(D) Mm

Pixel Format:

RGB Vertical Stripe

Lamp Type:

12 PcsCCFL, 50K Hours, With Inverter

Display Colors:

16.7M 72%NTSC

Used For:

Desktop Monitor

Signal Interface:

LVDS (2 Ch, 8-bit), 30 PinsConnector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM230WU3-SLB1 23.0 inch 1920*1200 LCD Panel Module

LM230WU3-SLB1 LCD Panel Product details :

Brand	LG
Model P/N	LM230WU3-SLB1
Diagonal Size	23.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1200, WUXGA 98PPI
Pixel Format	RGB Vertical Stripe
Active Area	495.36(W)×309.6(H) mm
Bezel Opening	499.4(W)×313.6(H) mm
Outline Size	523.4(W)×335.6(H)×42(D) mm
Surface	Antiglare (Haze 13%), Hard coating (3H)
Brightness	300 cd/m² (Typ.)
Contrast Ratio	700:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Display Mode	S-IPS, Normally Black, Transmissive
Best View on	Symmetry
Response Time	5.5/6.5 (Typ.)(Tr/Td), 10 (Typ.)(G to G)
Display Colors	16.7M 72%NTSC
Lamp Type	12 pcsCCFL, 50K hours, With Inverter
Frequency	60Hz
Touch Screen	Without
Panel Weight	2.87Kgs (Typ.)
Application	Desktop Monitor
Signal Interface	LVDS (2 ch, 8-bit), 30 pinsConnector
Input Voltage	18.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
LM230WU3-SLB1 23.0 inch 1920*1200 LCD Panel Module

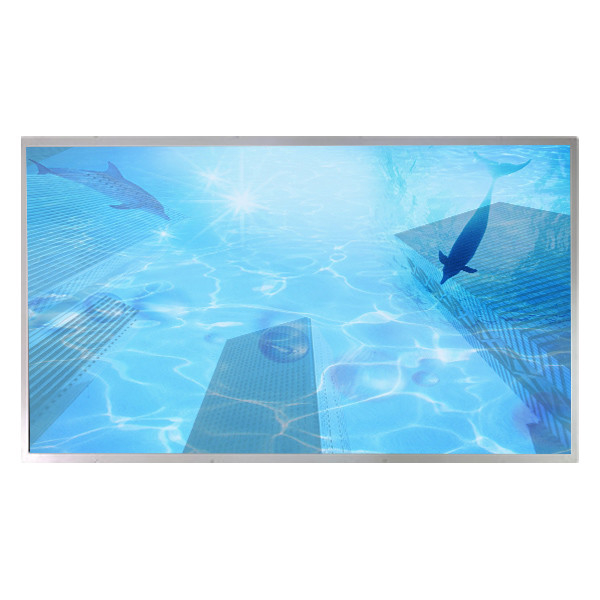

LM230WU3-SLB1 LCD Screen Photos :

Please be advised that the photos provided are for illustrative purposes only and depict items similar to the product you are considering. They serve as a general guide to help you visualize the item.

It's important to note that specific markings, labels, colors, etc., shown in the photos may not necessarily reflect the exact details of the item you will receive. If there are particular features or characteristics critical to your needs, we recommend consulting with us prior to making a purchase.

Please understand that the photos do not constitute a comprehensive description of the item, and we encourage you to reach out to us for any clarifications or additional information you may require.

LM230WU3-SLB1 LCD Panel Shipping and Package :

LM230WU3-SLB1 LCD Screen Shipping Delivery :

Thank you for choosing our LCD screen. We understand the anticipation of receiving your order promptly. It's important to note that while we strive to provide accurate estimates for delivery times, they serve as approximations rather than guarantees.

In the majority of instances, items typically arrive within or before the estimated timeframe. However, once your goods are handed over to the delivery service, their execution and timing are beyond our direct control.

LM230WU3-SLB1 LCD Screen Returns:

1. Change of Mind or Incorrect Purchase: If you wish to return the item due to a change of mind or an incorrect purchase, please be aware that you will be responsible for reimbursing any out-of-pocket delivery costs incurred by the seller. These costs will be deducted from your refund.

2. Faulty Item Claims: In cases where you claim a fault with the item but upon inspection, no fault is found, you will be required to reimburse the seller for any out-of-pocket delivery costs incurred. Additionally, if applicable, an inspection/technical services fee may also be charged.

3. Condition of Returns: All returns must be in their original condition. Items that are returned in a condition other than their original state, including but not limited to misuse or damage, will be refused.

LM230WU3-SLB1 LCD Panel FAQ :

Q: Can you tested the LM230WU3-SLB1 before shipping ?

A: Of course , our lcd panel LM230WU3-SLB1 was Strictly tested before shipping.

Q: How to order LM230WU3-SLB1 ?

A: We accept T/T , Paypal , western union .

Q: What happen if the lcd panel LM230WU3-SLB1 received can't work ?

A: LM230WU3-SLB1 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .

Q: Are you manufactory or trade company?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
