LM230WF9-SSA2 23.0 inch LCD Panel Module for Desktop Monitor

Brand Name:	LG
Model Number:	LM230WF9-SSA2
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM230WF9-SSA2

Diagonal Size:

23.0"

Resolution:

1920(RGB)×1080, FHD 95PPI

Active Area:

509.184(W)×286.416(H) Mm

Viewing Angle:

89/89/89/89 (Typ.)(CR≥10)

Display Mode:

IPS, Normally Black, Transmissive

Display Colors:

16.7M 72%NTSC

Light Source:

14S4P WLED , 30K Hours , Without Driver

Used For:

Desktop Monitor

Signal Interface:

LVDS (2 Ch, 8-bit), 30 PinsConnector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM230WF9-SSA2 23.0 inch LCD Panel Module for Desktop Monitor

LM230WF9-SSA2 LCD Panel Product details :

Brand	LG Display
Model P/N	LM230WF9-SSA2
Diagonal Size	23.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 95PPI
Pixel Format	RGB Vertical Stripe
Active Area	509.184(W)×286.416(H) mm
Bezel Opening	-
Outline Size	516.984(W)×302.708(H)×14.2(D) mm
Brightness	250 cd/m² (Typ.)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	16.7M 72%NTSC
Frequency	60Hz
Weight	1.79/1.88Kgs (Typ./Max.)
Surface	Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio	1000:1 (Typ.) (TM)
Display Mode	IPS, Normally Black, Transmissive
Response Time	14 (Typ.)(G to G)
Lamp Type	14S4P WLED , 30K hours , Without Driver
Touch Screen	Without
Application	Desktop Monitor
Signal Interface	LVDS (2 ch, 8-bit), 30 pinsConnector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
LM230WF9-SSA2 23.0 inch LCD Panel Module for Desktop Monitor

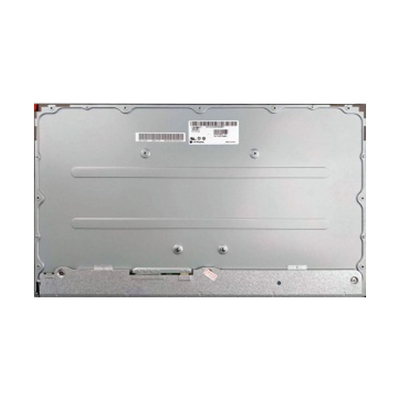

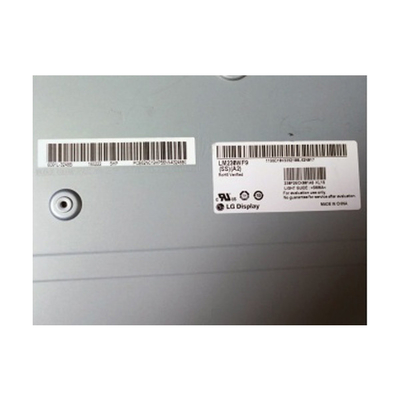

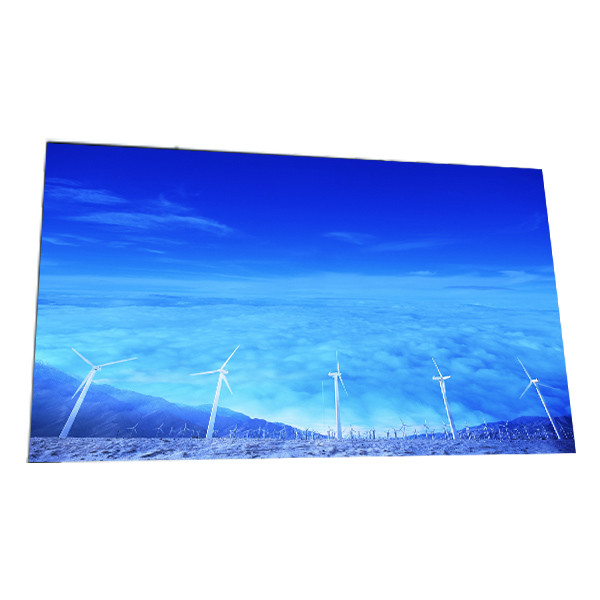

LM230WF9-SSA2 LCD Screen Photos :

Please be advised that the photos provided are for illustrative purposes only and depict items similar to the product you are considering. They serve as a general guide to help you visualize the item.

It's important to note that specific markings, labels, colors, etc., shown in the photos may not necessarily reflect the exact details of the item you will receive. If there are particular features or characteristics critical to your needs, we recommend consulting with us prior to making a purchase.

Please understand that the photos do not constitute a comprehensive description of the item, and we encourage you to reach out to us for any clarifications or additional information you may require.

LM230WF9-SSA2 LCD Panel Shipping and Package :

LM230WF9-SSA2 LCD Screen Shipping Delivery :

Thank you for choosing our LCD screen. We understand the anticipation of receiving your order promptly. It's important to note that while we strive to provide accurate estimates for delivery times, they serve as approximations rather than guarantees.

In the majority of instances, items typically arrive within or before the estimated timeframe. However, once your goods are handed over to the delivery service, their execution and timing are beyond our direct control.

LM230WF9-SSA2 LCD Screen Returns:

1. Change of Mind or Incorrect Purchase: If you wish to return the item due to a change of mind or an incorrect purchase, please be aware that you will be responsible for reimbursing any out-of-pocket delivery costs incurred by the seller. These costs will be deducted from your refund.

2. Faulty Item Claims: In cases where you claim a fault with the item but upon inspection, no fault is found, you will be required to reimburse the seller for any out-of-pocket delivery costs incurred. Additionally, if applicable, an inspection/technical services fee may also be charged.

3. Condition of Returns: All returns must be in their original condition. Items that are returned in a condition other than their original state, including but not limited to misuse or damage, will be refused.

LM230WF9-SSA2 LCD Panel FAQ :

Q: What happen if the lcd panel LM230WF9-SSA2 I received can't work ?

A: our lcd panel LM230WF9-SSA2 was tested ok before shipping .

Q: How to order lcd panel LM230WF9-SSA2 ?

A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.

Q: Can you declared low value for my order lcd screen LM230WF9-SSA2 when shipping?

A: Yes, We can do it for you if you need.

Q: How long is the warranty of 23.0 inch LM230WF9-SSA2 ?

A: 90 days .
