TX38D88VC1GAB 15.0 inch 1024*768 LCD Screen For Laptop
Product Details:
| Place of Origin: | China |
| Brand Name: | KOE |
| Model Number: | TX38D88VC1GAB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TX38D88VC1GAB | Diagonal Size: | 15.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×768, XGA 85PPI |
| Pixel Format: | RGB Vertical Stripe | Color Depth: | 262K 51%NTSC |
| Application: | Laptop、Industrial | Refresh Rate: | 60Hz |
Product Description

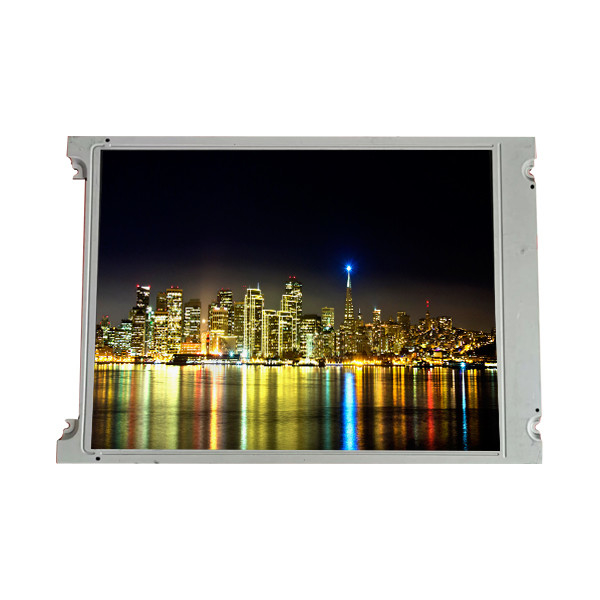

TX38D88VC1GAB 15.0 inch 1024*768 LCD Screen For Laptop
TX38D88VC1GAB LCD Panel Product details :
| Brand | HITACHI |
| Model P/N | TX38D88VC1GAB |
| Diagonal Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 307.128(W)×231.096(H) mm |
| Outline Size | 315.8(W)×241.5(H)×9.7(D) mm |
| Surface | Glare (Haze 0%), Antireflection |
| Brightness | 430 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Viewing Angle | 80/80/50/50 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 30/20 (Typ.)(Tr/Td) |
| Display Colors | 262K 51%NTSC |
| Lamp Type | 2 pcsCCFL, 10K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | - |
| Application | Laptop,Industrial |
| Signal Interface | LVDS (1 ch, 6-bit), 30 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C ; Vibration Level: 3.0G (29.4 m/s²) |
| TX38D88VC1GAB 15.0 inch 1024*768 LCD Screen For Laptop | |
