LM230WF7-SSB1 23.0 inch FHD touch TFT LCD Screen for KIOSK

Brand Name:	LG
Model Number:	LM230WF7-SSB1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM230WF7-SSB1

Diagonal Size:

23.0"

Resolution:

1920(RGB)×1080, FHD 95PPI

Active Area:

509.184(W)×286.416(H) Mm

Viewing Angle:

89/89/89/89 (Typ.)(CR≥10)

Display Mode:

IPS, Normally Black, Transmissive

Display Colors:

16.7M 72%NTSC

Light Source:

3 StringsWLED, 30K Hours, Without Driver

Used For:

Desktop Monitor

Signal Interface:

LVDS (2 Ch, 8-bit), 30 PinsConnector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM230WF7-SSB1 23.0 inch FHD touch TFT LCD Screen for KIOSK

LM230WF7-SSB1 LCD Panel Product details :

Brand	LG Display
Model P/N	LM230WF7-SSB1
Diagonal Size	23.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 95PPI
Pixel Format	RGB Vertical Stripe
Active Area	509.184(W)×286.416(H) mm
Bezel Opening	-
Outline Dim.	517.2(H)×302.8(V)×12.7(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	14 (Typ.)(G to G)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	IPS, Normally Black, Transmissive
Support Color	16.7M 72%NTSC
Light Source	WLED [14S4P], 30K hours, W/O Driver
Weight	1.81Kgs (Typ.)
Designed For	Desktop Monitor
Frame Rate	60Hz
Touch Panel	In-Cell Touch, USB
Interface Type	LVDS (2 ch, 8-bit), 30 pinsConnector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
LM230WF7-SSB1 23.0 inch FHD touch TFT LCD Screen for KIOSK

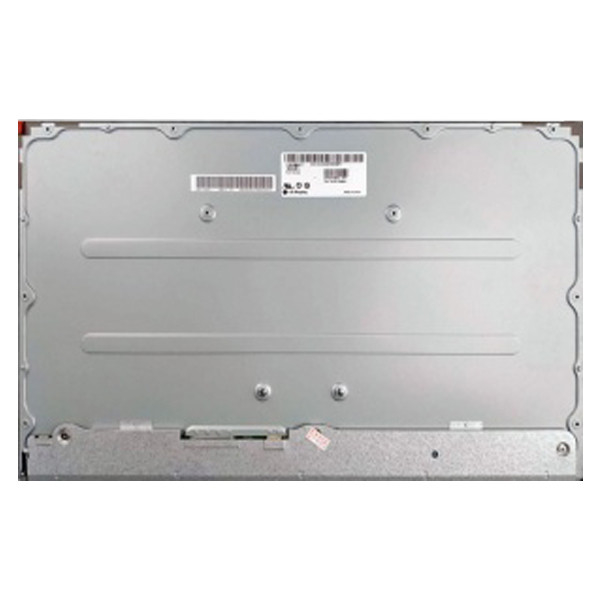

LM230WF7-SSB1 LCD Screen Photos :

Please be advised that the photos provided are for illustrative purposes only and depict items similar to the product you are considering. They serve as a general guide to help you visualize the item.

It's important to note that specific markings, labels, colors, etc., shown in the photos may not necessarily reflect the exact details of the item you will receive. If there are particular features or characteristics critical to your needs, we recommend consulting with us prior to making a purchase.

Please understand that the photos do not constitute a comprehensive description of the item, and we encourage you to reach out to us for any clarifications or additional information you may require.

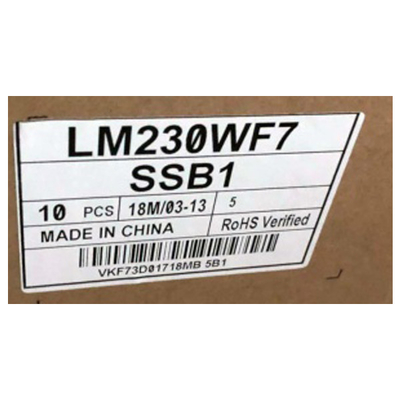

LM230WF7-SSB1 LCD Panel Shipping and Package :

LM230WF7-SSB1 LCD Screen Shipping Delivery :

Thank you for choosing our LCD screen. We understand the anticipation of receiving your order promptly. It's important to note that while we strive to provide accurate estimates for delivery times, they serve as approximations rather than guarantees.

In the majority of instances, items typically arrive within or before the estimated timeframe. However, once your goods are handed over to the delivery service, their execution and timing are beyond our direct control.

LM230WF7-SSB1 LCD Screen Returns:

1. Change of Mind or Incorrect Purchase: If you wish to return the item due to a change of mind or an incorrect purchase, please be aware that you will be responsible for reimbursing any out-of-pocket delivery costs incurred by the seller. These costs will be deducted from your refund.

2. Faulty Item Claims: In cases where you claim a fault with the item but upon inspection, no fault is found, you will be required to reimburse the seller for any out-of-pocket delivery costs incurred. Additionally, if applicable, an inspection/technical services fee may also be charged.

3. Condition of Returns: All returns must be in their original condition. Items that are returned in a condition other than their original state, including but not limited to misuse or damage, will be refused.

LM230WF7-SSB1 LCD Panel FAQ :

Q: When will my order 23.0 inch lcd panel LM230WF7-SSB1 ship?

A: The order are shipped within 1-2 working days after received the payment.

Q: Can you test 23.0 inch lcd panel LM230WF7-SSB1 before shipping?

A: Don't Worry , The LM230WF7-SSB1 was tested ok before shipping.

Q: What happen if LM230WF7-SSB1 I received can't work ?

A: The LM230WF7-SSB1 will be tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
