TX38D55VM1AAA 15.0 inch 1024*768 LCD Screen Panel For KOE
Product Details:
| Place of Origin: | China |
| Brand Name: | KOE |
| Model Number: | TX38D55VM1AAA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TX38D55VM1AAA | Diagonal Size: | 15.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×768, XGA 85PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 304.128(W)×228.096(H) Mm |
| Application: | Industrial | Voltage Supply: | 3.3V (Typ.) |
Product Description

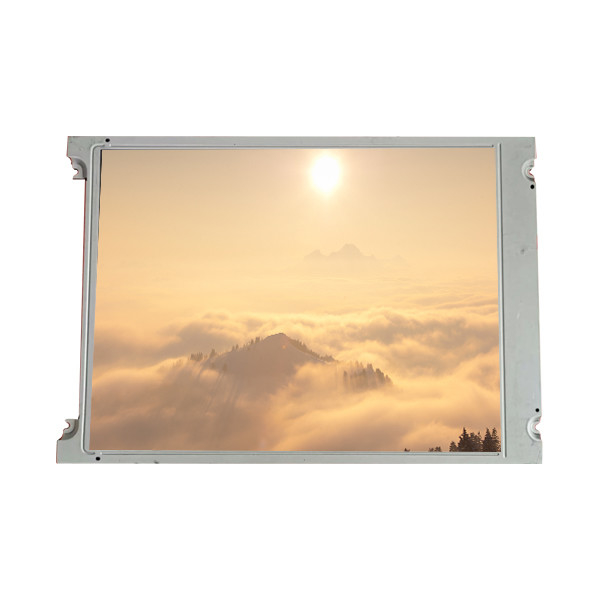

TX38D55VM1AAA 15.0 inch 1024*768 LCD Screen Panel For KOE
TX38D55VM1AAA LCD Panel Product details :
| Brand | HITACHI |
| Model P/N | TX38D55VM1AAA |
| Diagonal Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 307.1(W)×231.1(H) mm |
| Outline(mm) | 330 × 260× 17.5 (H×V×D) |
| Treatment | Glare (Haze 0%) |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 60/60/40/50 (Typ.)(CR≥10) |
| Response | 20/10 (Typ.)(Tr/Td) ms |
| Good View at | 12 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 68%NTSC |
| Backlight | 4 pcsCCFL, No Driver |
| Mass | 1.30Kgs (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit), 20 pinsConnector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| TX38D55VM1AAA 15.0 inch 1024*768 LCD Screen Panel For KOE | |
