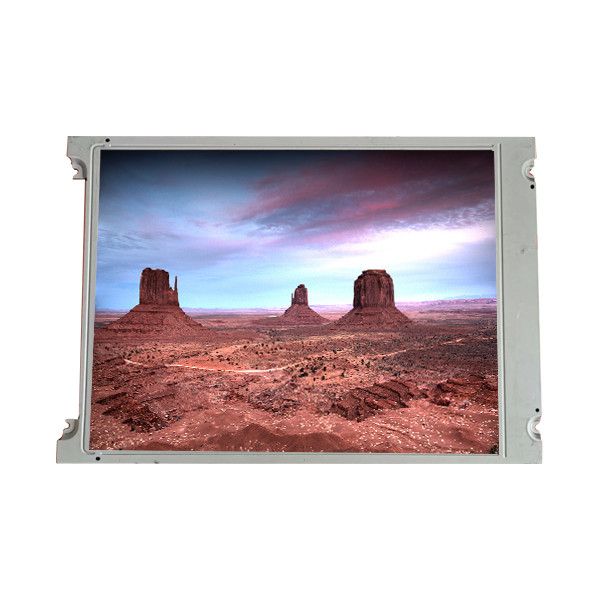

TX36D88VC1CAA 14.0 inch 1024*768 LCD Screen Panel LCD Module
Product Details:
| Place of Origin: | China |
| Brand Name: | KOE |
| Model Number: | TX36D88VC1CAA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TX36D88VC1CAA | Diagonal Size: | 14.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×768, XGA 91PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 285.696(W)×214.272(H) Mm |
| Application: | Laptop | Input Voltage: | 3.3V (Typ.) |
Product Description
TX36D88VC1CAA 14.0 inch 1024*768 LCD Screen Panel LCD Module
TX36D88VC1CAA LCD Panel Product details :
| Brand | HITACHI |
| Model P/N | TX36D88VC1CAA |
| Diagonal Size | 14.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 91PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 285.696(W)×214.272(H) mm |
| Bezel Opening | 289.7(W)×218.3(H) mm |
| Outline Size | 298.5(W)×225.5(H)×6(D) mm |
| Surface | - |
| Brightness | 150 cd/m² (Typ.) |
| Contrast Ratio | 150:1 (Typ.) (TM) |
| Viewing Angle | - |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 50/30 (Typ.)(Tr/Td) |
| Display Colors | 262K 48%NTSC |
| Lamp Type | 1 pcsCCFL, Optional |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Wedge (PCBA Bent, T≥5.2mm) |
| Application | Laptop |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 40 °C ;Storage Temp.: -20 ~ 60 °C; Vibration Level: 2.0G (19.6 m/s²) |
| TX36D88VC1CAA 14.0 inch 1024*768 LCD Screen Panel LCD Module | |
