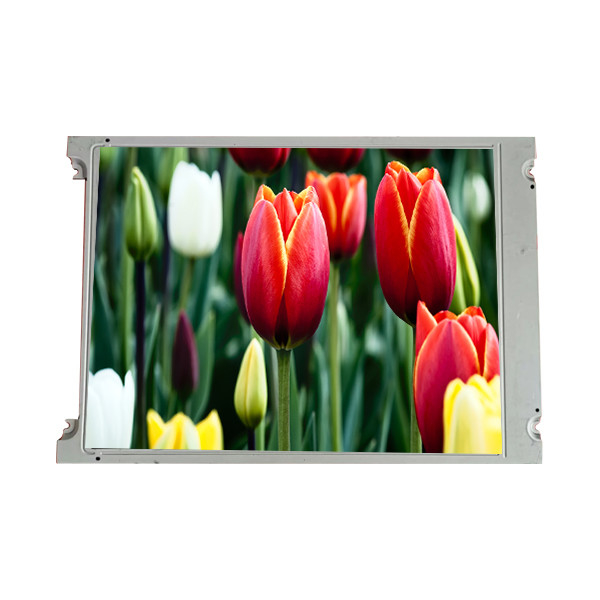

TX36D81VC1CAB 14.1 inch 1024*768 LCD Screen Panel LCD Module
Product Details:
| Place of Origin: | China |
| Brand Name: | KOE |
| Model Number: | TX36D81VC1CAB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TX36D81VC1CAB | Diagonal Size: | 14.1" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×768, XGA 91PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 285.696(W)×214.272(H) Mm |
| Application: | Laptop | Input Voltage: | 3.3V (Typ.) |
Product Description
TX36D81VC1CAB 14.1 inch 1024*768 LCD Screen Panel LCD Module
TX36D81VC1CAB LCD Panel Product details :
| Brand | HITACHI |
| Model P/N | TX36D81VC1CAB |
| Diagonal Size | 14.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 91PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 285.696(W)×214.272(H) mm |
| Bezel Opening | 289.7(W)×218.3(H) mm |
| Outline Dim. | 298.5(H)×225.5(V)×6(D) mm |
| Treatment | Antiglare |
| Luminance | 130 cd/m² (Typ.) |
| Contrast Ratio | 150:1 (Typ.) (TM) |
| View Direction | - |
| Response Time | - |
| Viewing Angle | - |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 50%NTSC |
| Light Source | CCFL [1 pcs], W/O Driver |
| Form Style | Wedge (PCBA Bent, T≥5.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6-bit), 20 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 45 °C ; Storage Temperature: -20 ~ 60 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| TX36D81VC1CAB 14.1 inch 1024*768 LCD Screen Panel LCD Module | |
TX36D81VC1CAB LCD Screen About Us:
At our store, we prioritize quality and customer satisfaction. Before shipping out any product, we meticulously test each item to ensure it meets our high standards. Upon receiving your order, we urge you to promptly inspect and use the product.
In the rare event that the product does not function properly or arrives damaged, we kindly request that you reach out to us directly. By contacting us, you allow us the opportunity to swiftly address any issues without the need for opening a CASE, which can have detrimental effects on our store's reputation and prolong the resolution process significantly.
As dedicated sellers, we take full responsibility for resolving any problems you encounter with our products. Your satisfaction is our top priority, and we are committed to working with you until the issue is fully resolved.
Therefore, we encourage you to contact us directly should you experience any difficulties or concerns with your purchase. We are here to assist you every step of the way.
TX36D81VC1CAB LCD Screen Payment:
For your convenience, we accept a variety of payment methods, including PayPal and all major credit cards such as Visa, MasterCard, ALI, and Discover. When placing your order, you'll find a dropdown menu where you can select the specific model and, if applicable, the color variation.
Should you need to modify or cancel your order, you have the right to do so before it enters the shipping process. Simply reach out to us, and we'll assist you with the necessary steps. However, once the order has been shipped, we are unable to cancel it. In such cases, please contact us, and we'll work together to find a suitable solution to meet your needs.
TX36D81VC1CAB LCD Panel Shipping and Package :
TX36D81VC1CAB LCD Screen Shipping:
Please ensure that the address provided is accurate and deliverable. We cannot be held responsible for undeliverable addresses. In the event of items being returned due to an incorrect address, we reserve the right to charge a shipping fee to resend the items.
Orders are typically processed and shipped within 5 business days following the clearance of your payment. Please note that shipments are not made on Saturdays, Sundays, or holidays.
Our standard shipping method is airmail, which is reliable and cost-effective. For those requiring urgent delivery, we also offer international Express options such as EMS. Please be aware that opting for Express delivery may incur an additional shipping fee.
While we strive to ensure prompt delivery, the speed of shipping is beyond our control. Generally, shipments take between 10 to 35 working days to reach most countries, excluding peak periods and special holidays. If you have not received your order within one month, please don't hesitate to contact us for assistance.
Your satisfaction with our shipping services is important to us, and we're here to help address any concerns you may have regarding the delivery of your order.
TX36D81VC1CAB LCD Panel FAQ :
Q: Can You declare my order of TX36D81VC1CAB to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can I pay my order of TX36D81VC1CAB via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of TX36D81VC1CAB ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of TX36D81VC1CAB ?
A: Of course!sample order is welcome !
Want to Know more details about this product
