LCD Screen Display Panel

LM230WF1-TLA6 23.0 inch LCD Panel 1920*1080 LCD Screen

All Category

Floor Standing Digital Signage

LM230WF1-TLA6 23.0 inch LCD Panel 1920*1080 LCD Screen

Brand Name:	LG
Model Number:	LM230WF1-TLA6
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM230WF1-TLA6

Diagonal Size:

23.0"

Resolution:

1920(RGB)×1080, FHD 95PPI

Active Area:

509.184(W)×286.416(H) Mm

Outline Size:

533.2(W)×312(H)×17(D) Mm

Display Mode:

TN, Normally White, Transmissive

Display Colors:

16.7M 72%NTSC

Lamp Type:

4 PcsCCFL, 50K Hours, Without Driver

Used For:

Desktop Monitor

Signal Interface:

LVDS (2 Ch, 8-bit), 30 Pins Connector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM230WF1-TLA6 23.0 inch LCD Panel 1920*1080 LCD Screen

LM230WF1-TLA6 LCD Panel Product details :

Brand	LG Display
Model P/N	LM230WF1-TLA6
Diagonal Size	23.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 95PPI
Pixel Format	RGB Vertical Stripe
Active Area	509.184(W)×286.416(H) mm
Bezel Opening	513.784(W)×291.016(H) mm
Outline Size	533.2(W)×312(H)×17(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	300 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	85/85/75/85 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	1.3/3.7 (Typ.)(Tr/Td)
Display Colors	16.7M 72%NTSC
Lamp Type	4 pcsCCFL, 50K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	2.60/2.70Kgs (Typ./Max.)
Application	Desktop Monitor
Signal Interface	LVDS (2 ch, 8-bit), 30 pins Connector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
LM230WF1-TLA6 23.0 inch LCD Panel 1920*1080 LCD Screen

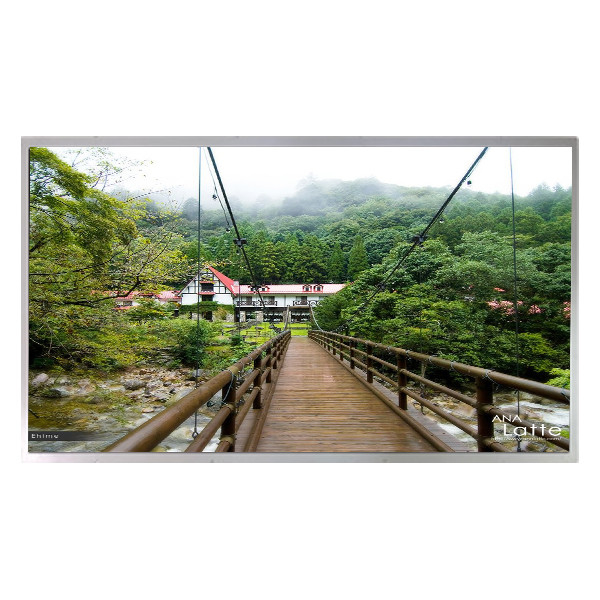

LM230WF1-TLA6 LCD Screen Photos :

Please be advised that the photos provided are for illustrative purposes only and depict items similar to the product you are considering. They serve as a general guide to help you visualize the item.

It's important to note that specific markings, labels, colors, etc., shown in the photos may not necessarily reflect the exact details of the item you will receive. If there are particular features or characteristics critical to your needs, we recommend consulting with us prior to making a purchase.

Please understand that the photos do not constitute a comprehensive description of the item, and we encourage you to reach out to us for any clarifications or additional information you may require.

LM230WF1-TLA6 LCD Panel Shipping and Package :

LM230WF1-TLA6 LCD Screen Shipping Delivery :

Thank you for choosing our LCD screen. We understand the anticipation of receiving your order promptly. It's important to note that while we strive to provide accurate estimates for delivery times, they serve as approximations rather than guarantees.

In the majority of instances, items typically arrive within or before the estimated timeframe. However, once your goods are handed over to the delivery service, their execution and timing are beyond our direct control.

LM230WF1-TLA6 LCD Screen Returns:

1. Change of Mind or Incorrect Purchase: If you wish to return the item due to a change of mind or an incorrect purchase, please be aware that you will be responsible for reimbursing any out-of-pocket delivery costs incurred by the seller. These costs will be deducted from your refund.

2. Faulty Item Claims: In cases where you claim a fault with the item but upon inspection, no fault is found, you will be required to reimburse the seller for any out-of-pocket delivery costs incurred. Additionally, if applicable, an inspection/technical services fee may also be charged.

3. Condition of Returns: All returns must be in their original condition. Items that are returned in a condition other than their original state, including but not limited to misuse or damage, will be refused.

LM230WF1-TLA6 LCD Panel FAQ :

Q: Can I pay my order of LM230WF1-TLA6 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of LM230WF1-TLA6 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of LM230WF1-TLA6 ?

A: we will give you tracking number then you can trace your order from website.

Q: How long is the warranty ?

A: We offer 90 days warranty .
