LM230WF1-TLA1 23.0 inch 1920*1080 LCD Panel Module
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LM230WF1-TLA1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM230WF1-TLA1 | Diagonal Size: | 23.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 95PPI | Active Area: | 509.184(W)×286.416(H) Mm |
| Outline Size: | 533.2(W)×312(H)×17(D) Mm | Display Mode: | TN, Normally White, Transmissive |
| Display Colors: | 16.7M 72%NTSC | Lamp Type: | 4 Pcs CCFL , 50K Hours , Without Driver |
| Used For: | Desktop Monitor | Signal Interface: | LVDS (2 Ch, 8-bit), 30 PinsConnector |
Product Description
LM230WF1-TLA1 23.0 inch 1920*1080 LCD Panel Module
LM230WF1-TLA1 LCD Panel Product details :
| Brand | LG |
| Model P/N | LM230WF1-TLA1 |
| Diagonal Size | 23.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 95PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 509.184(W)×286.416(H) mm |
| Bezel Opening | 513.8(W)×291.0(H) mm |
| Outline Size | 533.2(W)×312(H)×17(D) mm |
| Brightness | 300 cd/m² (Typ.) |
| Viewing Angle | 85/85/75/85 (Typ.)(CR≥10) |
| Best View on | 6 o'clock |
| Display Colors | 16.7M 72%NTSC |
| Frequency | 60Hz |
| Weight | 2.60/2.75Kgs (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 1/4 (Typ.)(Tr/Td) |
| Lamp Type | 4 pcs CCFL , 50K hours , Without Driver |
| Touch Screen | Without |
| Application | Desktop Monitor |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
| LM230WF1-TLA1 23.0 inch 1920*1080 LCD Panel Module | |

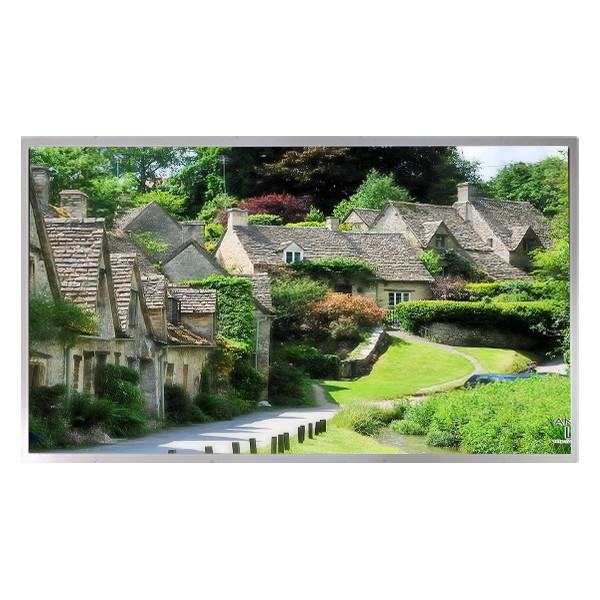

LM230WF1-TLA1 LCD Screen Photos :
Please be advised that the photos provided are for illustrative purposes only and depict items similar to the product you are considering. They serve as a general guide to help you visualize the item.
It's important to note that specific markings, labels, colors, etc., shown in the photos may not necessarily reflect the exact details of the item you will receive. If there are particular features or characteristics critical to your needs, we recommend consulting with us prior to making a purchase.
Please understand that the photos do not constitute a comprehensive description of the item, and we encourage you to reach out to us for any clarifications or additional information you may require.
LM230WF1-TLA1 LCD Panel Shipping and Package :
LM230WF1-TLA1 LCD Screen Shipping Delivery :
Thank you for choosing our LCD screen. We understand the anticipation of receiving your order promptly. It's important to note that while we strive to provide accurate estimates for delivery times, they serve as approximations rather than guarantees.
In the majority of instances, items typically arrive within or before the estimated timeframe. However, once your goods are handed over to the delivery service, their execution and timing are beyond our direct control.
LM230WF1-TLA1 LCD Screen Returns:
1. Change of Mind or Incorrect Purchase: If you wish to return the item due to a change of mind or an incorrect purchase, please be aware that you will be responsible for reimbursing any out-of-pocket delivery costs incurred by the seller. These costs will be deducted from your refund.
2. Faulty Item Claims: In cases where you claim a fault with the item but upon inspection, no fault is found, you will be required to reimburse the seller for any out-of-pocket delivery costs incurred. Additionally, if applicable, an inspection/technical services fee may also be charged.
3. Condition of Returns: All returns must be in their original condition. Items that are returned in a condition other than their original state, including but not limited to misuse or damage, will be refused.
LM230WF1-TLA1 LCD Panel FAQ :
Q: How do you ship my goods LM230WF1-TLA1 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of LG LM230WF1-TLA1 ?
A: 90 days warranty .
Q: How can I trace my order of LM230WF1-TLA1 ?
A: we will give you tracking number then you can trace your order form website.
Q: Can you give me a discount if I need a large quantity of LM230WF1-TLA1 ?
A: Of course!If you make a large order, we will give you a discount.
