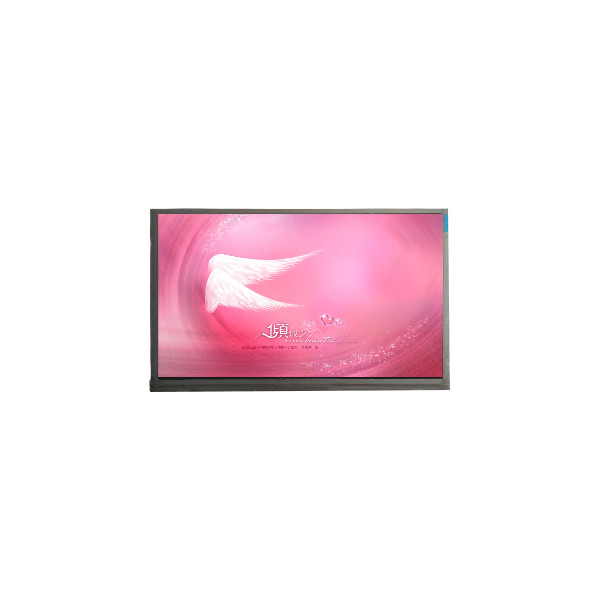

10.4 inch F104A02-6T1 lcd panel resolution 1200*2000 LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | F104A02-6T1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | F104A02-6T1 | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 1200(RGB)×2000 225PPI | Active Area: | 135.36(W)×225.6(H) Mm |
| Outline Size: | 139.36(W)×233.3(H)×0.8(D) Mm | Brightness: | 0 Cd/m² |
| Contrast Ratio: | 1300:1 (Typ.) (TM) | Display Colors: | 16.7M 66% |
| Application: | Pad & Tablet | Touch Screen: | In-Cell Touch, I²C |
Product Description
10.4 inch F104A02-6T1 lcd panel resolution 1200*2000 LCD Screen
F104A02-6T1 LCD Panel Product details :
| Brand | Innolux |
| Model P/N | F104A02-6T1 |
| Diagonal Size | 10.4" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 1200(RGB)×2000 225PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 135.36(W)×225.6(H) mm |
| Bezel Opening | - |
| Outline Size | 139.36(W)×233.3(H)×0.8(D) mm |
| Brightness | 0 cd/m² |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Glass Depth | 0.40+0.40 mm |
| Display Colors | 16.7M 66% |
| Frequency | 60Hz |
| Weight | - |
| Surface | Without Polarizer |
| Contrast Ratio | 1300:1 (Typ.) (TM) |
| Display Mode | AAS, Normally Black, Transmissive |
| Response Time | 30 (Typ.)(Tr+Td) |
| Transmissivity | 4.2% (Typ.) |
| Lamp Type | No B/L |
| Touch Screen | In-Cell Touch, I²C |
| Application | Pad & Tablet |
| Driver IC | COGSuggest NT36523, HX83102-E/P, FT8205 |
| Environment | Operating Temp.: -10 ~ 60 °C ;Storage Temp.: -20 ~ 70 °C |
F104A02-6T1 LCD Panel Pre-Order Instructions :
Machine Model Compatibility: Before placing your order, please ensure that your machine model is compatible with the HSD024F3N5-A00 LCD screen. If you are unsure about compatibility or have any questions, please don't hesitate to contact us for assistance. We are here to help you make the right selection.
Verify Contact Information: Prior to placing your order, double-check and confirm your phone number, shipping address, and zip code. Accurate and complete contact information is essential to ensure a smooth delivery process and timely receipt of your LCD panel.
By following these pre-order instructions, you can help ensure a successful and hassle-free purchasing experience for the HSD024F3N5-A00 LCD panel. If you require further clarification or assistance, please feel free to reach out to us. We are committed to providing excellent customer service and support. Thank you for considering us for your LCD panel needs.
F104A02-6T1 LCD Panel Shipping and Package :
F104A02-6T1 LCD Panel Shipping Method :
If you choose FedEx as your preferred shipping method, please note that we may use a comparable express service such as DHL, UPS, TNT, or another reputable logistics company to fulfill your order. We strive to ensure that your shipment is handled efficiently and reliably.
If you have a specific preference for a particular logistics provider or require a specific shipping method, please inform us in advance when placing your order. We will do our best to accommodate your request and arrange the shipment accordingly.
F104A02-6T1 LCD Panel Notes after Receiving the Goods :
Record Unpacking with Video: It is crucial to record a video when you unpack the package. This video will serve as valid evidence in case you receive a damaged LCD panel.
Perform Testing Before Installation: Prior to installation, please test the LCD panel to ensure it is functioning properly.
Seek Professional Installation: If you are not experienced in replacing LCD panels, we strongly recommend hiring a professional technician or repair shop to handle the installation.
Handle LCD with Care: LCD panels are fragile and can easily break or malfunction due to installation errors. Please handle the LCD with utmost care during installation.
Video Verification for Claims: We conduct thorough testing (3 times) before shipment. If you encounter any issues and cannot provide the unpacking video as evidence, we may not be able to verify the problem. Please note that we are not liable for installation mistakes.
Following these guidelines will help ensure a smooth and successful experience with your HSD024F3N5-A00 LCD panel.
F104A02-6T1 LCD Panel FAQ :
Q: How to make payment of F104A02-6T1 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of F104A02-6T1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of F104A02-6T1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of F104A02-6T1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
