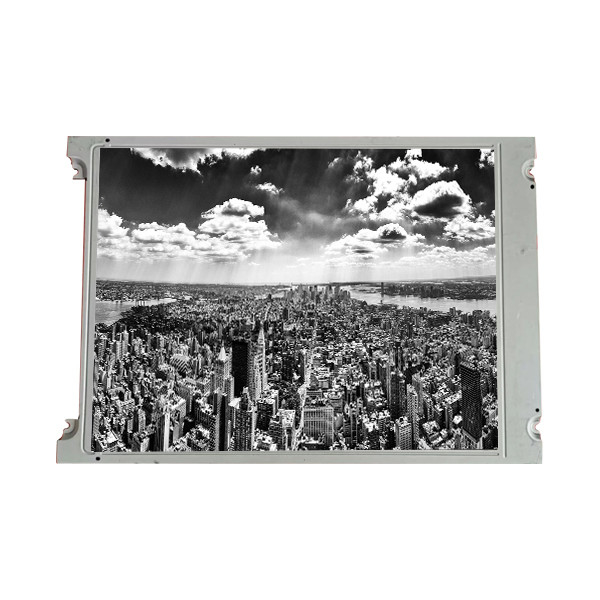

TX31D207VM0BAA 12.1 inch 1024*768 LCD Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | KOE |
| Model Number: | TX31D207VM0BAA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TX31D207VM0BAA | Diagonal Size: | 12.1" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×768, XGA 105PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 245.76(W)×184.32(H) Mm |
| Application: | Industrial、Outdoor High Brightness | Input Voltage: | 3.3V (Typ.) |
Product Description
TX31D207VM0BAA 12.1 inch 1024*768 LCD Screen Panel
TX31D207VM0BAA LCD Panel Product details :
| Brand | KOE |
| Model P/N | TX31D207VM0BAA |
| Diagonal Size | 12.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 105PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 245.76(W)×184.32(H) mm |
| Bezel Opening | 249(W)×187.5(H) mm |
| Outline(mm) | 260.5 × 203× 10.04 (H×V×D) |
| Treatment | - |
| Luminance | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1100 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 262K/16.7M 70%NTSC |
| Backlight | 4 stringsWLED, 100K hours, No Driver |
| Mass | 514g (Typ.) |
| Used for | Industrial,Outdoor High Brightness |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit), 20 pinsConnector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 80 °C Operating Temp.: -40 ~ 80 °C |
| TX31D207VM0BAA 12.1 inch 1024*768 LCD Screen Panel | |
