LM230W02-A2K1 LCD Display 23.0 inch 1920*1200 LCD Panel

Brand Name:	LG
Model Number:	LM230W02-A2K1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM230W02-A2K1

Diagonal Size:

23.0"

Resolution:

1920(RGB)×1200, WUXGA 98PPI

Active Area:

495.36(W)×309.6(H) Mm

Outline (mm):

523.4×335.6×40 (H×V×D)

Display Mode:

IPS, Normally Black, Transmissive

Display Colors:

16.7M 72%NTSC

Lamp Type:

12 PcsCCFL, 50K Hours, With Inverter

Used For:

Desktop Monitor

Signal Type:

Single Link TMDS, Connector30 Pins

Supply Ability:

100000 Unit/Units per Month

Product Description

LM230W02-A2K1 LCD Display 23.0 inch 1920*1200 LCD Panel

LM230W02-A2K1 LCD Panel Product details :

Brand	LG
Model P/N	LM230W02-A2K1
Diagonal Size	23.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1200, WUXGA 98PPI
Pixel Format	RGB Vertical Stripe
Active Area	495.36(W)×309.6(H) mm
Bezel Opening	499.4(W)×313.6(H) mm
Outline (mm)	523.4×335.6×40 (H×V×D)
Treatment	Antiglare (Haze 13%), Hard coating (3H)
Luminance	300 cd/m² (Typ.)
Contrast Ratio	400 : 1 (Typ.) (TM)
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Response	8.5/7.5 (Typ.)(Tr/Td) ms
Good View at	Symmetry
Work Mode	IPS, Normally Black, Transmissive
Color Depth	16.7M 72%NTSC
Backlight	12 pcsCCFL, 50K hours, With Inverter
Mass	2.79/2.93Kgs (Typ./Max.)
Used for	Desktop Monitor
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	Single Link TMDS, Connector30 pins
Voltage Supply	18.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
LM230W02-A2K1 LCD Display 23.0 inch 1920*1200 LCD Panel

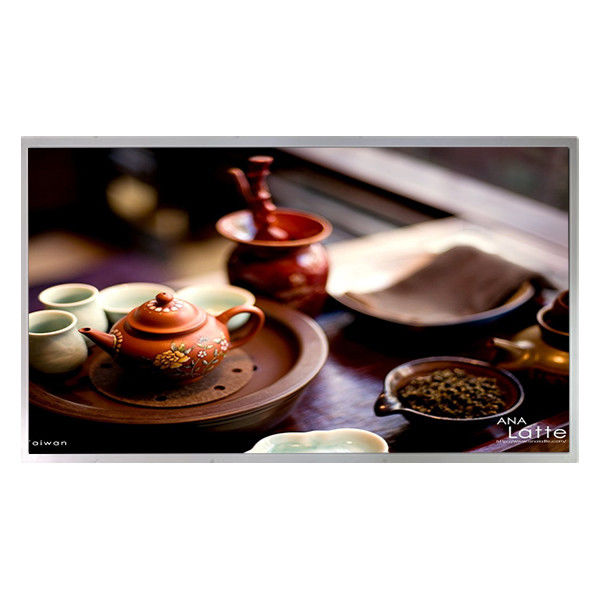

LM230W02-A2K1 LCD Screen Photos :

Please be advised that the photos provided are for illustrative purposes only and depict items similar to the product you are considering. They serve as a general guide to help you visualize the item.

It's important to note that specific markings, labels, colors, etc., shown in the photos may not necessarily reflect the exact details of the item you will receive. If there are particular features or characteristics critical to your needs, we recommend consulting with us prior to making a purchase.

Please understand that the photos do not constitute a comprehensive description of the item, and we encourage you to reach out to us for any clarifications or additional information you may require.

LM230W02-A2K1 LCD Panel Shipping and Package :

LM230W02-A2K1 LCD Screen Shipping Delivery :

Thank you for choosing our LCD screen. We understand the anticipation of receiving your order promptly. It's important to note that while we strive to provide accurate estimates for delivery times, they serve as approximations rather than guarantees.

In the majority of instances, items typically arrive within or before the estimated timeframe. However, once your goods are handed over to the delivery service, their execution and timing are beyond our direct control.

LM230W02-A2K1 LCD Screen Returns:

1. Change of Mind or Incorrect Purchase: If you wish to return the item due to a change of mind or an incorrect purchase, please be aware that you will be responsible for reimbursing any out-of-pocket delivery costs incurred by the seller. These costs will be deducted from your refund.

2. Faulty Item Claims: In cases where you claim a fault with the item but upon inspection, no fault is found, you will be required to reimburse the seller for any out-of-pocket delivery costs incurred. Additionally, if applicable, an inspection/technical services fee may also be charged.

3. Condition of Returns: All returns must be in their original condition. Items that are returned in a condition other than their original state, including but not limited to misuse or damage, will be refused.

LM230W02-A2K1 LCD Panel FAQ :

Q: How do you ship my goods LM230W02-A2K1 ?

A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.

Q: How long is the warranty of LM230W02-A2K1 ?

A: 90days warranty .

Q: Are you manufactory or trade company ?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: Can You declare my order of LCD panel LG LM230W02-A2K1 at a very low value ?

A: Yes , we can . pls inform us before shipping .
