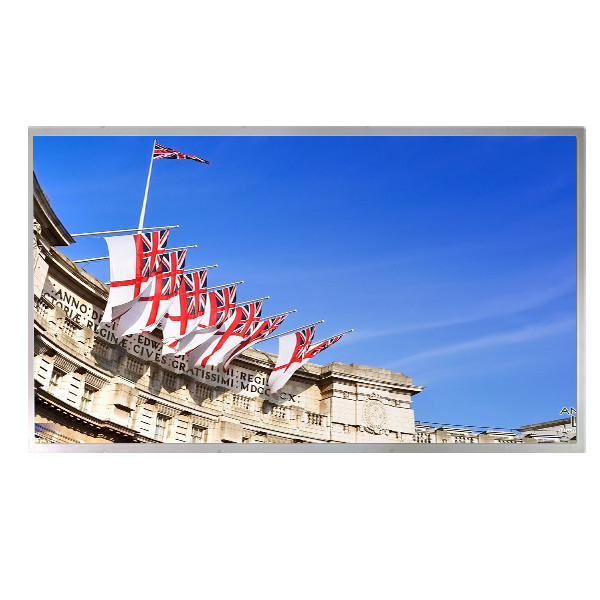

LM225WU1-SSB2 22.5 inch LCD Screen Display

Brand Name:	LG Display
Model Number:	LM225WU1-SSB2
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM225WU1-SSB2

Diagonal Size:

22.5"

Resolution:

1920(RGB)×1200, WUXGA 100PPI

Active Area:

488.16(W)×297.18(H) Mm

Outline Dim.:

496.2(H)×313.9(V)×12.1(D) Mm

Operating Mode:

IPS, Normally Black, Transmissive

Support Color:

16.7M 72%NTSC

Light Source:

WLED [3 Strings], 30K Hours, W/O Driver

Designed For:

Desktop Monitor

Interface Type:

LVDS (2 Ch, 8-bit), 30 PinsConnector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM225WU1-SSB2 22.5 inch LCD Screen Display

LM225WU1-SSB2 LCD Panel Product details :

Brand	LG Display
Model P/N	LM225WU1-SSB2
Diagonal Size	22.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1200, WUXGA 100PPI
Pixel Format	RGB Vertical Stripe
Active Area	488.16(W)×297.18(H) mm
Bezel Opening	-
Outline Dim.	496.2(H)×313.9(V)×12.1(D) mm
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	14 (Typ.)(G to G)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	IPS, Normally Black, Transmissive
Support Color	16.7M 72%NTSC
Light Source	WLED [3 strings], 30K hours, W/O Driver
Weight	1.76Kgs (Typ.)
Designed For	Desktop Monitor
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (2 ch, 8-bit), 30 pinsConnector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C
LM225WU1-SSB2 22.5 inch LCD Screen Display

LM225WU1-SSB2 LCD Screen Payment Terms:

Payment Options: YONGS provides a preferred and secure payment method. We accept payments through YONGS, PayPal, and various other payment terms. Additionally, you have the option to pay via credit card through PayPal for added convenience and security.

Import Duties and Taxes: Please note that products may be subject to import duties, taxes, and other charges. These fees are not included in the product price or shipping charges and are the sole responsibility of the recipient.

Order Cancellation Policy: Orders that remain unpaid beyond 7 business days will be automatically cancelled. We kindly ask our customers to complete their payment within this timeframe to ensure timely processing of their orders.

LM225WU1-SSB2 LCD Panel Shipping and Package :

LM225WU1-SSB2 LCD Screen Product Warranty Information:

Thank you for choosing YONGS products. We are committed to providing high-quality LCD screens to our customers. Please review the following warranty information:

Warranty Period: YONGS offers a warranty period of 120 days against any manufacturer defects. These defects include issues such as fuzziness, image problems, V-lines, or H-lines.

Dead Pixel Policy: Our warranty covers LCD screens with 3-5 dead pixels, in accordance with the ISO 13406-2 norm. If you disagree with this norm, we kindly ask you to refrain from purchasing this product.

We stand behind the quality of our products and aim to ensure your satisfaction with your purchase. Should you encounter any issues within the warranty period, please don't hesitate to contact us for assistance.

Thank you for your trust in YONGS products.

LM225WU1-SSB2 LCD Screen Return Policy:

Thank you for choosing our LM225WU1-SSB2 LCD screen. We strive to ensure your satisfaction with our products. Please review the following return policy guidelines:

Contact Us for Returns: Prior communication is essential before initiating any return process. Please reach out to us in advance to facilitate a smooth return experience.

Obtain Return Merchandise Authorization (RMA#): A Return Merchandise Authorization number (RMA#) is mandatory for all refund or return requests. Items returned without an RMA number will not be accepted.

Dead on Arrival (DOA) or Shipping Damage: If you receive a DOA or a shipping-damaged item, please notify us within 7 days of receipt for prompt assistance.

Restocking Fee: A 20% restocking fee will apply to all non-defective returns, parts that remain unused, parts that are not needed, and incorrectly ordered parts.

Return Shipping Responsibility: Customers are responsible for covering all return shipping charges under all circumstances.

Non-Refundable Shipping Fee: The shipping fee is non-refundable for all return shipments, including defective returns, unnecessary parts, and incorrectly ordered parts.

Wrong Item Ordered: If you mistakenly order the wrong items, you will be responsible for paying the two-way shipping fee.

Proper Packing Instructions: To ensure the safe return of the LCD screen, please utilize our recommended packing methods such as bubble wrap, rope, sponge form, or similar protective measures. Avoid using envelopes or fragile boxes, as LCD screens are delicate and require secure packaging.

LM225WU1-SSB2 LCD Panel FAQ :

Q: How to make payment of LM225WU1-SSB2 ?

A: We accept T/T , Paypal , western union .

Q: Can you give me a discount if I need a large quantity of LM225WU1-SSB2 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of LM225WU1-SSB2 ?

A: Of course!sample order is welcome !

Q: How long will I receive my goods LM225WU1-SSB2 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
