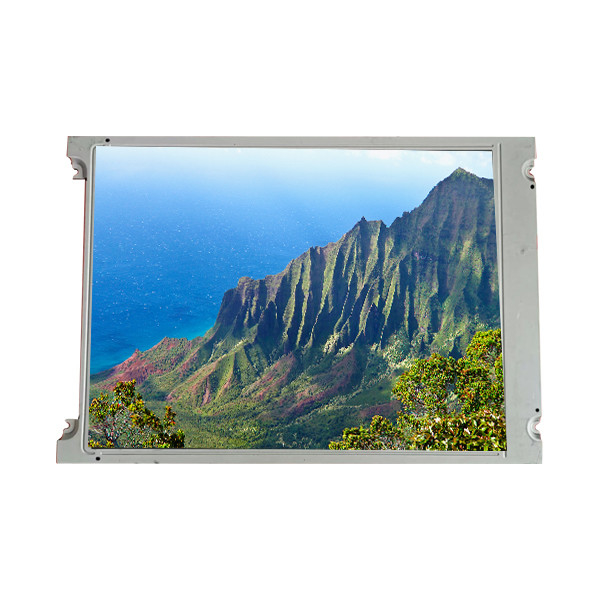

TX31D200VM0BXA 12.3 inch 1280*480 TFT-LCD SCREEN MODULE
Product Details:
| Place of Origin: | China |
| Brand Name: | KOE |
| Model Number: | TX31D200VM0BXA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TX31D200VM0BXA | Diagonal Size: | 12.3" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1280(RGB)×480, DVGA 111PPI |
| Pixel Format: | RGB Vertical Stripe | Contrast Ratio: | 60Hz |
| Used For: | Industrial、Outdoor High Brightness | Input Voltage: | 3.3V (Typ.) |
Product Description
TX31D200VM0BXA 12.3 inch 1280*480 TFT-LCD SCREEN MODULE
TX31D200VM0BXA LCD Panel Product details :
| Brand | KOE |
| Model P/N | TX31D200VM0BXA |
| Diagonal Size | 12.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×480, DVGA 111PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 291.84(W)×109.44(H) mm |
| Bezel Opening | 293.84(W)×111.44(H) mm |
| Outline Size | 341(W)×146(H)×14.35(D) mm |
| Brightness | 850 cd/m² (Typ.) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 262K 100%sRGB |
| Frequency | 60Hz |
| Weight | 792g |
| Surface | Hard coating (7H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Display Mode | IPS, Normally Black, Transmissive |
| Response Time | 25 (Typ.)(Tr+Td) |
| Lamp Type | WLED , 70K hours , With LED Driver |
| Touch Screen | PCAP, I²C |
| Application | Industrial,Outdoor High Brightness |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 80 °C ;Storage Temp.: -30 ~ 80 °C; Vibration Level: 5.0G (49.0 m/s²) |
| TX31D200VM0BXA 12.3 inch 1280*480 TFT-LCD SCREEN MODULE | |
TX31D200VM0BXA LCD Panel Installation Friendly Reminder:
Please note that an installation guide is not included. We are not liable for any damage resulting from the installation of this accessory. Ensure that you are proficient in installation procedures before placing a bid.
Proper installation of this accessory requires special skills and techniques. We highly recommend seeking the assistance of a qualified technician for installation.
Prior to purchase, please familiarize yourself with the disassembly procedure.
We accept returns only for items in their original condition and strongly advise customers to test the item before proceeding with installation.
Regarding TX31D200VM0BXA LCD Panel and Our Services:
With over 15 years of experience, we have served more than 10,000 clients across 100 countries, offering professional and responsive service to meet our clients' needs.
We specialize in providing a wide range of LCD panels and touch screens, serving as agents for several reputable LCD brands including Kyocera, KOE, and Nanya. We maintain stocks of Sharp, NEC, Hitachi, AUO, Kyocera, and KOE products that can be shipped within one day.
Our products are known for their high quality and competitive pricing. If you have any requirements or inquiries, please feel free to contact us at any time. We are committed to providing you with the best products and services to meet your needs. Thank you for choosing us!
TX31D200VM0BXA LCD Panel Shipping and Package :
TX31D200VM0BXA LCD Panel Shipping Notice :
Import duties, taxes, and charges are not included in the item price or shipping charges.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
We strive to offer you the most reliable and affordable shipping service. However, international delivery times can vary significantly due to factors such as the courier company and local customs procedures. Therefore, shipping times may be longer than usual. We appreciate your patience and understanding during this process.
TX31D200VM0BXA LCD Panel FAQ :
Q: Can You declare my order of TX31D200VM0BXA to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of TX31D200VM0BXA via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How to make payment of TX31D200VM0BXA ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of TX31D200VM0BXA ?
A: Of course!If you make a large order, we will give you a discount.
