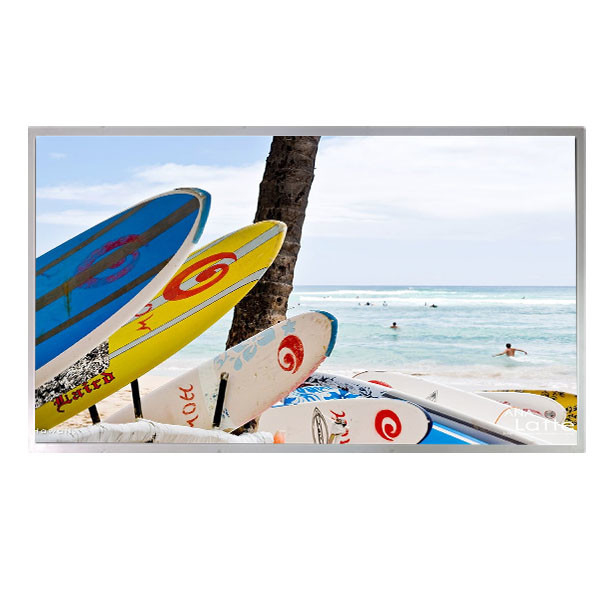

LM220WE1-TLD4 22.0 inch 1680*1050 lcd display panel
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LM220WE1-TLD4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM220WE1-TLD4 | Diagonal Size: | 22.0" |
|---|---|---|---|
| Resolution: | 1680(RGB)×1050, WSXGA+ 90PPI | Active Area: | 473.76(W)×296.1(H) Mm |
| Outline Size: | 493.7(W)×320.1(H)×17(D) | Display Mode: | TN, Normally White, Transmissive |
| Support Color: | 16.7M | Light Source: | 4 Pcs CCFL , 50K Hours , No Driver |
| Designed For: | Desktop Monitor | Interface Type: | LVDS (2 Ch, 8-bit), 30 Pins Connector |
Product Description
LM220WE1-TLD4 22.0 inch 1680*1050 lcd display panel
LM220WE1-TLD4 LCD Panel Product details :
| Brand | LG |
| Model P/N | LM220WE1-TLD4 |
| Diagonal Size | 22.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1680(RGB)×1050, WSXGA+ 90PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 473.76(W)×296.1(H) mm |
| Bezel Opening | 477.7(W)×300.1(H) mm |
| Outline(mm) | 493.7(W)×320.1(H)×17(D) |
| Luminance | 300 (Typ.)(cd/m²) |
| Viewing Angle | 80/80/75/85 (Typ.)(CR≥10) |
| Good View at | 6 o'clock |
| Color Depth | 16.7M |
| Mass | 2.80/2.95Kgs (Typ./Max.) |
| Refresh Rate | 60Hz |
| Treatment | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Work Mode | TN, Normally White, Transmissive |
| Response | 1.3/3.7 (Typ.)(Tr/Td) ms |
| Backlight | 4 pcs CCFL , 50K hours , No Driver |
| Used for | Desktop Monitor |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit), 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LM220WE1-TLD4 22.0 inch 1680*1050 lcd display panel | |
LM220WE1-TLD4 LCD Screen Notice:
Before placing your order, we kindly request you to carefully review and confirm whether the screen size, resolution, backlight type, interface type, and location are compatible with your laptop. If you are unsure or have any questions, please feel free to reach out to us for assistance.
To ensure prompt delivery, please provide us with your accurate contact details.
If you wish for us to declare a lower value to potentially reduce customs taxes, please inform us accordingly. However, please note that by doing so, you accept full responsibility for any associated risks.
LM220WE1-TLD4 LCD Panel Shipping and Package :
LM220WE1-TLD4 LCD Screen International Orders:
The buyer assumes responsibility for all customs fees and import taxes associated with international orders.
International orders may experience extended delivery times due to customs processing delays.
When shipping to Japan or South Korea via FedEx or DHL, the actual price of the item will be declared. Additionally, recipients in South Korea must provide a customs clearance serial number, for instance: "P123123456789". Please ensure to furnish us with the customs clearance serial number.
LM220WE1-TLD4 LCD Screen About Item and Shipping Price:
For products that are seldom or never sold, the listed item price may not be accurate. Please contact us for an updated and precise quote.
Shipping prices to remote countries or islands may vary significantly. Kindly reach out to us for an accurate shipping quote tailored to your location.
LM220WE1-TLD4 LCD Panel FAQ :
Q: How can I trace my order of LM220WE1-TLD4 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of LM220WE1-TLD4 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of LM220WE1-TLD4 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of LM220WE1-TLD4 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
