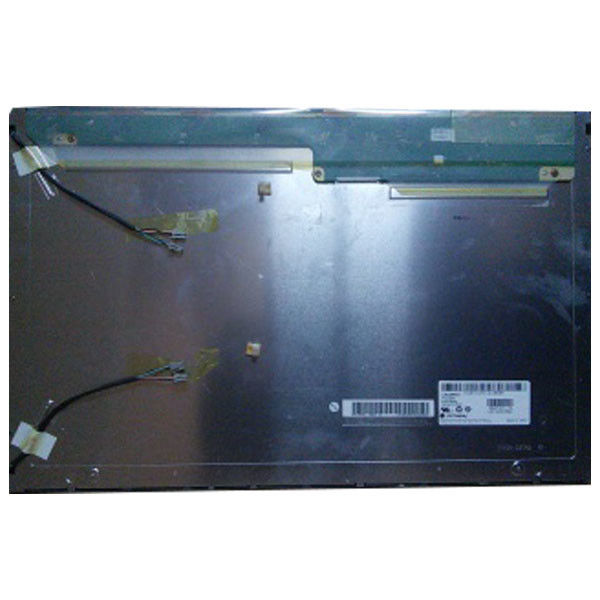

LM220WE1-TLD1 22.0 inch 1680*1050 LCD Screen Module

Brand Name:	LG
Model Number:	LM220WE1-TLD1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM220WE1-TLD1

Diagonal Size:

22.0"

Resolution:

1680(RGB)×1050, WSXGA+ 90PPI

Active Area:

473.76(W)×296.1(H) Mm

Outline Size:

493.7(W)×320.1(H)×17(D) Mm

Display Mode:

TN, Normally White, Transmissive

Support Color:

16.7M 71%NTSC

Light Source:

4 PcsCCFL, 50K Hours, Without Driver

Designed For:

Desktop Monitor

Interface Type:

LVDS (2 Ch, 8-bit), 30 PinsConnector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM220WE1-TLD1 22.0 inch 1680*1050 LCD Screen Module

LM220WE1-TLD1 LCD Panel Product details :

Brand	LG
Model P/N	LM220WE1-TLD1
Diagonal Size	22.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1680(RGB)×1050, WSXGA+ 90PPI
Pixel Format	RGB Vertical Stripe
Active Area	473.76(W)×296.1(H) mm
Bezel Opening	477.7(W)×300.1(H) mm
Outline Size	493.7(W)×320.1(H)×17(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	300 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	80/80/75/85 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	1.3/3.7 (Typ.)(Tr/Td)
Display Colors	16.7M 71%NTSC
Lamp Type	4 pcsCCFL, 50K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	2.80/2.95Kgs (Typ./Max.)
Application	Desktop Monitor
Signal Interface	LVDS (2 ch, 8-bit), 30 pinsConnector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
LM220WE1-TLD1 22.0 inch 1680*1050 LCD Screen Module

LM220WE1-TLD1 LCD Screen Notice:

Before placing your order, we kindly request you to carefully review and confirm whether the screen size, resolution, backlight type, interface type, and location are compatible with your laptop. If you are unsure or have any questions, please feel free to reach out to us for assistance.

To ensure prompt delivery, please provide us with your accurate contact details.

If you wish for us to declare a lower value to potentially reduce customs taxes, please inform us accordingly. However, please note that by doing so, you accept full responsibility for any associated risks.

LM220WE1-TLD1 LCD Panel Shipping and Package :

LM220WE1-TLD1 22.0 inch 1680*1050 LCD Screen Module 0

LM220WE1-TLD1 LCD Screen International Orders:

The buyer assumes responsibility for all customs fees and import taxes associated with international orders.

International orders may experience extended delivery times due to customs processing delays.

When shipping to Japan or South Korea via FedEx or DHL, the actual price of the item will be declared. Additionally, recipients in South Korea must provide a customs clearance serial number, for instance: "P123123456789". Please ensure to furnish us with the customs clearance serial number.

LM220WE1-TLD1 LCD Screen About Item and Shipping Price:

For products that are seldom or never sold, the listed item price may not be accurate. Please contact us for an updated and precise quote.

Shipping prices to remote countries or islands may vary significantly. Kindly reach out to us for an accurate shipping quote tailored to your location.

LM220WE1-TLD1 LCD Panel FAQ :

Q: How can I trace my order of LM220WE1-TLD1 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can you give me a discount if I need a large quantity of LM220WE1-TLD1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of LM220WE1-TLD1 ?

A: Of course!sample order is welcome !

Q: How long is the warranty ?

A: We offer 90 days warranty .
