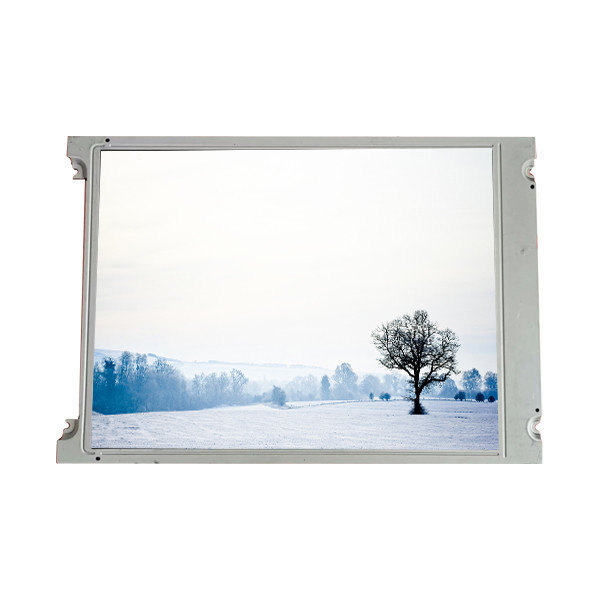

TX27D201VM0AAA 10.6 inch 1280*768 TFT-LCD SCREEN PANEL

Brand Name:	KOE
Model Number:	TX27D201VM0AAA
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TX27D201VM0AAA

Diagonal Size:

10.6"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1280(RGB)×768, WXGA 140PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

231.36(W)×138.816(H) Mm

Luminance:

1000 Cd/m² (Typ.)

Contrast Ratio:

1000:1 (Typ.) (TM)

Used For:

Industrial

Power Supply:

3.3V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

TX27D201VM0AAA 10.6 inch 1280*768 TFT-LCD SCREEN PANEL

TX27D201VM0AAA LCD Panel Product details :

Brand	KOE
Model P/N	TX27D201VM0AAA
Diagonal Size	10.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×768, WXGA 140PPI
Pixel Format	RGB Vertical Stripe
Active Area	231.36(W)×138.816(H) mm
Bezel Opening	235.4(W)×142.8(H) mm
Outline(mm)	250 × 157× 9.4 (H×V×D)
Treatment	Glare (Haze 0%)
Luminance	1000 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Response	24 (Typ.)(Tr+Td) ms
Good View at	Symmetry
Work Mode	IPS, Normally Black, Transmissive
Color Depth	262K/16.7M 50%NTSC
Backlight	4 stringsWLED, 100K hours, No Driver
Mass	430g (Typ.)
Used for	Industrial
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (1 ch, 6/8-bit), 20 pinsConnector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -40 ~ 90 °C Operating Temp.: -40 ~ 85 °C ; Vibration Level: 5.0G (49.0 m/s²)
TX27D201VM0AAA 10.6 inch 1280*768 TFT-LCD SCREEN PANEL

TX27D201VM0AAA LCD Panel Installation Friendly Reminder:

Please note that an installation guide is not included. We are not liable for any damage resulting from the installation of this accessory. Ensure that you are proficient in installation procedures before placing a bid.

Proper installation of this accessory requires special skills and techniques. We highly recommend seeking the assistance of a qualified technician for installation.

Prior to purchase, please familiarize yourself with the disassembly procedure.

We accept returns only for items in their original condition and strongly advise customers to test the item before proceeding with installation.

Regarding TX27D201VM0AAA LCD Panel and Our Services:

With over 15 years of experience, we have served more than 10,000 clients across 100 countries, offering professional and responsive service to meet our clients' needs.

We specialize in providing a wide range of LCD panels and touch screens, serving as agents for several reputable LCD brands including Kyocera, KOE, and Nanya. We maintain stocks of Sharp, NEC, Hitachi, AUO, Kyocera, and KOE products that can be shipped within one day.

Our products are known for their high quality and competitive pricing. If you have any requirements or inquiries, please feel free to contact us at any time. We are committed to providing you with the best products and services to meet your needs. Thank you for choosing us!

TX27D201VM0AAA LCD Panel Shipping and Package :

TX27D201VM0AAA LCD Panel Shipping Notice :

Import duties, taxes, and charges are not included in the item price or shipping charges.

Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.

We strive to offer you the most reliable and affordable shipping service. However, international delivery times can vary significantly due to factors such as the courier company and local customs procedures. Therefore, shipping times may be longer than usual. We appreciate your patience and understanding during this process.

TX27D201VM0AAA LCD Panel FAQ :

Q: When would you ship,IF I order TX27D201VM0AAA now?

A: The order are shipped within 1-2 working days after received the payment.

Q: Do you accept the sample order?

A: Yes , sample order is welcome.

Q: How to order if I don't know the lcd panel number ?

A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.

Q: Can you declared low value for my order when shipping?

A: Yes, We can do it for you if you need.
