Industrial LCD Panel Display

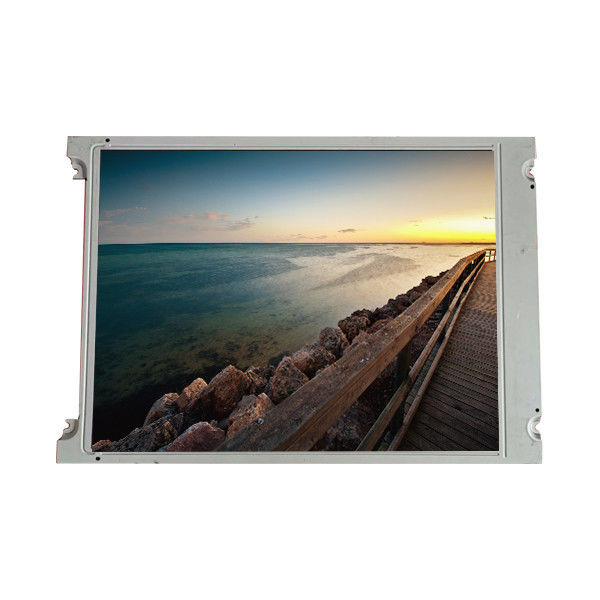

TX27D200VM0AVB 10.6 inch 1280*768 TFT-LCD SCREEN PANEL

All Category

Floor Standing Digital Signage

TX27D200VM0AVB 10.6 inch 1280*768 TFT-LCD SCREEN PANEL

Brand Name:	KOE
Model Number:	TX27D200VM0AVB
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TX27D200VM0AVB

Diagonal Size:

10.6"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1280(RGB)×768, WXGA 140PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

231.36(W)×138.816(H) Mm

Luminance:

800 Cd/m² (Typ.)

Contrast Ratio:

1000:1 (Typ.) (TM)

Used For:

Industrial

Power Supply:

3.3V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

TX27D200VM0AVB 10.6 inch 1280*768 TFT-LCD SCREEN PANEL

TX27D200VM0AVB LCD Panel Product details :

Brand	KOE
Model P/N	TX27D200VM0AVB
Diagonal Size	10.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×768, WXGA 140PPI
Pixel Format	RGB Vertical Stripe
Active Area	231.36(W)×138.816(H) mm
Bezel Opening	232.4(W)×139.8(H) mm
Outline Dim.	250(W)×157(H)×15.4(D) mm
Luminance	800 cd/m² (Typ.)
View Direction	Symmetry
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Support Color	262K/16.7M 50% NTSC
Weight	-
Frame Rate	60Hz
Treatment	Hard coating (7H)
Contrast Ratio	1000:1 (Typ.) (TM)
Response Time	24 (Typ.)(Tr+Td)
Operating Mode	IPS, Normally Black, Transmissive
Light Source	WLED [4 strings] , 100K hours , With LED Driver
Designed For	Industrial
Touch Panel	PCAP, USB
Interface Type	LVDS (1 ch, 6/8-bit)20 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -30 ~ 80 °C; Storage Temperature: -30 ~ 80 °C; Vibration Level: 5.0G (49.0 m/s²)
TX27D200VM0AVB 10.6 inch 1280*768 TFT-LCD SCREEN PANEL

TX27D200VM0AVB LCD Panel Installation Friendly Reminder:

Please note that an installation guide is not included. We are not liable for any damage resulting from the installation of this accessory. Ensure that you are proficient in installation procedures before placing a bid.

Proper installation of this accessory requires special skills and techniques. We highly recommend seeking the assistance of a qualified technician for installation.

Prior to purchase, please familiarize yourself with the disassembly procedure.

We accept returns only for items in their original condition and strongly advise customers to test the item before proceeding with installation.

Regarding TX27D200VM0AVB LCD Panel and Our Services:

With over 15 years of experience, we have served more than 10,000 clients across 100 countries, offering professional and responsive service to meet our clients' needs.

We specialize in providing a wide range of LCD panels and touch screens, serving as agents for several reputable LCD brands including Kyocera, KOE, and Nanya. We maintain stocks of Sharp, NEC, Hitachi, AUO, Kyocera, and KOE products that can be shipped within one day.

Our products are known for their high quality and competitive pricing. If you have any requirements or inquiries, please feel free to contact us at any time. We are committed to providing you with the best products and services to meet your needs. Thank you for choosing us!

TX27D200VM0AVB LCD Panel Shipping and Package :

TX27D200VM0AVB LCD Panel Shipping Notice :

Import duties, taxes, and charges are not included in the item price or shipping charges.

Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.

We strive to offer you the most reliable and affordable shipping service. However, international delivery times can vary significantly due to factors such as the courier company and local customs procedures. Therefore, shipping times may be longer than usual. We appreciate your patience and understanding during this process.

TX27D200VM0AVB LCD Panel FAQ :

Q: What happen if the lcd panel TX27D200VM0AVB I received can't work ?

A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .

Q: Why big order delivery time are long?

A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!

Q:Can you declared low value for my order when shipping?

A:Yes, We can do it for you if you need.
