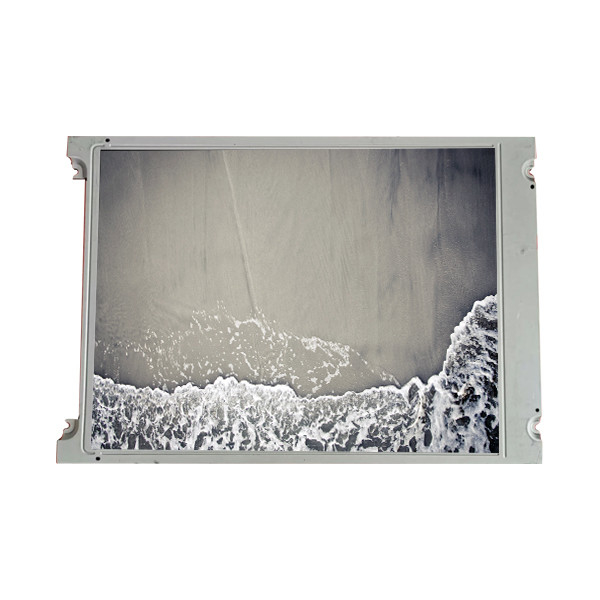

TX27D200VM0AAA 10.6 inch 1280*768 TFT-LCD SCREEN PANEL
Product Details:
| Place of Origin: | China |
| Brand Name: | KOE |
| Model Number: | TX27D200VM0AAA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TX27D200VM0AAA | Diagonal Size: | 10.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1280(RGB)×768, WXGA 140PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 231.36(W)×138.816(H) Mm |
| Luminance: | 1000 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Used For: | Industrial | Power Supply: | 3.3V (Typ.) |
Product Description
TX27D200VM0AAA 10.6 inch 1280*768 TFT-LCD SCREEN PANEL
TX27D200VM0AAA LCD Panel Product details :
| Brand | KOE |
| Model P/N | TX27D200VM0AAA |
| Diagonal Size | 10.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×768, WXGA 140PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 231.36(W)×138.816(H) mm |
| Bezel Opening | 235.4(W)×142.8(H) mm |
| Outline Size | 250(W)×157(H)×9.4(D) mm |
| Treatment | - |
| Luminance | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 24 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 262K/16.7M 50%NTSC |
| Backlight | 4 stringsWLED, 100K hours, No Driver |
| Mass | 430g (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit), 20 pinsConnector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 90 °C Operating Temp.: -40 ~ 85 °C ; Vibration Level: 5.0G (49.0 m/s²) |
| TX27D200VM0AAA 10.6 inch 1280*768 TFT-LCD SCREEN PANEL | |
TX27D200VM0AAA LCD Panel Installation Friendly Reminder:
Please note that an installation guide is not included. We are not liable for any damage resulting from the installation of this accessory. Ensure that you are proficient in installation procedures before placing a bid.
Proper installation of this accessory requires special skills and techniques. We highly recommend seeking the assistance of a qualified technician for installation.
Prior to purchase, please familiarize yourself with the disassembly procedure.
We accept returns only for items in their original condition and strongly advise customers to test the item before proceeding with installation.
Regarding TX27D200VM0AAA LCD Panel and Our Services:
With over 15 years of experience, we have served more than 10,000 clients across 100 countries, offering professional and responsive service to meet our clients' needs.
We specialize in providing a wide range of LCD panels and touch screens, serving as agents for several reputable LCD brands including Kyocera, KOE, and Nanya. We maintain stocks of Sharp, NEC, Hitachi, AUO, Kyocera, and KOE products that can be shipped within one day.
Our products are known for their high quality and competitive pricing. If you have any requirements or inquiries, please feel free to contact us at any time. We are committed to providing you with the best products and services to meet your needs. Thank you for choosing us!
TX27D200VM0AAA LCD Panel Shipping and Package :
TX27D200VM0AAA LCD Panel Shipping Notice :
Import duties, taxes, and charges are not included in the item price or shipping charges.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
We strive to offer you the most reliable and affordable shipping service. However, international delivery times can vary significantly due to factors such as the courier company and local customs procedures. Therefore, shipping times may be longer than usual. We appreciate your patience and understanding during this process.
TX27D200VM0AAA LCD Panel FAQ :
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel TX27D200VM0AAA I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
