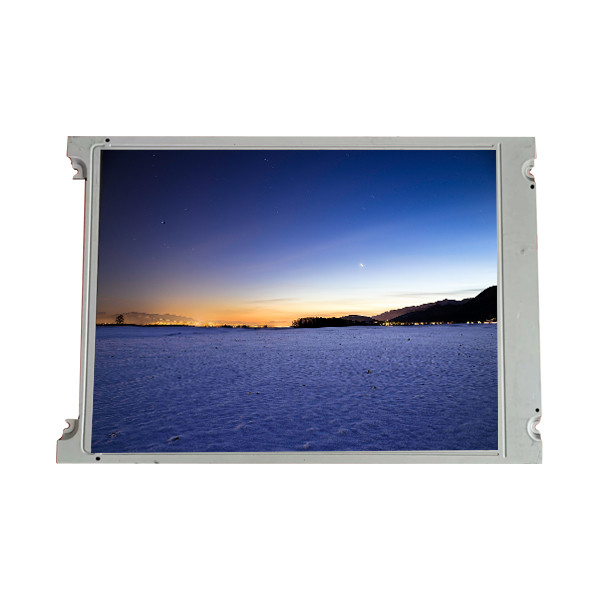

TX26D202VM0BAA 10.1 inch 1920*1200 TFT-LCD SCREEN For KOE
Product Details:
| Place of Origin: | China |
| Brand Name: | KOE |
| Model Number: | TX26D202VM0BAA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TX26D202VM0BAA | Diagonal Size: | 10.1" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1200, WUXGA 224PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 217.44(W)×135.9(H) Mm |
| Luminance: | 800 Cd/m² (Typ.) | Contrast Ratio: | 800 : 1 (Typ.) (TM) |
| Used For: | Industrial、Outdoor High Brightness | Power Supply: | 3.3V (Typ.) |
Product Description
TX26D202VM0BAA 10.1 inch 1920*1200 TFT-LCD SCREEN For KOE
TX26D202VM0BAA LCD Panel Product details :
| Brand | KOE |
| Model P/N | TX26D202VM0BAA |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1200, WUXGA 224PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 217.44(W)×135.9(H) mm |
| Bezel Opening | 219.44(W)×137.90(H) mm |
| Outline Dim. | 232.1(H)×153.2(V)×7.62(D) mm |
| Treatment | - |
| Luminance | 800 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Support Color | 16.7M 55%NTSC |
| Light Source | WLED, 40K hours, With LED Driver |
| Weight | 284g |
| Designed For | Industrial,Outdoor High Brightness |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit), 50 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| TX26D202VM0BAA 10.1 inch 1920*1200 TFT-LCD SCREEN For KOE | |
TX26D202VM0BAA LCD Panel Installation Friendly Reminder:
Please note that an installation guide is not included. We are not liable for any damage resulting from the installation of this accessory. Ensure that you are proficient in installation procedures before placing a bid.
Proper installation of this accessory requires special skills and techniques. We highly recommend seeking the assistance of a qualified technician for installation.
Prior to purchase, please familiarize yourself with the disassembly procedure.
We accept returns only for items in their original condition and strongly advise customers to test the item before proceeding with installation.
Regarding TX26D202VM0BAA LCD Panel and Our Services:
With over 15 years of experience, we have served more than 10,000 clients across 100 countries, offering professional and responsive service to meet our clients' needs.
We specialize in providing a wide range of LCD panels and touch screens, serving as agents for several reputable LCD brands including Kyocera, KOE, and Nanya. We maintain stocks of Sharp, NEC, Hitachi, AUO, Kyocera, and KOE products that can be shipped within one day.
Our products are known for their high quality and competitive pricing. If you have any requirements or inquiries, please feel free to contact us at any time. We are committed to providing you with the best products and services to meet your needs. Thank you for choosing us!
TX26D202VM0BAA LCD Panel Shipping and Package :
TX26D202VM0BAA LCD Panel Shipping Notice :
Import duties, taxes, and charges are not included in the item price or shipping charges.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
We strive to offer you the most reliable and affordable shipping service. However, international delivery times can vary significantly due to factors such as the courier company and local customs procedures. Therefore, shipping times may be longer than usual. We appreciate your patience and understanding during this process.
TX26D202VM0BAA LCD Panel FAQ :
Q: What happen if the lcd panel TX26D202VM0BAA I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Are you manufactory or trade company?
A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: When will my order TX26D202VM0BAA ship?
A: The order are shipped within 1-2 working days after received the payment.
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
