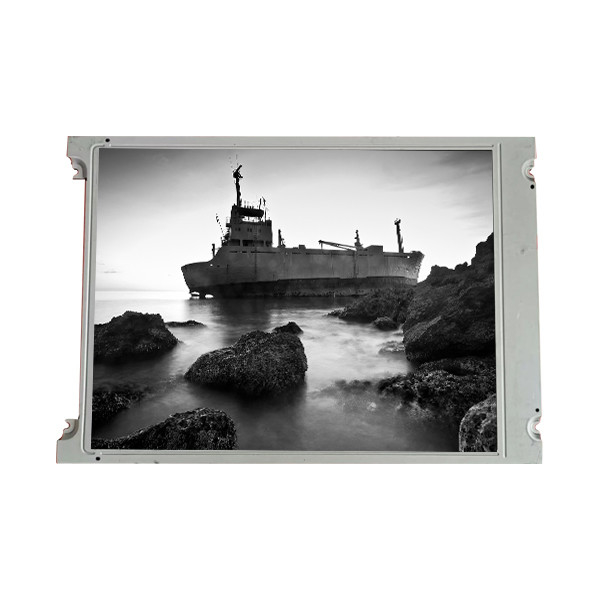

TX26D200VM2BVA 10.4 inch 800*600 TFT-LCD SCREEN For Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | KOE |
| Model Number: | TX26D200VM2BVA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TX26D200VM2BVA | Diagonal Size: | 10.4" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×600, SVGA 96PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 211.2(W)×158.4(H) Mm |
| Luminance: | 1300 Cd/m² (Typ.) | Contrast Ratio: | 800:1 (Typ.) (TM) |
| Used For: | Industrial、Outdoor High Brightness | Voltage Supply: | 3.3V (Typ.) |
Product Description
TX26D200VM2BVA 10.4 inch 800*600 TFT-LCD SCREEN For Industrial
TX26D200VM2BVA LCD Panel Product details :
| Brand | KOE |
| Model P/N | TX26D200VM2BVA |
| Diagonal Size | 10.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA 96PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 211.2(W)×158.4(H) mm |
| Bezel Opening | 213.2(W)×160.4(H) mm |
| Outline (mm) | 259.2×206.4×13.48 (H×V×D) |
| Treatment | Hard coating (7H) |
| Luminance | 1300 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 20 (Typ.)(Tr+Td) ms |
| Good View at | - |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M 50%NTSC |
| Backlight | WLED, 70K hours, With LED Driver |
| Mass | 638g (Typ.) |
| Used for | Industrial,Outdoor High Brightness |
| Refresh Rate | 60Hz |
| Touchscreen | PCAP, USB |
| Signal Type | LVDS (1 ch, 8-bit), Connector20 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| TX26D200VM2BVA 10.4 inch 800*600 TFT-LCD SCREEN For Industrial | |
