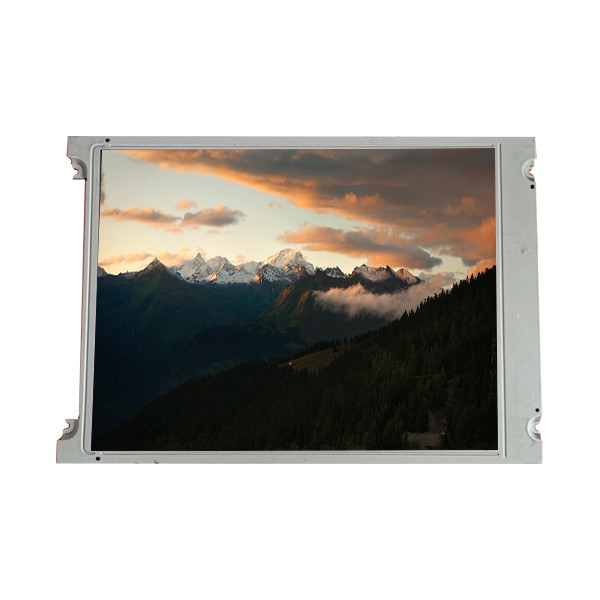

TX26D25VM2BAA 10.2 inch 800*256 TFT-LCD SCREEN For Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | KOE |
| Model Number: | TX26D25VM2BAA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TX26D25VM2BAA | Diagonal Size: | 10.2" (Native Bar) |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×256, HSVGA 82PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 246(W)×78.72(H) Mm |
| Luminance: | 350 Cd/m² (Typ.) | Contrast Ratio: | 500 : 1 (Typ.) (TM) |
| Used For: | Industrial、Stretched Bar LCD | Voltage Supply: | 3.3V (Typ.) |
Product Description
TX26D25VM2BAA 10.2 inch 800*256 TFT-LCD SCREEN For Industrial
TX26D25VM2BAA LCD Panel Product details :
| Brand | KOE |
| Model P/N | TX26D25VM2BAA |
| Diagonal Size | 10.2" (Native bar) |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×256, HSVGA 82PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 246(W)×78.72(H) mm |
| Bezel Opening | 250.0(W)×82.7(H) mm |
| Outline(mm) | 260.2 × 96.2× 11.55 (H×V×D) |
| Treatment | - |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 50/50/45/50 (Typ.)(CR≥10) |
| Response | 45 (Typ.)(Tr+Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 56%NTSC |
| Backlight | 3S13PWLED, 40K hours, No Driver |
| Mass | 240g (Typ.) |
| Used for | Industrial,Stretched Bar LCD |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | CMOS (1 ch, 6-bit), 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| TX26D25VM2BAA 10.2 inch 800*256 TFT-LCD SCREEN For Industrial | |
TX26D25VM2BAA LCD Panel Installation Friendly Reminder:
Please note that an installation guide is not included. We are not liable for any damage resulting from the installation of this accessory. Ensure that you are proficient in installation procedures before placing a bid.
Proper installation of this accessory requires special skills and techniques. We highly recommend seeking the assistance of a qualified technician for installation.
Prior to purchase, please familiarize yourself with the disassembly procedure.
We accept returns only for items in their original condition and strongly advise customers to test the item before proceeding with installation.
Regarding TX26D25VM2BAA LCD Panel and Our Services:
With over 15 years of experience, we have served more than 10,000 clients across 100 countries, offering professional and responsive service to meet our clients' needs.
We specialize in providing a wide range of LCD panels and touch screens, serving as agents for several reputable LCD brands including Kyocera, KOE, and Nanya. We maintain stocks of Sharp, NEC, Hitachi, AUO, Kyocera, and KOE products that can be shipped within one day.
Our products are known for their high quality and competitive pricing. If you have any requirements or inquiries, please feel free to contact us at any time. We are committed to providing you with the best products and services to meet your needs. Thank you for choosing us!
TX26D25VM2BAA LCD Panel Shipping and Package :
TX26D25VM2BAA LCD Panel Shipping Notice :
Import duties, taxes, and charges are not included in the item price or shipping charges.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
We strive to offer you the most reliable and affordable shipping service. However, international delivery times can vary significantly due to factors such as the courier company and local customs procedures. Therefore, shipping times may be longer than usual. We appreciate your patience and understanding during this process.
TX26D25VM2BAA LCD Panel FAQ :
Q: What is the different between original lcd panel and compatible lcd display?
A: Function is the same , Of course the original lcd’s quality and lifetime better than that compatible lcd .
Q: Do you accept the TX26D25VM2BAA sample order?
A: Yes , sample order is welcome.
Q: How to order if I don’t know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
