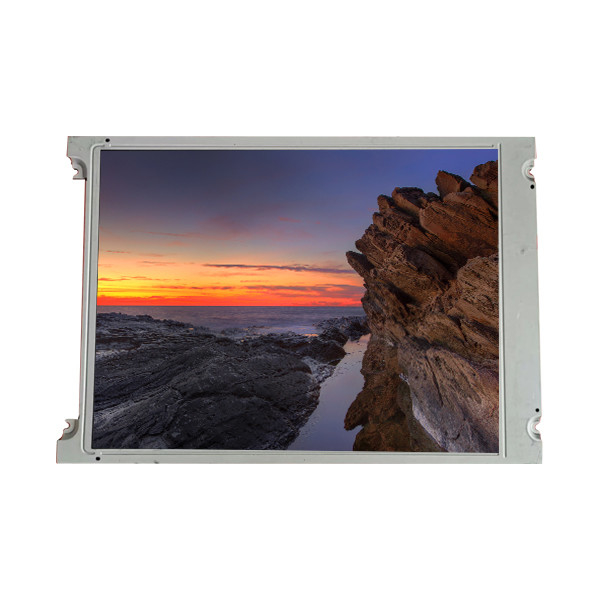

TX23D203VM0BPA 9.0 inch 800*480 LCD SCREEN PANEL LCD DISPLAY
Product Details:
| Place of Origin: | China |
| Brand Name: | KOE |
| Model Number: | TX23D203VM0BPA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TX23D203VM0BPA | Diagonal Size: | 9.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA 103PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 196.8(W)×118.08(H) Mm |
| Luminance: | 900 Cd/m² (Typ.) | Contrast Ratio: | 1000 : 1 (Typ.) (TM) |
| Used For: | Industrial、Outdoor High Brightness | Voltage Supply: | 3.3V (Typ.) |
Product Description
TX23D203VM0BPA 9.0 inch 800*480 LCD SCREEN PANEL LCD DISPLAY
TX23D203VM0BPA LCD Panel Product details :
| Brand | KOE |
| Model P/N | TX23D203VM0BPA |
| Diagonal Size | 9.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 103PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 196.8(W)×118.08(H) mm |
| Bezel Opening | 200(W)×121.28(H) mm |
| Outline Size | 218(W)×135(H)×13.15(D) mm |
| Brightness | 900 cd/m² (Typ.) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 262K/16.7M 72%NTSC |
| Frequency | 60Hz |
| Weight | 415g (Typ.) |
| Surface | Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Display Mode | IPS, Normally Black, Transmissive |
| Response Time | 40 (Typ.)(Tr+Td) |
| Lamp Type | WLED , 70K hours , With LED Driver |
| Touch Screen | 4-wire Resistive Touch |
| Application | Industrial,Outdoor High Brightness |
| Signal Interface | LVDS (1 ch, 6/8-bit), 20 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C; Vibration Level: 2.0G (19.6 m/s²) |
| TX23D203VM0BPA 9.0 inch 800*480 LCD SCREEN PANEL LCD DISPLAY | |
TX23D203VM0BPA LCD Panel Installation Friendly Reminder:
Please note that an installation guide is not included. We are not liable for any damage resulting from the installation of this accessory. Ensure that you are proficient in installation procedures before placing a bid.
Proper installation of this accessory requires special skills and techniques. We highly recommend seeking the assistance of a qualified technician for installation.
Prior to purchase, please familiarize yourself with the disassembly procedure.
We accept returns only for items in their original condition and strongly advise customers to test the item before proceeding with installation.
Regarding TX23D203VM0BPA LCD Panel and Our Services:
With over 15 years of experience, we have served more than 10,000 clients across 100 countries, offering professional and responsive service to meet our clients' needs.
We specialize in providing a wide range of LCD panels and touch screens, serving as agents for several reputable LCD brands including Kyocera, KOE, and Nanya. We maintain stocks of Sharp, NEC, Hitachi, AUO, Kyocera, and KOE products that can be shipped within one day.
Our products are known for their high quality and competitive pricing. If you have any requirements or inquiries, please feel free to contact us at any time. We are committed to providing you with the best products and services to meet your needs. Thank you for choosing us!
TX23D203VM0BPA LCD Panel Shipping and Package :
TX23D203VM0BPA LCD Panel Shipping Notice :
Import duties, taxes, and charges are not included in the item price or shipping charges.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
We strive to offer you the most reliable and affordable shipping service. However, international delivery times can vary significantly due to factors such as the courier company and local customs procedures. Therefore, shipping times may be longer than usual. We appreciate your patience and understanding during this process.
TX23D203VM0BPA LCD Panel FAQ :
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel TX23D203VM0BPA I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Are you manufactory or trade company?
A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: When will my order TX23D203VM0BPA ship?
A: The order are shipped within 1-2 working days after received the payment.
