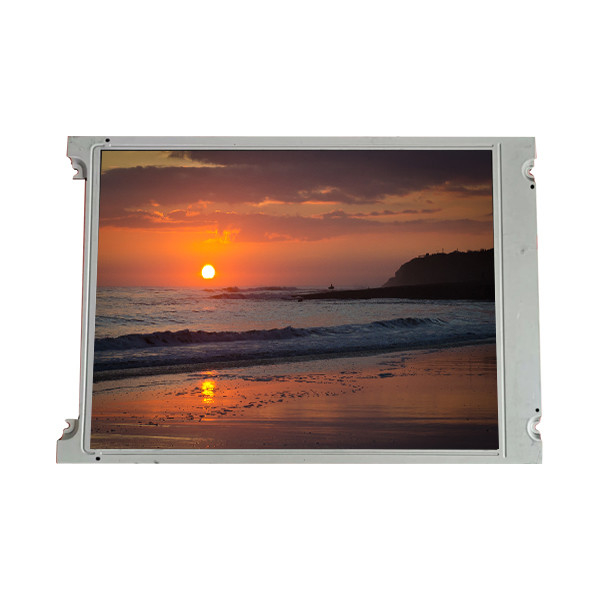

TX20D34VM2BAB 8.0 inch LCD SCREEN PANEL DISPLAY
Product Details:
| Place of Origin: | China |
| Brand Name: | KOE |
| Model Number: | TX20D34VM2BAB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TX20D34VM2BAB | Diagonal Size: | 8.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA 116PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 174(W)×104.4(H) Mm |
| Luminance: | 600 Cd/m² (Typ.) | Contrast Ratio: | 600 : 1 (Typ.) (TM) |
| Designed For: | Industrial | Color Depth: | 262K 60%NTSC |
Product Description
TX20D34VM2BAB 8.0 inch LCD SCREEN PANEL DISPLAY
TX20D34VM2BAB LCD Panel Product details :
| Brand | KOE |
| Model P/N | TX20D34VM2BAB |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 116PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 174(W)×104.4(H) mm |
| Bezel Opening | 178.0(W)×108.4(H) mm |
| Outline Dim. | 189(H)×120(V)×8(D) mm |
| Treatment | - |
| Luminance | 600 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 20 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 60%NTSC |
| Light Source | WLED [3S14P], 50K hours, W/O Driver |
| Weight | 165g (Typ.) |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6-bit), 20 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| TX20D34VM2BAB 8.0 inch LCD SCREEN PANEL DISPLAY | |
