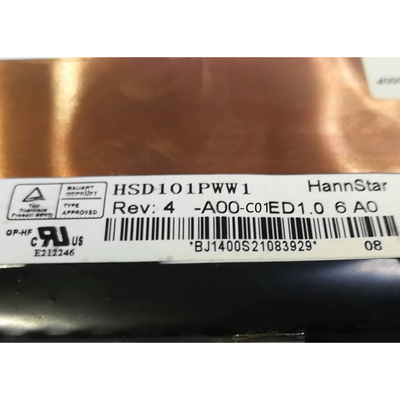

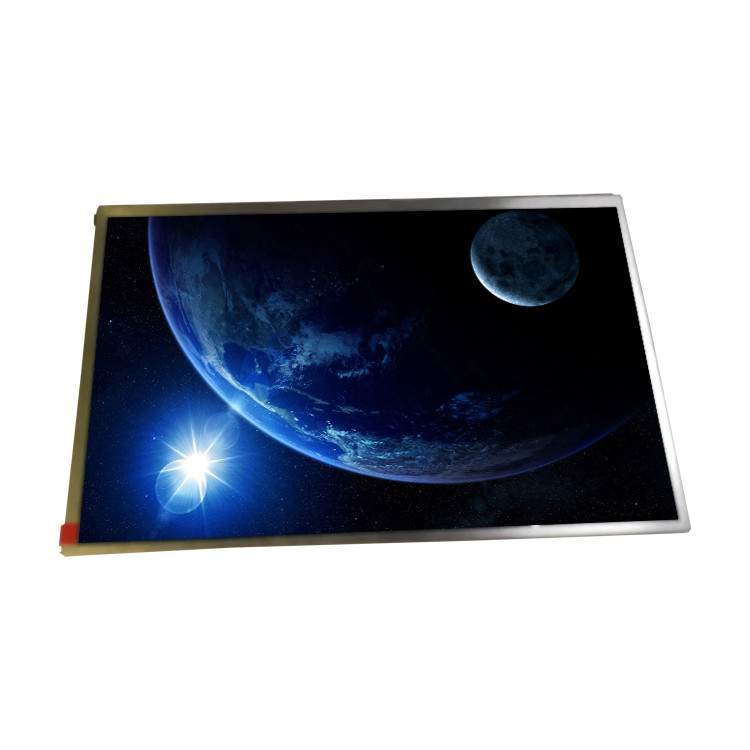

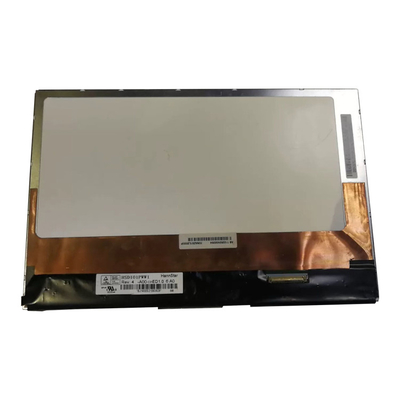

HSD101PWW1-A00-C01 New 10.1 inch 1280*800 LCD display
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD101PWW1-A00-C01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD101PWW1-A00-C01 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800, WXGA 149PPI | Active Area: | 216.96(W)×135.6(H) Mm |
| Bezel Opening: | 218.36(W)×137.00(H) Mm | Outline Size: | 257(W)×182(H) ×6.89(D) Mm |
| Contrast Ratio: | 800:1 (Typ.) (TM) | Application: | Pad & Tablet |
| Touch Screen: | PCAP, I²C | Signal Interface: | LVDS (1 Ch, 6-bit) , 40 Pins Connector |
Product Description
HSD101PWW1-A00-C01 New 10.1 inch 1280*800 LCD display
HSD101PWW1-A00-C01 LCD Panel Product details :
| HannStar LCD Screen HSD101PWW1-A00-C01 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD101PWW1-A00-C01 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, Assembly |
| Resolution | 1280(RGB)×800, WXGA 149PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 216.96(W)×135.6(H) mm |
| Bezel Opening | 218.36(W)×137.00(H) mm |
| Outline Size | 257(W)×182(H) ×6.89(D) mm |
| Brightness | 290 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | IPS Pro, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 262K 45% NTSC |
| Lamp Type | WLED , 10K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | PCAP, I²C |
| Panel Weight | 295/305g (Typ./Max.) |
| Application | Pad & Tablet |
| Signal Interface | LVDS (1 ch, 6-bit) , 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| HSD101PWW1-A00-C01 New 10.1 inch 1280*800 LCD display | |
Confirmation Before Purchasing HSD101PWW1-A00-C01 LCD Panel :
Check Model Details: Verify your machine model, screen size, and part number carefully. If you are uncertain about compatibility, please send us the specific model number and photos of your original screen for accurate guidance.
Compatible Model Number: The LED panel we send may have a compatible model number that differs slightly from your original screen's model. However, we guarantee that it will be fully compatible with your machine model.
Quality Assurance: All items undergo testing before shipment to ensure functionality. Please note that adhesive tape is not included by default. If you require adhesive tape, kindly leave us a message when placing your order.
If you have any inquiries or need further assistance regarding the purchase of the HSD101PWW1-A00-C01 LCD panel, feel free to reach out to us. We are here to help ensure a smooth and successful transaction.
Payment Policy for HSD101PWW1-A00-C01 LCD Panel :
Accepted Payment Methods: We accept payments via PayPal and ALI, but only with a confirmed address.
Tax Responsibility: Any applicable taxes in the buyer's country are the sole responsibility of the buyer.
Customs Declaration: To help minimize potential taxes for buyers, we may declare a lower value on packages.
HSD101PWW1-A00-C01 LCD Panel Shipping and Package :
Warranty Policy for HSD101PWW1-A00-C01 LCD Panel :
We offer the following warranty terms for your HSD101PWW1-A00-C01 LCD panel:
90-Days Replacement Warranty: If your LCD panel encounters any issues within 90 days of purchase, you are eligible for a replacement.
Please contact us for further instructions on how to proceed with the replacement process.
Return Window: You can return the LCD panel within 14 days of receiving it, provided it meets our return criteria (e.g., unused, in original packaging).
Return Shipping: The buyer is responsible for covering the cost of return shipping.
We offer the following warranty terms for your HSD101PWW1-A00-C01 LCD panel:
90-Days Replacement Warranty: If your LCD panel encounters any issues within 90 days of purchase, you are eligible for a replacement.
Please contact us for further instructions on how to proceed with the replacement process.
Return Window: You can return the LCD panel within 14 days of receiving it, provided it meets our return criteria (e.g., unused, in original packaging).
Return Shipping: The buyer is responsible for covering the cost of return shipping.
HSD101PWW1-A00-C01 LCD Panel FAQ :
Q: How long is the warranty of HSD101PWW1-A00-C01 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of HSD101PWW1-A00-C01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders for HSD101PWW1-A00-C01 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of HSD101PWW1-A00-C01 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
