LM201WE3-TLD1 20.1 inch LCD Screen LVDS 30pins LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LM201WE3-TLD1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM201WE3-TLD1 | Diagonal Size: | 20.1" |
|---|---|---|---|
| Resolution: | 1680(RGB)×1050, WSXGA+ 98PPI | Active Area: | 433.44(W)×270.9(H) Mm |
| Outline Dim.: | 459.4(W)×296.4(H)×17(D) Mm | Display Mode: | TN, Normally White, Transmissive |
| Light Source: | CCFL [4 Pcs] , 50K Hours , W/O Driver | Support Color: | 16.7M 71% NTSC |
| Designed For: | Desktop Monitor | Interface Type: | LVDS (2 Ch, 8-bit)30 Pins Connector |
Product Description

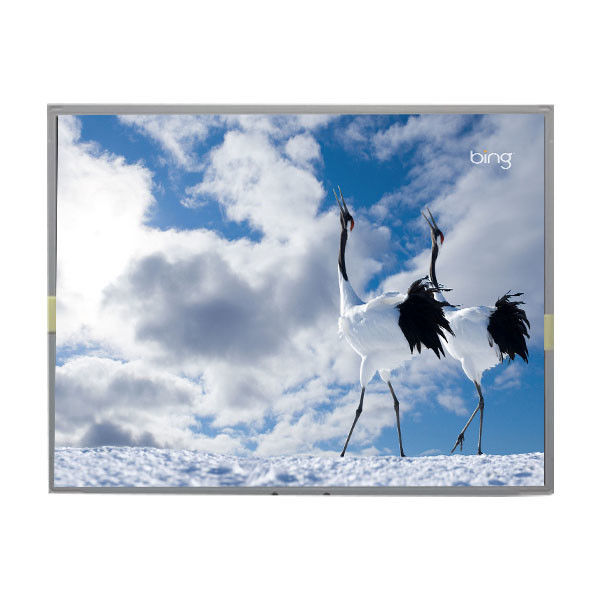

LM201WE3-TLD1 20.1 inch LCD Screen LVDS 30pins LCD Display
LM201WE3-TLD1 LCD Panel Product details :
| Brand | LG |
| Model P/N | LM201WE3-TLD1 |
| Diagonal Size | 20.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1680(RGB)×1050, WSXGA+ 98PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 433.44(W)×270.9(H) mm |
| Bezel Opening | 438.4(W)×275.9(H) mm |
| Outline Dim. | 459.4(W)×296.4(H)×17(D) mm |
| Luminance | 300 cd/m² (Typ.) |
| View Direction | 6 o'clock |
| Viewing Angle | 80/80/75/85 (Typ.)(CR≥10) |
| Support Color | 16.7M 71% NTSC |
| Weight | 2.40Kgs (Typ.) |
| Frame Rate | 60Hz |
| Treatment | Glare (Haze 0%), Hard coating (2H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Response Time | 1.1/3.9 (Typ.)(Tr/Td) |
| Operating Mode | TN, Normally White, Transmissive |
| Light Source | CCFL [4 pcs] , 50K hours , W/O Driver |
| Designed For | Desktop Monitor |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit)30 pins Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
| LM201WE3-TLD1 20.1 inch LCD Screen LVDS 30pins LCD Display | |
LM201WE3-TLD1 LCD Screen Notice:
Before placing your order, we kindly request you to carefully review and confirm whether the screen size, resolution, backlight type, interface type, and location are compatible with your laptop. If you are unsure or have any questions, please feel free to reach out to us for assistance.
To ensure prompt delivery, please provide us with your accurate contact details.
If you wish for us to declare a lower value to potentially reduce customs taxes, please inform us accordingly. However, please note that by doing so, you accept full responsibility for any associated risks.
LM201WE3-TLD1 LCD Panel Shipping and Package :
LM201WE3-TLD1 LCD Screen International Orders:
The buyer assumes responsibility for all customs fees and import taxes associated with international orders.
International orders may experience extended delivery times due to customs processing delays.
When shipping to Japan or South Korea via FedEx or DHL, the actual price of the item will be declared. Additionally, recipients in South Korea must provide a customs clearance serial number, for instance: "P123123456789". Please ensure to furnish us with the customs clearance serial number.
LM201WE3-TLD1 LCD Screen About Item and Shipping Price:
For products that are seldom or never sold, the listed item price may not be accurate. Please contact us for an updated and precise quote.
Shipping prices to remote countries or islands may vary significantly. Kindly reach out to us for an accurate shipping quote tailored to your location.
LM201WE3-TLD1 LCD Panel FAQ :
Q: How long is the warranty of LM201WE3-TLD1 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of LM201WE3-TLD1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of LM201WE3-TLD1 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods LM201WE3-TLD1 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
