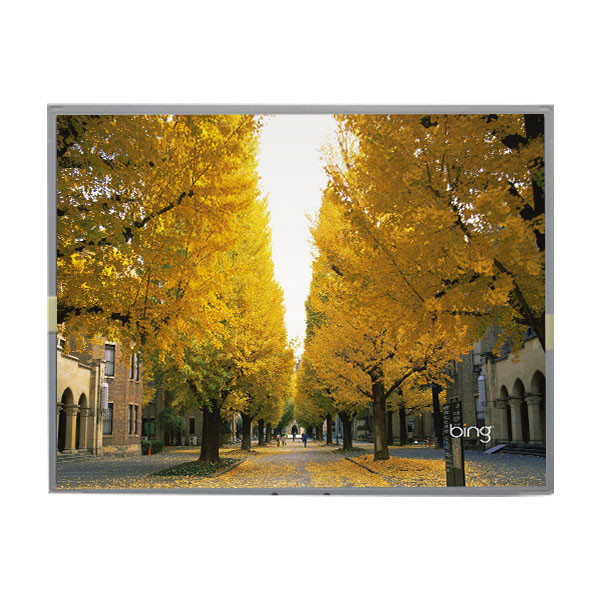

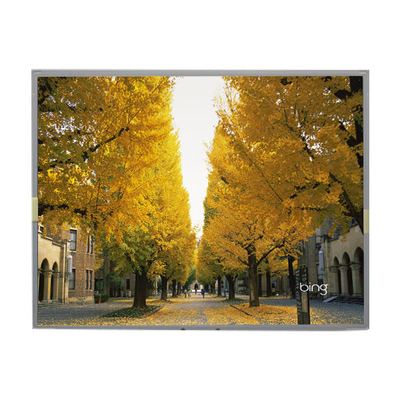

LM201WE3-TLB1 20.1 inch LCD Screen 1680*1050 LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LM201WE3-TLB1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM201WE3-TLB1 | Diagonal Size: | 20.1" |
|---|---|---|---|
| Resolution: | 1680(RGB)×1050, WSXGA+ 98PPI | Active Area: | 433.44(W)×270.9(H) Mm |
| Outline Dim.: | 459.4(W)×296.4(H)×23.3(D) Mm | Display Mode: | TN, Normally White, Transmissive |
| Light Source: | CCFL [6 Pcs] , 50K Hours , W/O Driver | Support Color: | 16.7M 71% NTSC |
| Designed For: | Desktop Monitor | Interface Type: | LVDS (2 Ch, 8-bit)30 Pins Connector |
Product Description
LM201WE3-TLB1 20.1 inch LCD Screen 1680*1050 LCD Display
LM201WE3-TLB1 LCD Panel Product details :
| Brand | LG |
| Model P/N | LM201WE3-TLB1 |
| Diagonal Size | 20.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1680(RGB)×1050, WSXGA+ 98PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 433.44(W)×270.9(H) mm |
| Bezel Opening | 438.4(W)×275.9(H) mm |
| Outline Dim. | 459.4(W)×296.4(H)×23.3(D) mm |
| Luminance | 450 cd/m² (Typ.) |
| View Direction | 6 o'clock |
| Viewing Angle | 80/80/75/85 (Typ.)(CR≥10) |
| Support Color | 16.7M 71% NTSC |
| Weight | 2.85/3.00Kgs (Typ./Max.) |
| Frame Rate | 60Hz |
| Treatment | Glare (Haze 0%), Hard coating (2H) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Response Time | 1.1/3.9 (Typ.)(Tr/Td) |
| Operating Mode | TN, Normally White, Transmissive |
| Light Source | CCFL [6 pcs] , 50K hours , W/O Driver |
| Designed For | Desktop Monitor |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit)30 pins Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
| LM201WE3-TLB1 20.1 inch LCD Screen 1680*1050 LCD Display | |
LM201WE3-TLB1 LCD Screen Notice:
Before placing your order, we kindly request you to carefully review and confirm whether the screen size, resolution, backlight type, interface type, and location are compatible with your laptop. If you are unsure or have any questions, please feel free to reach out to us for assistance.
To ensure prompt delivery, please provide us with your accurate contact details.
If you wish for us to declare a lower value to potentially reduce customs taxes, please inform us accordingly. However, please note that by doing so, you accept full responsibility for any associated risks.
LM201WE3-TLB1 LCD Panel Shipping and Package :
LM201WE3-TLB1 LCD Screen International Orders:
The buyer assumes responsibility for all customs fees and import taxes associated with international orders.
International orders may experience extended delivery times due to customs processing delays.
When shipping to Japan or South Korea via FedEx or DHL, the actual price of the item will be declared. Additionally, recipients in South Korea must provide a customs clearance serial number, for instance: "P123123456789". Please ensure to furnish us with the customs clearance serial number.
LM201WE3-TLB1 LCD Screen About Item and Shipping Price:
For products that are seldom or never sold, the listed item price may not be accurate. Please contact us for an updated and precise quote.
Shipping prices to remote countries or islands may vary significantly. Kindly reach out to us for an accurate shipping quote tailored to your location.
LM201WE3-TLB1 LCD Panel FAQ :
Q: How do you ship my goods LM201WE3-TLB1 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of LM201WE3-TLB1 ?
A: 90days warranty .
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of LCD panel LG LM201WE3-TLB1 at a very low value ?
A: Yes , we can . pls inform us before shipping .
