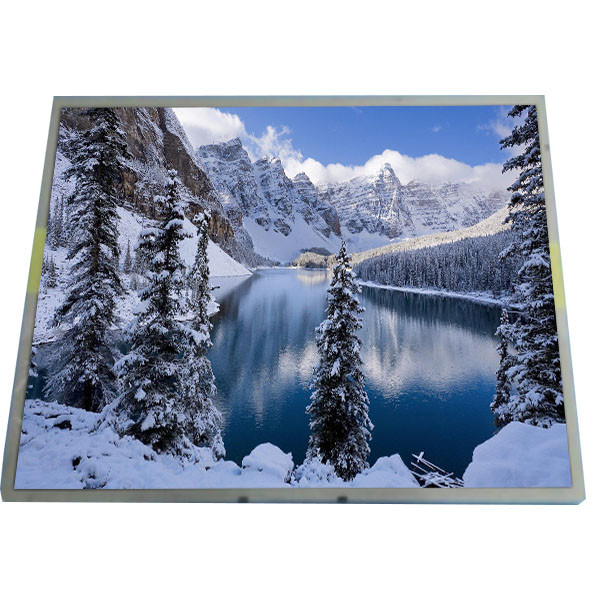

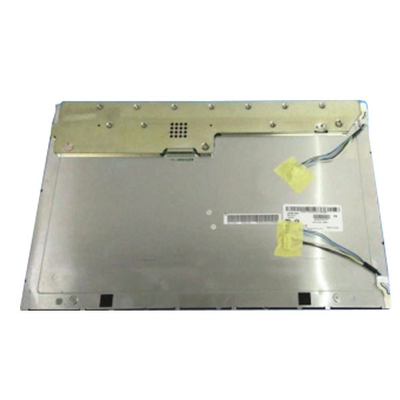

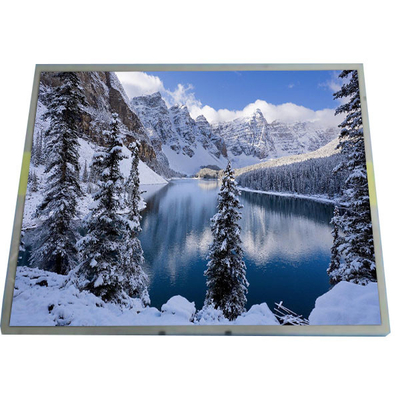

LM201W01-SLC1 TFT LCD Module 20.1 Inch LCD Panel for LG

Brand Name:	LG
Model Number:	LM201W01-SLC1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM201W01-SLC1

Diagonal Size:

20.1"

Resolution:

1680(RGB)×1050, WSXGA+ 98PPI

Active Area:

433.44(W)×270.9(H) Mm

Outline Size:

459.4(W)×296.4(H)×23.3(D) Mm

Viewing Angle:

89/89/89/89 (Typ.)(CR≥10)

Operating Mode:

IPS, Normally Black, Transmissive

Support Color:

16.7M 72%NTSC

Designed For:

Desktop Monitor

Signal Interface:

LVDS (2 Ch, 8-bit), 30 PinsConnector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM201W01-SLC1 TFT LCD Module 20.1 Inch LCD Panel for LG

LM201W01-SLC1 LCD Panel Product details :

Brand	LG
Model P/N	LM201W01-SLC1
Diagonal Size	20.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1680(RGB)×1050, WSXGA+ 98PPI
Pixel Format	RGB Vertical Stripe
Active Area	433.44(W)×270.9(H) mm
Bezel Opening	438.4(W)×275.9(H) mm
Outline Size	459.4(W)×296.4(H)×23.3(D) mm
Surface	Antiglare (Haze 25%), Hard coating (3H)
Brightness	300 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Display Mode	IPS, Normally Black, Transmissive
Best View on	Symmetry
Response Time	7/9 (Typ.)(Tr/Td), 8 (Typ.)(G to G)
Display Colors	16.7M 72%NTSC
Lamp Type	6 pcsCCFL, 50K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	2.85/3.00Kgs (Typ./Max.)
Application	Desktop Monitor
Signal Interface	LVDS (2 ch, 8-bit), 30 pinsConnector
Input Voltage	12.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
LM201W01-SLC1 TFT LCD Module 20.1 Inch LCD Panel for LG

LM201W01-SLC1 LCD Screen Notice:

Before placing your order, we kindly request you to carefully review and confirm whether the screen size, resolution, backlight type, interface type, and location are compatible with your laptop. If you are unsure or have any questions, please feel free to reach out to us for assistance.

To ensure prompt delivery, please provide us with your accurate contact details.

If you wish for us to declare a lower value to potentially reduce customs taxes, please inform us accordingly. However, please note that by doing so, you accept full responsibility for any associated risks.

LM201W01-SLC1 LCD Panel Shipping and Package :

LM201W01-SLC1 TFT LCD Module 20.1 Inch LCD Panel for LG 0

LM201W01-SLC1 LCD Screen International Orders:

The buyer assumes responsibility for all customs fees and import taxes associated with international orders.

International orders may experience extended delivery times due to customs processing delays.

When shipping to Japan or South Korea via FedEx or DHL, the actual price of the item will be declared. Additionally, recipients in South Korea must provide a customs clearance serial number, for instance: "P123123456789". Please ensure to furnish us with the customs clearance serial number.

LM201W01-SLC1 LCD Screen About Item and Shipping Price:

For products that are seldom or never sold, the listed item price may not be accurate. Please contact us for an updated and precise quote.

Shipping prices to remote countries or islands may vary significantly. Kindly reach out to us for an accurate shipping quote tailored to your location.

LM201W01-SLC1 LCD Panel FAQ :

Q: How to make payment of LM201W01-SLC1 ?

A: We accept T/T , Paypal , western union .

Q: Can you give me a discount if I need a large quantity of LM201W01-SLC1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of LM201W01-SLC1 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can I pay my order of LM201W01-SLC1 via credit card ?

A: Yes!you can use your credit card through your Paypal account.
