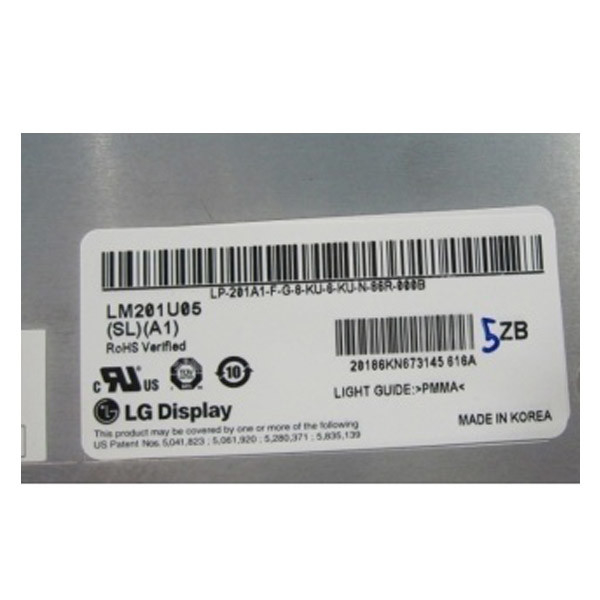

LM201U05-SLA1 Original in stock 20.1 inch LCD Display Screen

Brand Name:	LG
Model Number:	LM201U05-SLA1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM201U05-SLA1

Diagonal Size:

20.1"

Resolution:

1600(RGB)×1200, UXGA 99PPI

Active Area:

408(W)×306(H) Mm

Outline Size:

432(W)×331.5(H)×25.5(D) Mm

Backlight:

6 PcsCCFL, 45K Hours, No Driver

Color Depth:

16.7M 72%NTSC

Application:

Desktop Monitor

Work Mode:

IPS, Normally Black, Transmissive

Signal Type:

LVDS (2 Ch, 8-bit), 30 PinsConnector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM201U05-SLA1 Original in stock 20.1 inch LCD Display Screen

LM201U05-SLA1 LCD Panel Product details :

Brand	LG
Model P/N	LM201U05-SLA1
Diagonal Size	20.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1600(RGB)×1200, UXGA 99PPI
Pixel Format	RGB Vertical Stripe
Active Area	408(W)×306(H) mm
Bezel Opening	413.0(W)×311.0(H) mm
Outline Size	432(W)×331.5(H)×25.5(D) mm
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	300 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Response	7/9 (Typ.)(Tr/Td), 8 (Typ.)(G to G) ms
Good View at	Symmetry
Work Mode	IPS, Normally Black, Transmissive
Color Depth	16.7M 72%NTSC
Backlight	6 pcsCCFL, 45K hours, No Driver
Mass	3.20Kgs (Typ.)
Used for	Desktop Monitor
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (2 ch, 8-bit), 30 pinsConnector
Voltage Supply	18.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
LM201U05-SLA1 Original in stock 20.1 inch LCD Display Screen

LM201U05-SLA1 LCD Display Warning:

Installation Guide Not Included:

Please be aware that the installation guide is not included with this accessory. We want to emphasize that we cannot be held responsible for any damage resulting from improper installation. Prior to bidding, ensure that you possess the necessary expertise for installation. Your understanding in this matter is greatly appreciated.

Compatibility Guarantee:

We guarantee compatibility with your machine for the item you receive. However, please note that we only assure compatibility and cannot guarantee specific features beyond that.

Quality Assurance and Testing:

Rest assured, each screen undergoes thorough testing, ensuring 100% operational functionality before shipment. This includes repairing or replacing old, damaged, cracked, or faulty filters to maintain optimal performance standards.

Precautionary Measures Upon Receipt:

Upon receiving the product, please refrain from removing the protective film or applying adhesive on the back immediately. It is crucial to first test the machine by inserting the new screen and checking for normal sensitivity. This step ensures quality compliance and prevents potential damage to the motherboard and screen.

Safety Protocol During Testing:

Before conducting any tests, disconnect the power to prevent the risk of damaging the motherboard and screen. Failure to do so may result in irreparable damage, for which we cannot be held responsible. Please exercise caution and follow these instructions diligently.

LM201U05-SLA1 LCD Display Helpful Information:

We understand the importance of ensuring compatibility when purchasing an LCD display. To assist you in making the right choice and to avoid any compatibility issues, we offer the following helpful information:

Matching Size, Resolution, and Backlight:

It's crucial to match the size, resolution, and backlight specifications of the product with your existing screen. This ensures seamless integration and optimal performance. Please double-check these specifications before making your purchase.

If you are uncertain about which screen to choose or if you have any questions regarding compatibility, please don't hesitate to reach out to us. You can provide us with details such as your LCD brand, serial number, model, or the model number located on the back of your current screen. Our dedicated technicians are here to assist you in selecting the correct screen for your needs.

LM201U05-SLA1 LCD Panel Shipping and Package :

LM201U05-SLA1 LCD Panel FAQ :

Q: Can I pay my goods LM201U05-SLA1 by credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of LM201U05-SLA1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders for LM201U05-SLA1 ?

A: Of course!sample order is welcome !

Q: How to make payment for LM201U05-SLA1 ?

A: We accept T/T , Paypal , western union .

LM201U05-SLA1 LCD Display Service Hours:

Thank you for choosing our product. We are committed to providing exceptional customer service to ensure your satisfaction. Our service hours, based on Beijing time, are as follows:

Monday to Friday: 8:00 AM - 12:00 PM, 1:30 PM - 6:00 PM

However, please note that we understand your needs may arise outside of these hours. Therefore, we have dedicated customer service representatives available 24 hours a day to assist you with any inquiries or issues you may encounter.

Feel free to reach out to us at any time, and we will do our utmost to address your concerns promptly and effectively.

Thank you for your trust in our products and services. We look forward to serving you.
