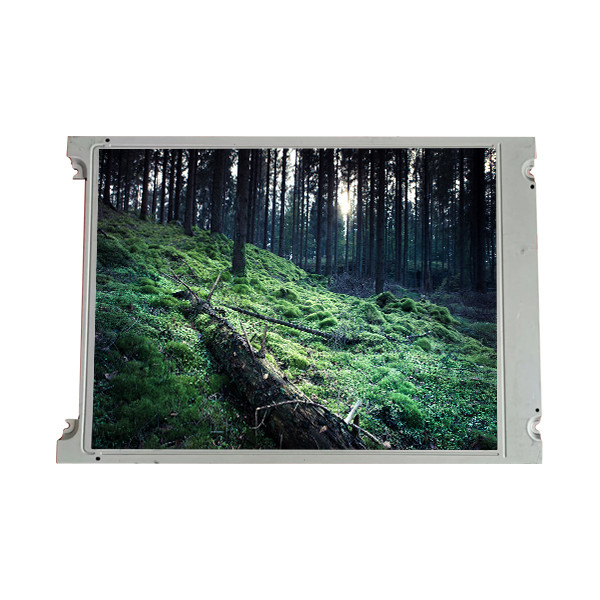

TX18D210VM0BPA 7.0 inch 800*480 LCD Screen LCD For KOE
Product Details:
| Place of Origin: | China |
| Brand Name: | KOE |
| Model Number: | TX18D210VM0BPA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TX18D210VM0BPA | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | LTPS TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA 133PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 152.4(W)×91.44(H) Mm |
| Application: | Industrial、Outdoor High Brightness、Automotive Display | Input Voltage: | 3.3V (Typ.) |
Product Description
TX18D210VM0BPA 7.0 inch 800*480 LCD Screen LCD For KOE
TX18D210VM0BPA LCD Panel Product details :
| Brand | KOE |
| Model P/N | TX18D210VM0BPA |
| Diagonal Size | 7.0" |
| Panel Type | LTPS TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 152.4(W)×91.44(H) mm |
| Bezel Opening | 156.2(W)×94.5(H) mm |
| Outline Size | 167.7(W)×109.5(H)×21.9(D) mm |
| Surface | Glare (Haze 0%) |
| Brightness | 900 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | IPS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Display Colors | 262K 72%NTSC |
| Lamp Type | WLED, 50K hours, With LED Driver |
| Frequency | 60Hz |
| Touch Screen | 4-wire Resistive Touch |
| Panel Weight | 266g (Typ.) |
| Application | Industrial,Outdoor High Brightness,Automotive Display |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 40 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 5.0G (49.0 m/s²) |
| TX18D210VM0BPA 7.0 inch 800*480 LCD Screen LCD For KOE | |
