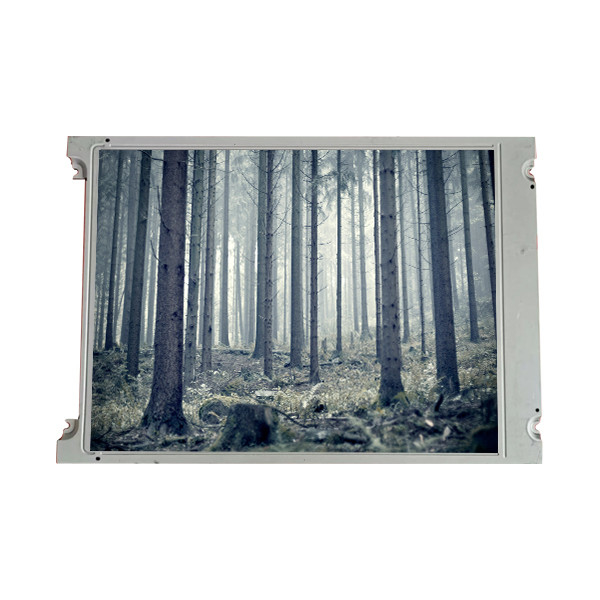

TX18D206VM0BXA 7.0 inch 800*480 LCD Screen LCD For KOE
Product Details:
| Place of Origin: | China |
| Brand Name: | KOE |
| Model Number: | TX18D206VM0BXA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TX18D206VM0BXA | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA 133PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 152.4(W)×91.44(H) Mm |
| Application: | Automotive Display | Input Voltage: | 3.3V (Typ.) |
Product Description
TX18D206VM0BXA 7.0 inch 800*480 LCD Screen LCD For KOE
TX18D206VM0BXA LCD Panel Product details :
| Brand | KOE |
| Model P/N | TX18D206VM0BXA |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 152.4(W)×91.44(H) mm |
| Bezel Opening | - |
| Outline (mm) | 170×113.3×22 (H×V×D) |
| Treatment | Hard coating (7H) |
| Luminance | 700 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 262K 72%NTSC |
| Backlight | WLED, 70K hours, With LED Driver |
| Mass | 295g (Typ.) |
| Used for | Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | PCAP, I²C |
| Signal Type | LVDS (1 ch, 6-bit), Connector20 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 80 °C ; Vibration Level: 5.0G (49.0 m/s²) |
| TX18D206VM0BXA 7.0 inch 800*480 LCD Screen LCD For KOE | |
TX18D206VM0BXA lcd panel About Us:
At YONGS , we are dedicated to fulfilling the following commitments:
Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.
Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.
Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.
TX18D206VM0BXA LCD Panel Shipping and Package :
TX18D206VM0BXA LCD Panel Delivery :
We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.
The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.
Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.
TX18D206VM0BXA LCD Panel After-Service:
We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.
Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.
Please take note of these terms to ensure a smooth and efficient after-sales experience.
TX18D206VM0BXA LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of TX18D206VM0BXA?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of TX18D206VM0BXA to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How long will I receive my goods TX18D206VM0BXA ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
