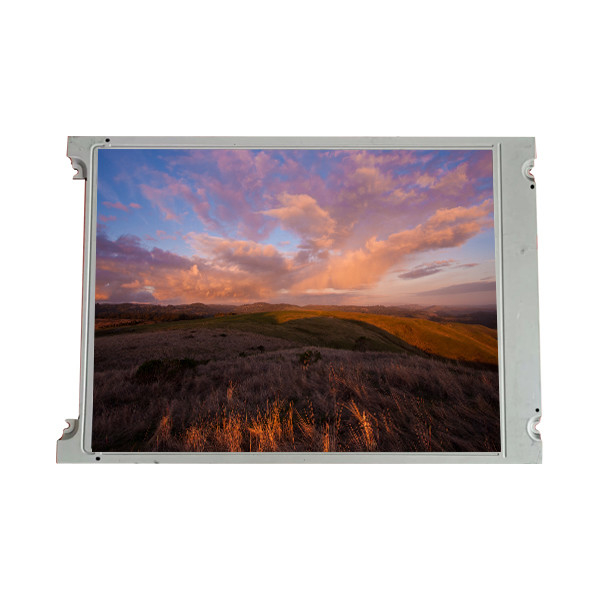

TX18D205VM0BAA 7.0 inch 800*480 LCD Screen LCD For KOE

Brand Name:	KOE
Model Number:	TX18D205VM0BAA
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TX18D205VM0BAA

Diagonal Size:

Panel Type:

LTPS TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 133PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

152.4(W)×91.44(H) Mm

Application:

Automotive Display

Input Voltage:

3.3V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

TX18D205VM0BAA 7.0 inch 800*480 LCD Screen LCD For KOE

TX18D205VM0BAA LCD Panel Product details :

Brand	KOE
Model P/N	TX18D205VM0BAA
Diagonal Size	7.0"
Panel Type	LTPS TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 133PPI
Pixel Format	RGB Vertical Stripe
Active Area	152.4(W)×91.44(H) mm
Bezel Opening	156.2(W)×94.5(H) mm
Outline Size	167.7(W)×109.45(H)×20.3(D) mm
Brightness	800 cd/m² (Typ.)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	262K 70%NTSC
Frequency	60Hz
Weight	226g (Typ.)
Surface	-
Contrast Ratio	1000:1 (Typ.) (TM)
Display Mode	IPS, Normally Black, Transmissive
Response Time	30 (Typ.)(Tr+Td)
Lamp Type	WLED , 70K hours , With LED Driver
Touch Screen	Without
Application	Automotive Display
Signal Interface	Parallel RGB (1 ch, 6-bit), 40 pinsConnector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -40 ~ 85 °C ;Storage Temp.: -40 ~ 90 °C; Vibration Level: 5.0G (49.0 m/s²)
TX18D205VM0BAA 7.0 inch 800*480 LCD Screen LCD For KOE

TX18D205VM0BAA lcd panel About Us:

At YONGS , we are dedicated to fulfilling the following commitments:

Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.

Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.

Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.

TX18D205VM0BAA LCD Panel Shipping and Package :

TX18D205VM0BAA LCD Panel Delivery :

We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.

The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.

Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.

TX18D205VM0BAA LCD Panel After-Service:

We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.

Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.

Please take note of these terms to ensure a smooth and efficient after-sales experience.

TX18D205VM0BAA LCD Panel FAQ :

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.

Q: What is the different between original lcd panel and compatible lcd display?

A: Function is the same , Of course the original lcd’s quality and lifetime better than that compatible lcd .

Q: Do you accept the TX18D205VM0BAA sample order?

A: Yes , sample order is welcome.

Q: How to order if I don’t know the lcd panel number ?

A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
