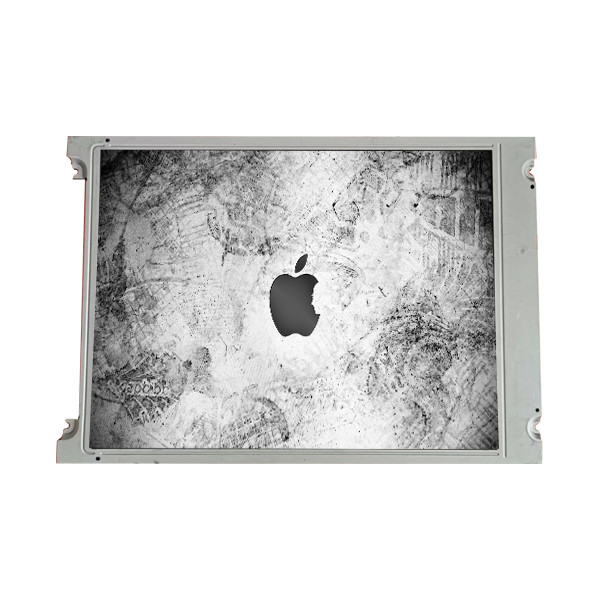

TX18D204VM0BVA 7.0 inch 1920*1080 LCD Screen LCD For Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | KOE |
| Model Number: | TX18D204VM0BVA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TX18D204VM0BVA | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 313PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 155.52(W)×87.48(H) Mm |
| Application: | Industrial、Healthcare | Input Voltage: | 3.3V (Typ.) |
Product Description
TX18D204VM0BVA 7.0 inch 1920*1080 LCD Screen LCD For Industrial
TX18D204VM0BVA LCD Panel Product details :
| Brand | KOE |
| Model P/N | TX18D204VM0BVA |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 313PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 155.52(W)×87.48(H) mm |
| Bezel Opening | 156.92(W)×88.88(H) mm |
| Outline Dim. | 178.8(W)×115(H)×9.2(D) mm |
| Luminance | 500 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Support Color | 16.7M 70% NTSC |
| Weight | 174g |
| Frame Rate | 60Hz |
| Treatment | - |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Response Time | 23 (Typ.)(Tr+Td) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Light Source | WLED, 40K hours , With LED Driver |
| Designed For | Industrial,Healthcare |
| Touch Panel | PCAP |
| Interface Type | LVDS (1 ch, 8-bit)20 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C; Storage Temperature: -30 ~ 80 °C; Vibration Level: 2.0G (19.6 m/s²) |
| TX18D204VM0BVA 7.0 inch 1920*1080 LCD Screen LCD For Industrial | |
TX18D204VM0BVA lcd panel About Us:
At YONGS , we are dedicated to fulfilling the following commitments:
Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.
Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.
Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.
TX18D204VM0BVA LCD Panel Shipping and Package :
TX18D204VM0BVA LCD Panel Delivery :
We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.
The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.
Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.
TX18D204VM0BVA LCD Panel After-Service:
We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.
Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.
Please take note of these terms to ensure a smooth and efficient after-sales experience.
TX18D204VM0BVA LCD Panel FAQ :
Q: What is the different between original lcd panel and compatible lcd display?
A: Function is the same , Of course the original lcd’s quality and lifetime better than that compatible lcd .
Q: Do you accept the TX18D204VM0BVA sample order?
A: Yes , sample order is welcome.
Q: How to order if I don’t know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
