Industrial LCD Panel Display

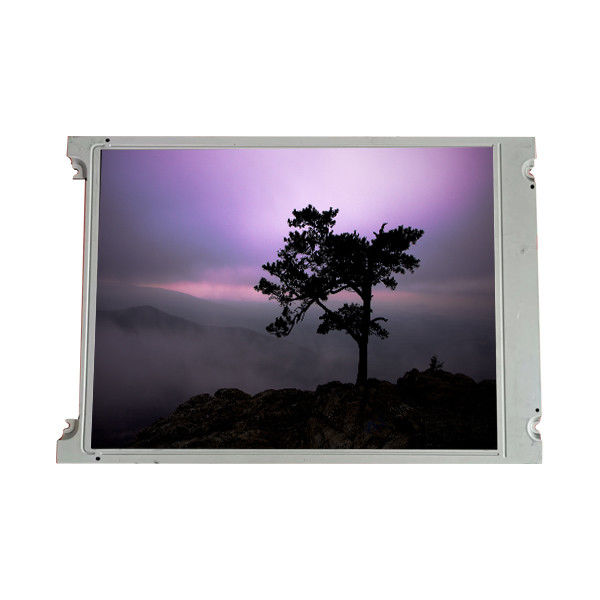

TX18D203VM2BPA 7.0 inch 800*480 LCD Screen LCD For Industrial

All Category

Floor Standing Digital Signage

TX18D203VM2BPA 7.0 inch 800*480 LCD Screen LCD For Industrial

Brand Name:	KOE
Model Number:	TX18D203VM2BPA
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TX18D203VM2BPA

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 133PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

152.4(W)×91.44(H) Mm

Application:

Industrial、Outdoor High Brightness

Input Voltage:

3.3V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

TX18D203VM2BPA 7.0 inch 800*480 LCD Screen LCD For Industrial

TX18D203VM2BPA LCD Panel Product details :

Brand	KOE
Model P/N	TX18D203VM2BPA
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 133PPI
Pixel Format	RGB Vertical Stripe
Active Area	152.4(W)×91.44(H) mm
Bezel Opening	154.40(W)×93.44(H) mm
Outline Size	165(W)×113(H)×9.4(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	1200 cd/m² (Typ.)
Contrast Ratio	600:1 (Typ.) (TM)
Viewing Angle	70/70/65/55 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	20 (Typ.)(Tr+Td)
Display Colors	262K 45%NTSC
Lamp Type	WLED, 40K hours, With LED Driver
Frequency	60Hz
Touch Screen	4-wire Resistive Touch
Panel Weight	214g (Typ.)
Application	Industrial,Outdoor High Brightness
Signal Interface	Parallel RGB (1 ch, 6-bit), 40 pinsConnector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)
TX18D203VM2BPA 7.0 inch 800*480 LCD Screen LCD For Industrial

TX18D203VM2BPA lcd panel About Us:

At YONGS , we are dedicated to fulfilling the following commitments:

Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.

Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.

Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.

TX18D203VM2BPA LCD Panel Shipping and Package :

TX18D203VM2BPA LCD Panel Delivery :

We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.

The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.

Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.

TX18D203VM2BPA LCD Panel After-Service:

We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.

Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.

Please take note of these terms to ensure a smooth and efficient after-sales experience.

TX18D203VM2BPA LCD Panel FAQ :

Q: How to order lcd panel TX18D203VM2BPA ?

A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.

Q: How long is the warranty of TX18D203VM2BPA ?

A: NEW Product warranty is 90 days.
