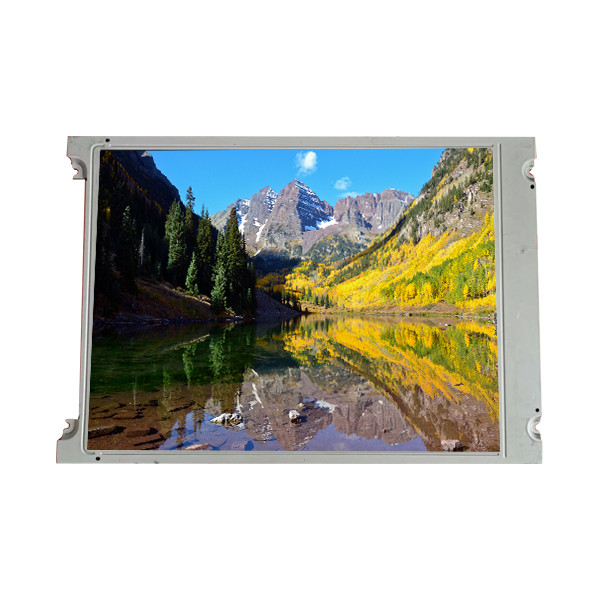

TX18D200VM0EWA 7.0 inch 1920*1080 LCD Screen LCD For Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | KOE |
| Model Number: | TX18D200VM0EWA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TX18D200VM0EWA | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 313PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 155.52(W)×87.48(H) Mm |
| Application: | Industrial、Healthcare | Input Voltage: | 3.3V (Typ.) |
Product Description
TX18D200VM0EWA 7.0 inch 1920*1080 LCD Screen LCD For Industrial
TX18D200VM0EWA LCD Panel Product details :
| Brand | KOE |
| Model P/N | TX18D200VM0EWA |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 313PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 155.52(W)×87.48(H) mm |
| Bezel Opening | - |
| Outline Size | 178.76(W)×115(H)×12.05(D) mm |
| Surface | Hard coating (7H) |
| Brightness | 600 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | IPS-Pro, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 23 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 74%NTSC |
| Lamp Type | 3S10PWLED, 70K hours, With LED Driver |
| Frequency | 60Hz |
| Touch Screen | PCAP, USB |
| Panel Weight | 240g (Typ.) |
| Application | Industrial,Healthcare |
| Signal Interface | LVDS (1 ch, 8-bit), 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C; Vibration Level: 2.0G (19.6 m/s²) |
| TX18D200VM0EWA 7.0 inch 1920*1080 LCD Screen LCD For Industrial | |
TX18D200VM0EWA LCD Panel Shipping and Package :
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long is the warranty of TX18D200VM0EWA ?
A: NEW Product warranty is 90 days.
Q: How to order lcd panel TX18D200VM0EWA ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
