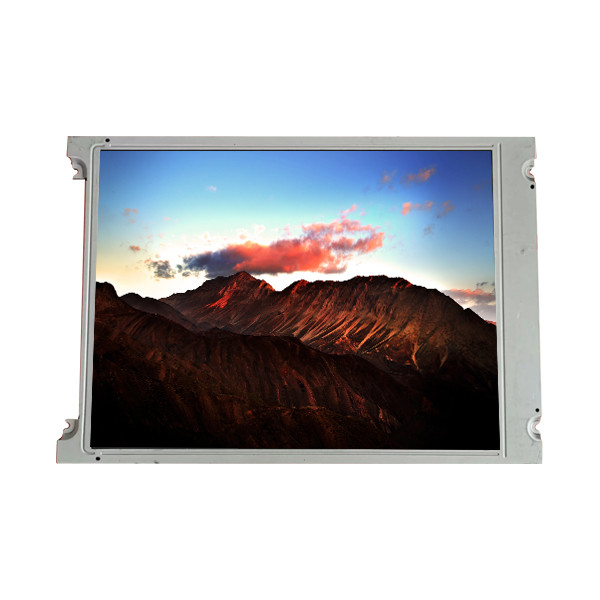

TX18D57VM2BAB 7.0 inch 800*480 LCD Screen LCD For KOE
Product Details:
| Place of Origin: | China |
| Brand Name: | KOE |
| Model Number: | TX18D57VM2BAB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TX18D57VM2BAB | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA 133PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 152.4(W)×91.44(H) Mm |
| Application: | Automotive Display | Input Voltage: | 3.3V (Typ.) |
Product Description
TX18D57VM2BAB 7.0 inch 800*480 LCD Screen LCD For KOE
TX18D57VM2BAB LCD Panel Product details :
| Brand | HITACHI |
| Model P/N | TX18D57VM2BAB |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 152.4(W)×91.44(H) mm |
| Bezel Opening | 154.8(W)×93.84(H) mm |
| Outline Dim. | 167.8(H)×108.6(V)×16(D) mm |
| Treatment | Antiglare |
| Luminance | 600 cd/m² (Typ.) |
| Contrast Ratio | 450:1 (Typ.) (TM) |
| View Direction | 12 o'clock |
| Response Time | 20/10 (Typ.)(Tr/Td) |
| Viewing Angle | 65/65/65/55 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 45%NTSC |
| Light Source | CCFL [1 pcs], W/O Driver |
| Weight | 325g (Typ.) |
| Designed For | Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | CMOS (1 ch, 6-bit), 40 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 80 °C; Storage Temperature: -40 ~ 80 °C; Vibration Level: 2.0G (19.6 m/s²) |
| TX18D57VM2BAB 7.0 inch 800*480 LCD Screen LCD For KOE | |
TX18D57VM2BAB LCD Panel Shipping and Package :
Q: How long is the warranty of TX18D57VM2BAB ?
A: NEW Product warranty is 90 days.
Q: How to order lcd panel TX18D57VM2BAB ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
