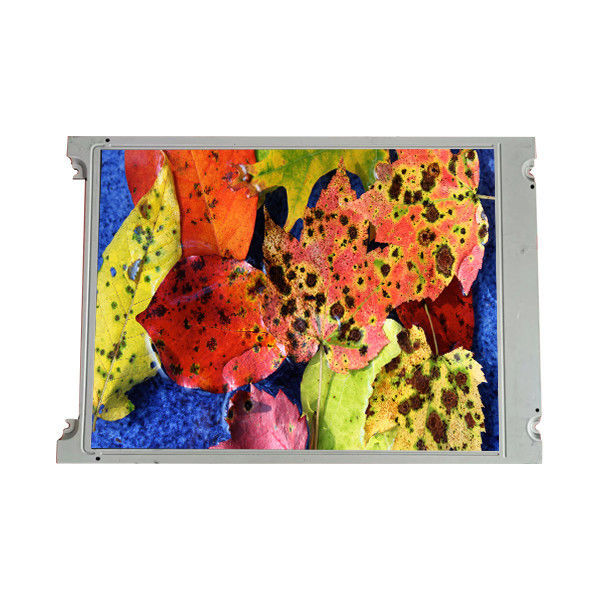

TX18D57VM2BAA 7.0 inch 800*480 LCD Screen LCD For KOE

All Category

Floor Standing Digital Signage

TX18D57VM2BAA 7.0 inch 800*480 LCD Screen LCD For KOE

Brand Name:	KOE
Model Number:	TX18D57VM2BAA
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TX18D57VM2BAA

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 133PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

152.4(W)×91.44(H) Mm

Application:

Industrial、Automotive Display

Input Voltage:

3.3V (Typ.)(VDD)

Supply Ability:

100000 Unit/Units per Month

Product Description

TX18D57VM2BAA 7.0 inch 800*480 LCD Screen LCD For KOE

TX18D57VM2BAA LCD Panel Product details :

Brand	HITACHI
Model P/N	TX18D57VM2BAA
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 133PPI
Pixel Format	RGB Vertical Stripe
Active Area	152.4(W)×91.44(H) mm
Bezel Opening	154.8(W)×93.84(H) mm
Outline Dim.	167.8(H)×108.6(V)×16(D)mm
Treatment	Antiglare
Luminance	600 cd/m² (Typ.)
Contrast Ratio	450:1 (Typ.) (TM)
View Direction	12 o'clock
Response Time	20/10 (Typ.)(Tr/Td)
Viewing Angle	65/65/65/55 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K 45%NTSC
Light Source	CCFL [1 pcs], W/O Driver
Weight	325g (Typ.)
Designed For	Industrial,Automotive Display
Frame Rate	60Hz
Touch Panel	Without
Interface Type	CMOS (1 ch, 6-bit), 40 pinsConnector
Power Supply	3.3V (Typ.)(VDD)
Environment	Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -40 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)
TX18D57VM2BAA 7.0 inch 800*480 LCD Screen LCD For KOE

TX18D57VM2BAA lcd panel About Us:

At YONGS , we are dedicated to fulfilling the following commitments:

Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.

Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.

Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.

TX18D57VM2BAA LCD Panel Shipping and Package :

TX18D57VM2BAA LCD Panel Delivery :

We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.

The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.

Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.

TX18D57VM2BAA LCD Panel After-Service:

We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.

Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.

Please take note of these terms to ensure a smooth and efficient after-sales experience.

TX18D57VM2BAA LCD Panel FAQ :

Q: How to order lcd panel TX18D57VM2BAA ?

A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.

Q: How long is the warranty of TX18D57VM2BAA ?

A: NEW Product warranty is 90 days.
