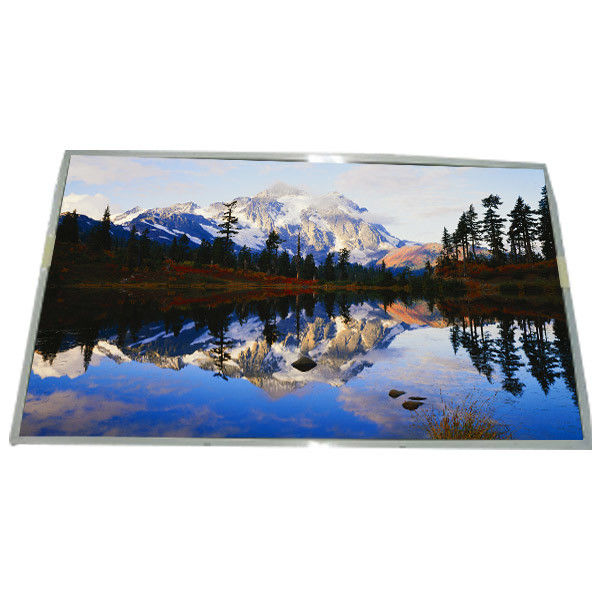

LM201U02-A3M1 20.1 inch TFT LCD Display 1600*1200 IPS LCD Panel

Brand Name:	LG
Model Number:	LM201U02-A3M1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM201U02-A3M1

Diagonal Size:

20.1"

Resolution:

1600(RGB)×1200, UXGA 99PPI

Active Area:

408(W)×306(H) Mm

Outline Dim.:

467.8(H)×361(V)×25(D)mm

Pixel Format:

RGB Vertical Stripe

Operating Mode:

IPS, Normally Black, Transmissive

Frame Rate:

Application:

Desktop Monitor

Interface Type:

Single Link TMDS, 36 PinsConnector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM201U02-A3M1 20.1 inch TFT LCD Display 1600*1200 IPS LCD Panel

LM201U02-A3M1 LCD Panel Product details :

Brand	LG
Model P/N	LM201U02-A3M1
Diagonal Size	20.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1600(RGB)×1200, UXGA 99PPI
Pixel Format	RGB Vertical Stripe
Active Area	408(W)×306(H) mm
Bezel Opening	413.0(W)×311.0(H) mm
Outline Dim.	467.8(H)×361(V)×25(D)mm
Treatment	Antiglare, Hard coating (3H)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	300:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	15/15 (Typ.)(Tr/Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	IPS, Normally Black, Transmissive
Support Color	16.7M 60%NTSC
Light Source	CCFL [6 pcs], 30K hours, W/O Driver
Weight	3.70Kgs (Typ.)
Designed For	Desktop Monitor
Frame Rate	60Hz
Touch Panel	Without
Interface Type	Single Link TMDS, 36 pinsConnector
Power Supply	18.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
LM201U02-A3M1 20.1 inch TFT LCD Display 1600*1200 IPS LCD Panel

LM201U02-A3M1 LCD Display Warning:

Installation Guide Not Included:

Please be aware that the installation guide is not included with this accessory. We want to emphasize that we cannot be held responsible for any damage resulting from improper installation. Prior to bidding, ensure that you possess the necessary expertise for installation. Your understanding in this matter is greatly appreciated.

Compatibility Guarantee:

We guarantee compatibility with your machine for the item you receive. However, please note that we only assure compatibility and cannot guarantee specific features beyond that.

Quality Assurance and Testing:

Rest assured, each screen undergoes thorough testing, ensuring 100% operational functionality before shipment. This includes repairing or replacing old, damaged, cracked, or faulty filters to maintain optimal performance standards.

Precautionary Measures Upon Receipt:

Upon receiving the product, please refrain from removing the protective film or applying adhesive on the back immediately. It is crucial to first test the machine by inserting the new screen and checking for normal sensitivity. This step ensures quality compliance and prevents potential damage to the motherboard and screen.

Safety Protocol During Testing:

Before conducting any tests, disconnect the power to prevent the risk of damaging the motherboard and screen. Failure to do so may result in irreparable damage, for which we cannot be held responsible. Please exercise caution and follow these instructions diligently.

LM201U02-A3M1 LCD Display Helpful Information:

We understand the importance of ensuring compatibility when purchasing an LCD display. To assist you in making the right choice and to avoid any compatibility issues, we offer the following helpful information:

Matching Size, Resolution, and Backlight:

It's crucial to match the size, resolution, and backlight specifications of the product with your existing screen. This ensures seamless integration and optimal performance. Please double-check these specifications before making your purchase.

If you are uncertain about which screen to choose or if you have any questions regarding compatibility, please don't hesitate to reach out to us. You can provide us with details such as your LCD brand, serial number, model, or the model number located on the back of your current screen. Our dedicated technicians are here to assist you in selecting the correct screen for your needs.

LM201U02-A3M1 LCD Panel Shipping and Package :

LM201U02-A3M1 LCD Panel FAQ :

Q: Are you manufactory or trade company?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: Can you declared low value for my order when shipping?

A: Yes, We can do it for you if you need.

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .

Q: Why big order delivery time are long?

A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!

LM201U02-A3M1 LCD Display Service Hours:

Thank you for choosing our product. We are committed to providing exceptional customer service to ensure your satisfaction. Our service hours, based on Beijing time, are as follows:

Monday to Friday: 8:00 AM - 12:00 PM, 1:30 PM - 6:00 PM

However, please note that we understand your needs may arise outside of these hours. Therefore, we have dedicated customer service representatives available 24 hours a day to assist you with any inquiries or issues you may encounter.

Feel free to reach out to us at any time, and we will do our utmost to address your concerns promptly and effectively.

Thank you for your trust in our products and services. We look forward to serving you.
