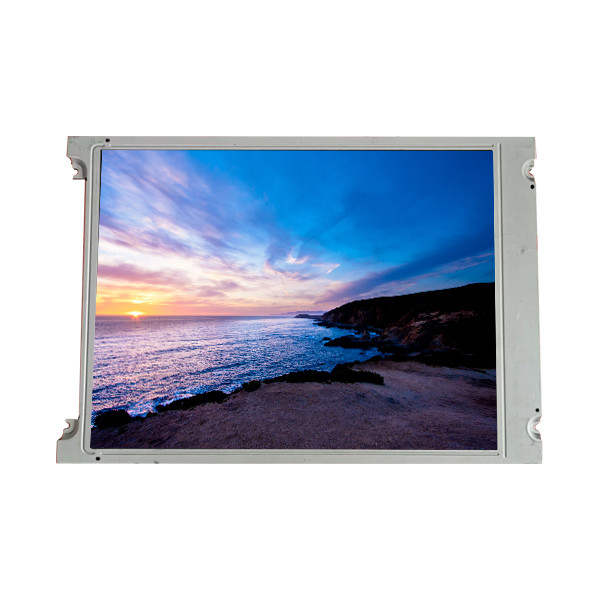

TX18D45VM5BPA 7.0 inch 800*480 LCD Screen LCD For KOE

Brand Name:	KOE
Model Number:	TX18D45VM5BPA
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TX18D45VM5BPA

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 133PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

152.4(W)×91.44(H) Mm

Application:

Automotive Display

Input Voltage:

3.3V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

TX18D45VM5BPA 7.0 inch 800*480 LCD Screen LCD For KOE

TX18D45VM5BPA LCD Panel Product details :

Brand	KOE
Model P/N	TX18D45VM5BPA
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 133PPI
Pixel Format	RGB Vertical Stripe
Active Area	152.4(W)×91.44(H) mm
Bezel Opening	155.5(W)×93.44(H) mm
Outline Size	165(W)×106(H)×9.9(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	480 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	-
Response Time	20 (Typ.)(Tr+Td)
Display Colors	262K 45%NTSC
Lamp Type	3S9PWLED, 40K hours, Without Driver
Frequency	60Hz
Touch Screen	4-wire Resistive Touch, F/G
Panel Weight	168g
Application	Automotive Display
Signal Interface	LVDS (1 ch, 6-bit), 20 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C; Vibration Level: 2.0G (19.6 m/s²)
