Industrial LCD Panel Display

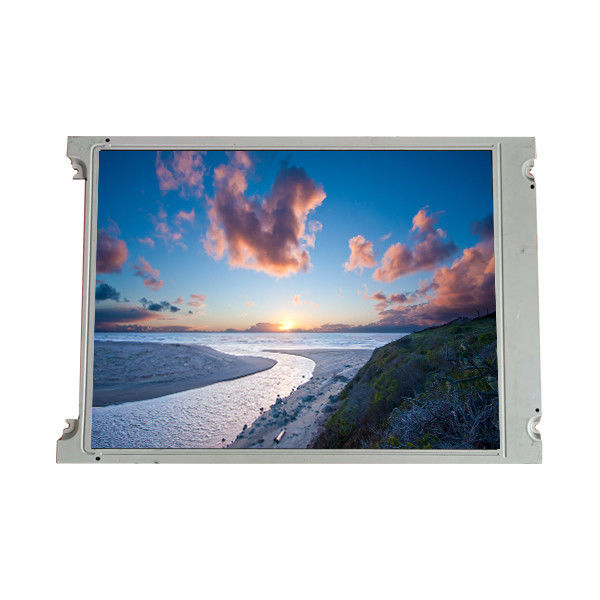

TX18D44VM2BPA 7.0 inch 800*480 LCD Screen LCD For KOE

All Category

Floor Standing Digital Signage

Multi Touch Screen Panel

chance

info@yongs-hk.com

86-18575563918

Contact Now

TX18D44VM2BPA 7.0 inch 800*480 LCD Screen LCD For KOE

Brand Name:	KOE
Model Number:	TX18D44VM2BPA
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TX18D44VM2BPA

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 133PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

152.4(W)×91.44(H) Mm

Application:

Industrial

Input Voltage:

3.3V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

TX18D44VM2BPA 7.0 inch 800*480 LCD Screen LCD For KOE

TX18D44VM2BPA LCD Panel Product details :

Brand	HITACHI
Model P/N	TX18D44VM2BPA
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 133PPI
Pixel Format	RGB Vertical Stripe
Active Area	152.4(W)×91.44(H) mm
Bezel Opening	155.5(W)×93.44(H) mm
Outline(mm)	165(W)×106(H)×9.9(D)
Luminance	320 (Typ.)(cd/m²)
Viewing Angle	65/65/70/70 (Typ.)(CR≥10)
Good View at	-
Color Depth	262K 45% NTSC
Mass	168g (Typ.)
Refresh Rate	60Hz
Treatment	-
Contrast Ratio	600 : 1 (Typ.) (TM)
Work Mode	TN, Normally White, Transmissive
Response	20 (Typ.)(Tr+Td) ms
Backlight	3S9P WLED , 40K hours , No Driver
Used for	Industrial
Touchscreen	4-wire Resistive Touch, F/G
Signal Type	CMOS (1 ch, 6-bit), 40 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 m/s²)
TX18D44VM2BPA 7.0 inch 800*480 LCD Screen LCD For KOE

TX18D44VM2BPA lcd panel About Us:

At YONGS , we are dedicated to fulfilling the following commitments:

Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.

Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.

Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.

TX18D44VM2BPA LCD Panel Shipping and Package :

TX18D44VM2BPA LCD Panel Delivery :

We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.

The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.

Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.

TX18D44VM2BPA LCD Panel After-Service:

We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.

Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.

Please take note of these terms to ensure a smooth and efficient after-sales experience.

TX18D44VM2BPA LCD Panel FAQ :

Q: When will my order TX18D44VM2BPA ship?

A: The order are shipped within 1-2 working days after received the payment.

Q:Can you declared low value for my order when shipping?

A:Yes, We can do it for you if you need.

Q: What happen if the lcd panel TX18D44VM2BPA I received can't work ?

A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q: Are you manufactory or trade company?

A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
