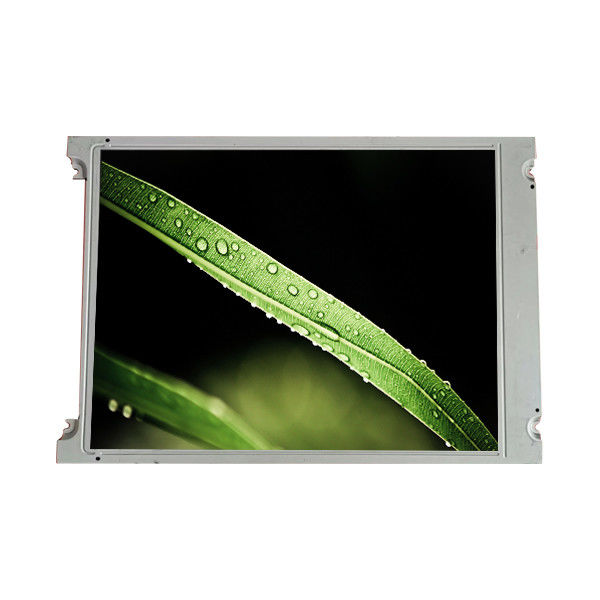

TX18D37VM0APA 7.0 inch 800*480 LCD Screen LCD Panel

All Category

Floor Standing Digital Signage

TX18D37VM0APA 7.0 inch 800*480 LCD Screen LCD Panel

Brand Name:	KOE
Model Number:	TX18D37VM0APA
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TX18D37VM0APA

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 133PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

152.4(W)×91.44(H) Mm

Application:

Industrial

Input Voltage:

3.3V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

TX18D37VM0APA 7.0 inch 800*480 LCD Screen LCD Panel

TX18D37VM0APA LCD Panel Product details :

Brand	HITACHI
Model P/N	TX18D37VM0APA
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 133PPI
Pixel Format	RGB Vertical Stripe
Active Area	152.4(W)×91.44(H) mm
Bezel Opening	155.74(W)×94.74(H) mm
Outline Size	166.1(W)×107.82(H)×14.9(D) mm
Surface	Antiglare
Brightness	360 cd/m² (Typ.)
Contrast Ratio	600:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Display Mode	IPS, Normally Black, Transmissive
Best View on	Symmetry
Response Time	45 (Max.)(Tr+Td)
Display Colors	262K 51%NTSC
Lamp Type	3S4PWLED, 70K hours, With LED Driver
Frequency	60Hz
Touch Screen	4-wire Resistive Touch, F/G
Panel Weight	300g (Typ.)
Application	Industrial
Signal Interface	LVDS (1 ch, 6-bit), 20 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C; Vibration Level: 2.0G (19.6 m/s²)
TX18D37VM0APA 7.0 inch 800*480 LCD Screen LCD Panel

TX18D37VM0APA lcd panel About Us:

At YONGS , we are dedicated to fulfilling the following commitments:

Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.

Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.

Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.

TX18D37VM0APA LCD Panel Shipping and Package :

TX18D37VM0APA LCD Panel Delivery :

We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.

The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.

Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.

TX18D37VM0APA LCD Panel After-Service:

We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.

Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.

Please take note of these terms to ensure a smooth and efficient after-sales experience.

TX18D37VM0APA LCD Panel FAQ :

Q: How long will I receive my goods of lcd TX18D37VM0APA ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: When will my order TX18D37VM0APA ship?

A: The order are shipped within 1-2 working days after received the payment

Q: Do you accept the sample order?

A: Yes , sample order is welcome.

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
