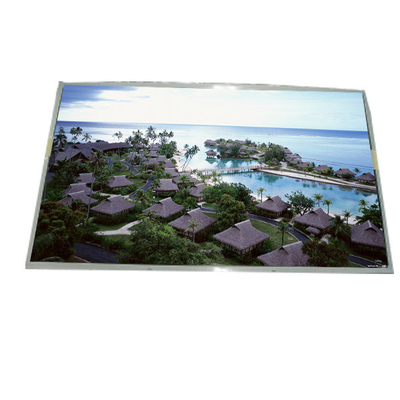

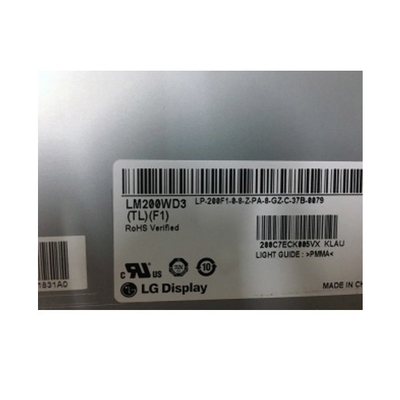

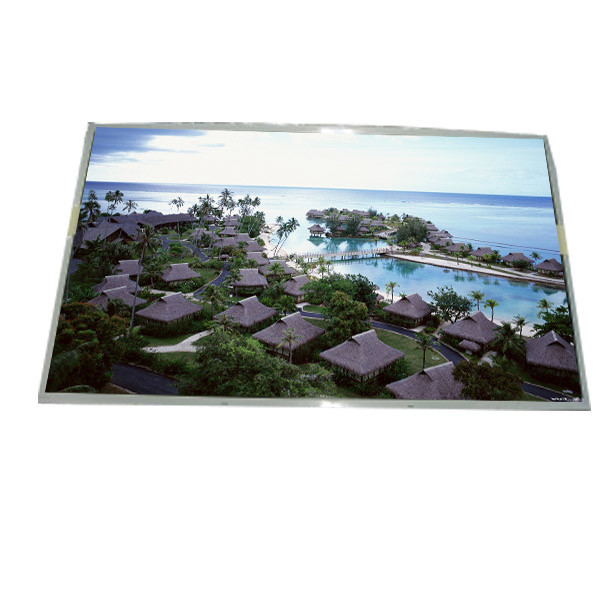

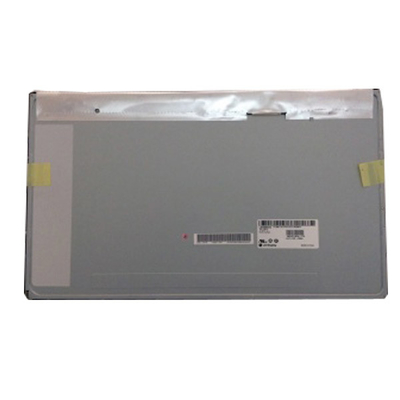

LM200WD3-TLF1 20.0 inch TFT LCD Screen 1600*900 LCD Panel LVDS

Brand Name:	LG
Model Number:	LM200WD3-TLF1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM200WD3-TLF1

Diagonal Size:

20.0"

Resolution:

1600(RGB)×900, HD+ 91PPI

Active Area:

442.8(W)×249.075(H) Mm

Outline Size:

462.8(W)×27.2(H)×10.7(D) Mm

Display Mode:

TN, Normally White, Transmissive

Display Colors:

16.7M 72%NTSC

Lamp Type:

13S2PWLED, 30K Hours, Without Driver

Application:

Desktop Monitor

Signal Interface:

LVDS (2 Ch, 8-bit), 30 Pins Connector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM200WD3-TLF1 20.0 inch TFT LCD Screen 1600*900 LCD Panel LVDS

LM200WD3-TLF1 LCD Panel Product details :

Brand	LG
Model P/N	LM200WD3-TLF1
Diagonal Size	20.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1600(RGB)×900, HD+ 91PPI
Pixel Format	RGB Vertical Stripe
Active Area	442.8(W)×249.075(H) mm
Bezel Opening	446.8(W)×253.1(H) mm
Outline Size	462.8(W)×27.2(H)×10.7(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	250 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	85/85/75/85 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	1.3/3.7 (Typ.)(Tr/Td)
Display Colors	16.7M 72%NTSC
Lamp Type	13S2PWLED, 30K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	1.49/1.50Kgs (Typ./Max.)
Application	Desktop Monitor
Signal Interface	LVDS (2 ch, 8-bit), 30 pins Connector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
LM200WD3-TLF1 20.0 inch TFT LCD Screen 1600*900 LCD Panel LVDS

LM200WD3-TLF1 LCD Display Warning:

Installation Guide Not Included:

Please be aware that the installation guide is not included with this accessory. We want to emphasize that we cannot be held responsible for any damage resulting from improper installation. Prior to bidding, ensure that you possess the necessary expertise for installation. Your understanding in this matter is greatly appreciated.

Compatibility Guarantee:

We guarantee compatibility with your machine for the item you receive. However, please note that we only assure compatibility and cannot guarantee specific features beyond that.

Quality Assurance and Testing:

Rest assured, each screen undergoes thorough testing, ensuring 100% operational functionality before shipment. This includes repairing or replacing old, damaged, cracked, or faulty filters to maintain optimal performance standards.

Precautionary Measures Upon Receipt:

Upon receiving the product, please refrain from removing the protective film or applying adhesive on the back immediately. It is crucial to first test the machine by inserting the new screen and checking for normal sensitivity. This step ensures quality compliance and prevents potential damage to the motherboard and screen.

Safety Protocol During Testing:

Before conducting any tests, disconnect the power to prevent the risk of damaging the motherboard and screen. Failure to do so may result in irreparable damage, for which we cannot be held responsible. Please exercise caution and follow these instructions diligently.

LM200WD3-TLF1 LCD Display Helpful Information:

We understand the importance of ensuring compatibility when purchasing an LCD display. To assist you in making the right choice and to avoid any compatibility issues, we offer the following helpful information:

Matching Size, Resolution, and Backlight:

It's crucial to match the size, resolution, and backlight specifications of the product with your existing screen. This ensures seamless integration and optimal performance. Please double-check these specifications before making your purchase.

If you are uncertain about which screen to choose or if you have any questions regarding compatibility, please don't hesitate to reach out to us. You can provide us with details such as your LCD brand, serial number, model, or the model number located on the back of your current screen. Our dedicated technicians are here to assist you in selecting the correct screen for your needs.

LM200WD3-TLF1 LCD Panel Shipping and Package :

LM200WD3-TLF1 LCD Panel FAQ :

Q: How can I trace my order of LM200WD3-TLF1 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can you give me a discount if I need a large quantity of LM200WD3-TLF1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of LM200WD3-TLF1 ?

A: Of course!sample order is welcome !

Q: Can I pay my order of LM200WD3-TLF1 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

LM200WD3-TLF1 LCD Display Service Hours:

Thank you for choosing our product. We are committed to providing exceptional customer service to ensure your satisfaction. Our service hours, based on Beijing time, are as follows:

Monday to Friday: 8:00 AM - 12:00 PM, 1:30 PM - 6:00 PM

However, please note that we understand your needs may arise outside of these hours. Therefore, we have dedicated customer service representatives available 24 hours a day to assist you with any inquiries or issues you may encounter.

Feel free to reach out to us at any time, and we will do our utmost to address your concerns promptly and effectively.

Thank you for your trust in our products and services. We look forward to serving you.
