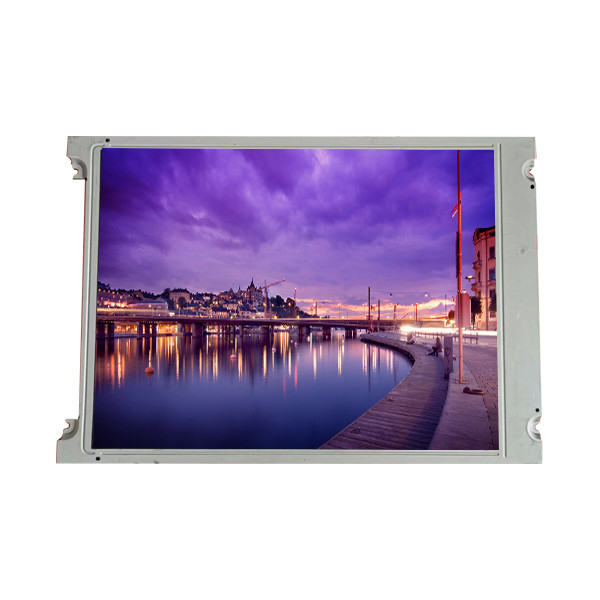

TX17D01VM2CPB 6.5 inch LCD Screen Display Module For Industrial

All Category

Floor Standing Digital Signage

Stretched Bar LCD Display

chance

info@yongs-hk.com

86-18575563918

Contact Now

TX17D01VM2CPB 6.5 inch LCD Screen Display Module For Industrial

Brand Name:	KOE
Model Number:	TX17D01VM2CPB
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TX17D01VM2CPB

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

640(RGB)×480, VGA 122PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

132.48(W)×99.36(H) Mm

Brightness:

800 Cd/m² (Typ.)

Contrast Ratio:

600 : 1 (Typ.) (TM)

Application:

Industrial

Input Voltage:

3.3V (Typ.)(VDD)

Supply Ability:

100000 Unit/Units per Month

Product Description

TX17D01VM2CPB 6.5 inch LCD Screen Display Module For Industrial

TX17D01VM2CPB LCD Panel Product details :

Brand	HITACHI
Model P/N	TX17D01VM2CPB
Diagonal Size	6.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, VGA 122PPI
Pixel Format	RGB Vertical Stripe
Active Area	132.48(W)×99.36(H) mm
Bezel Opening	135.9(W)×102.8(H) mm
Outline Size	153(W)×118(H)×10.5(D) mm
Surface	Antiglare
Brightness	800 cd/m² (Typ.)
Contrast Ratio	600:1 (Typ.) (TM)
Viewing Angle	80/80/60/80 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	30 (Typ.)(Tr+Td)
Display Colors	262K 50%NTSC
Lamp Type	3S4PWLED, 70K hours, With LED Driver
Frequency	60Hz
Touch Screen	4-wire Resistive Touch, F/G
Panel Weight	240g (Typ.)
Application	Industrial
Signal Interface	CMOS (1 ch, 6-bit), 31 pins Connector
Input Voltage	3.3V (Typ.)(VDD)
Environment	Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C; Vibration Level: 2.0G (19.6 m/s²)
TX17D01VM2CPB 6.5 inch LCD Screen Display Module For Industrial

TX17D01VM2CPB lcd panel About Us:

At YONGS , we are dedicated to fulfilling the following commitments:

Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.

Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.

Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.

TX17D01VM2CPB LCD Panel Shipping and Package :

TX17D01VM2CPB LCD Panel Delivery :

We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.

The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.

Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.

TX17D01VM2CPB LCD Panel After-Service:

We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.

Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.

Please take note of these terms to ensure a smooth and efficient after-sales experience.

TX17D01VM2CPB LCD Panel FAQ :

Q: Why big order delivery time are long?

A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!

Q:Can you declared low value for my order when shipping?

A:Yes, We can do it for you if you need.

Q: What happen if the lcd panel TX17D01VM2CPB I received can't work ?

A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
