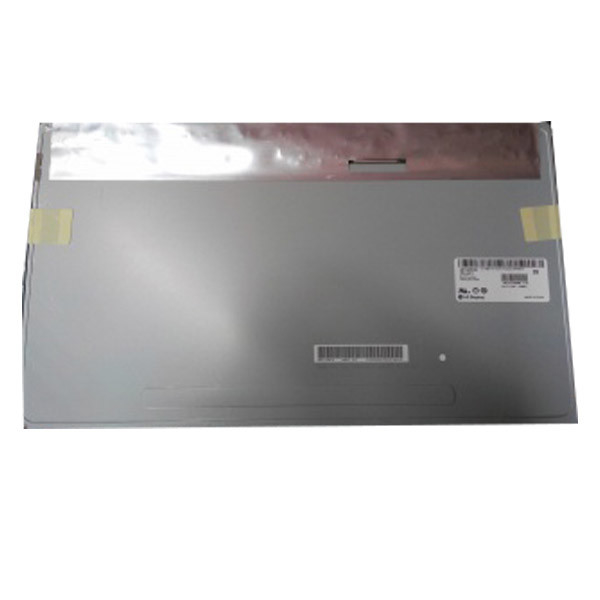

LM195WD2-SLA1 WLED 1600*900 LCD Display 19.5 inch TFT LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LM195WD2-SLA1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM195WD2-SLA1 | Diagonal Size: | 19.5" |
|---|---|---|---|
| Resolution: | 1600(RGB)×900, HD+ 94PPI | Active Area: | 433.92(W)×236.34(H) Mm |
| Outline Dim.: | 452(W)×263(H)×11(D) | Color Depth: | 16.7M 72% NTSC |
| Work Mode: | IPS, Normally Black, Transmissive | Backlight: | 12S2P WLED , 30K Hours , No Driver |
| Used For: | Desktop Monitor | Signal Interface: | LVDS (2 Ch, 8-bit), 30 Pins Connector |
Product Description
LM195WD2-SLA1 WLED 1600*900 LCD Display 19.5 inch TFT LCD Screen
LM195WD2-SLA1 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LM195WD2-SLA1 |
| Diagonal Size | 19.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1600(RGB)×900, HD+ 94PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 433.92(W)×236.34(H) mm |
| Bezel Opening | 437.2(W)×239.6(H) mm |
| Outline(mm) | 452(W)×263(H)×11(D) |
| Luminance | 250 (Typ.)(cd/m²) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 16.7M 72% NTSC |
| Mass | 1.52/1.60Kgs (Typ./Max.) |
| Refresh Rate | 60Hz |
| Treatment | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Work Mode | IPS, Normally Black, Transmissive |
| Response | 14 (Typ.)(G to G) ms |
| Backlight | 12S2P WLED , 30K hours , No Driver |
| Used for | Desktop Monitor |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit), 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LM195WD2-SLA1 WLED 1600*900 LCD Display 19.5 inch TFT LCD Screen | |
LM195WD2-SLA1 LCD Display Warning:
Installation Guide Not Included:
Please be aware that the installation guide is not included with this accessory. We want to emphasize that we cannot be held responsible for any damage resulting from improper installation. Prior to bidding, ensure that you possess the necessary expertise for installation. Your understanding in this matter is greatly appreciated.
Compatibility Guarantee:
We guarantee compatibility with your machine for the item you receive. However, please note that we only assure compatibility and cannot guarantee specific features beyond that.
Quality Assurance and Testing:
Rest assured, each screen undergoes thorough testing, ensuring 100% operational functionality before shipment. This includes repairing or replacing old, damaged, cracked, or faulty filters to maintain optimal performance standards.
Precautionary Measures Upon Receipt:
Upon receiving the product, please refrain from removing the protective film or applying adhesive on the back immediately. It is crucial to first test the machine by inserting the new screen and checking for normal sensitivity. This step ensures quality compliance and prevents potential damage to the motherboard and screen.
Safety Protocol During Testing:
Before conducting any tests, disconnect the power to prevent the risk of damaging the motherboard and screen. Failure to do so may result in irreparable damage, for which we cannot be held responsible. Please exercise caution and follow these instructions diligently.
LM195WD2-SLA1 LCD Display Helpful Information:
We understand the importance of ensuring compatibility when purchasing an LCD display. To assist you in making the right choice and to avoid any compatibility issues, we offer the following helpful information:
Matching Size, Resolution, and Backlight:
It's crucial to match the size, resolution, and backlight specifications of the product with your existing screen. This ensures seamless integration and optimal performance. Please double-check these specifications before making your purchase.
Contact Us for Assistance:
If you are uncertain about which screen to choose or if you have any questions regarding compatibility, please don't hesitate to reach out to us. You can provide us with details such as your LCD brand, serial number, model, or the model number located on the back of your current screen. Our dedicated technicians are here to assist you in selecting the correct screen for your needs.
LM195WD2-SLA1 LCD Panel Shipping and Package :
LM195WD2-SLA1 LCD Panel FAQ :
Q: What happen if the lcd panel LM195WD2-SLA1 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Can you declared low value of my order about LM195WD2-SLA1 ?
A: Yes , we can . But you need to leave message to us before shipping.
Q: When will my order LM195WD2-SLA1 ?
A: The order are shipped within 1-2 working days after received the payment.
Q: How to order LG LM195WD2-SLA1 ?
A: We accept T/T , PAYPAL , WESTERN UNION .
LM195WD2-SLA1 LCD Display Service Hours:
Thank you for choosing our product. We are committed to providing exceptional customer service to ensure your satisfaction. Our service hours, based on Beijing time, are as follows:
Monday to Friday: 8:00 AM - 12:00 PM, 1:30 PM - 6:00 PM
However, please note that we understand your needs may arise outside of these hours. Therefore, we have dedicated customer service representatives available 24 hours a day to assist you with any inquiries or issues you may encounter.
Feel free to reach out to us at any time, and we will do our utmost to address your concerns promptly and effectively.
Thank you for your trust in our products and services. We look forward to serving you.
Want to Know more details about this product
