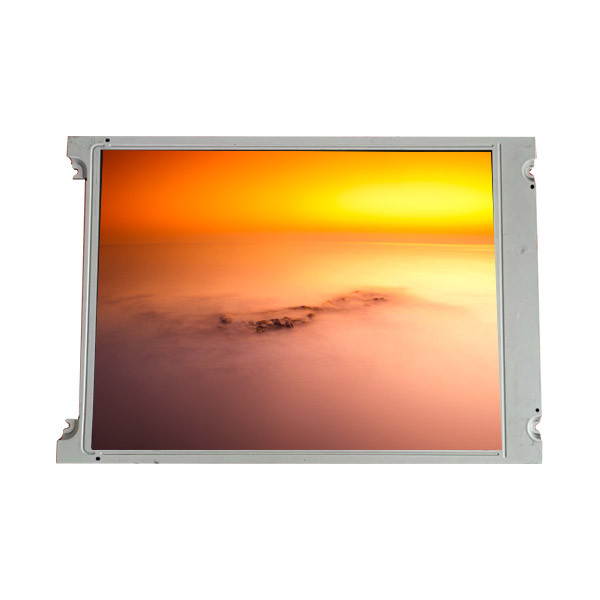

TX16D204VM0BVA 6.3 inch LCD Screen Display Panel For KOE

All Category

Floor Standing Digital Signage

TX16D204VM0BVA 6.3 inch LCD Screen Display Panel For KOE

Brand Name:	KOE
Model Number:	TX16D204VM0BVA
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TX16D204VM0BVA

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×280 135PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

150(W)×52.5(H) Mm

Brightness:

500 (Typ.)(cd/m²)

Contrast Ratio:

1000 : 1 (Typ.) (TM)

Application:

Industrial

Input Voltage:

3.3V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

TX16D204VM0BVA 6.3 inch LCD Screen Display Panel For KOE

TX16D204VM0BVA LCD Panel Product details :

Brand	KOE
Model P/N	TX16D204VM0BVA
Diagonal Size	6.3"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×280 135PPI
Pixel Format	RGB Vertical Stripe
Active Area	150(W)×52.5(H) mm
Bezel Opening	153(W)×55.5(H) mm
Outline(mm)	167(W)×69(H)×10.54(D)
Luminance	500 (Typ.)(cd/m²)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Good View at	Symmetry
Color Depth	262K 52% NTSC
Mass	156g (Typ.)
Refresh Rate	60Hz
Treatment	Hard coating (6H)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Work Mode	IPS, Normally Black, Transmissive
Response	40 (Typ.)(Tr+Td) ms
Backlight	3S3P WLED , 50K hours , No Driver
Used for	Industrial
Touchscreen	PCAP, I²C
Signal Type	CMOS (1 ch, 6-bit), 50 pins FPC
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 5.0G (49.0 m/s²)
TX16D204VM0BVA 6.3 inch LCD Screen Display Panel For KOE

TX16D204VM0BVA lcd panel About Us:

At YONGS , we are dedicated to fulfilling the following commitments:

Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.

Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.

Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.

TX16D204VM0BVA LCD Panel Shipping and Package :

TX16D204VM0BVA LCD Panel Delivery :

We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.

The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.

Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.

TX16D204VM0BVA LCD Panel After-Service:

We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.

Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.

Please take note of these terms to ensure a smooth and efficient after-sales experience.

TX16D204VM0BVA LCD Panel FAQ :

Q: Are you manufactory or trade company?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: Can you declared low value for my order when shipping?

A: Yes, We can do it for you if you need.

Q: How to order lcd panel TX16D204VM0BVA ?

A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.

Q: Why big order delivery time are long?

A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
