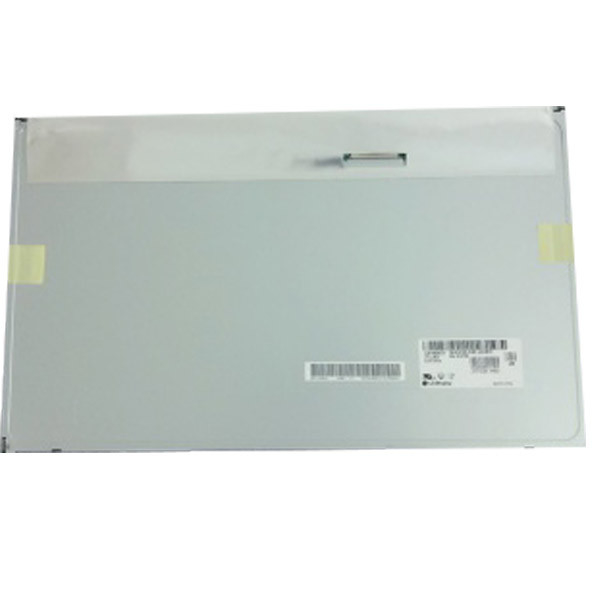

LM195WD1-TLA1 19.5 inch 1600*900 LCD Display Panel

Brand Name:	LG
Model Number:	LM195WD1-TLA1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM195WD1-TLA1

Diagonal Size:

19.5"

Resolution:

1600(RGB)×900, HD+ 94PPI

Active Area:

433.92(W)×236.34(H) Mm

Outline Dim.:

452(W)×263(H)×11(D) Mm

Color Depth:

16.7M 72%NTSC

Work Mode:

TN, Normally White, Transmissive

Lamp Type:

12S2PWLED, 30K Hours, No Driver

Used For:

Desktop Monitor

Signal Interface:

LVDS (2 Ch, 8-bit), 30 PinsConnector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM195WD1-TLA1 19.5 inch 1600*900 LCD Display Panel

LM195WD1-TLA1 LCD Panel Product details :

Brand	LG Display
Model P/N	LM195WD1-TLA1
Diagonal Size	19.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1600(RGB)×900, HD+ 94PPI
Pixel Format	RGB Vertical Stripe
Active Area	433.92(W)×236.34(H) mm
Bezel Opening	437.2(W)×239.6(H) mm
Outline Size	452(W)×263(H)×11(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	85/85/75/85 (Typ.)(CR≥10)
Response	1.3/3.7 (Typ.)(Tr/Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	16.7M 72%NTSC
Backlight	12S2PWLED, 30K hours, No Driver
Mass	1.40/1.47Kgs (Typ./Max.)
Used for	Desktop Monitor
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (2 ch, 8-bit), 30 pinsConnector
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
LM195WD1-TLA1 19.5 inch 1600*900 LCD Display Panel

LM195WD1-TLA1 LCD Display Warning:

Installation Guide Not Included:

Please be aware that the installation guide is not included with this accessory. We want to emphasize that we cannot be held responsible for any damage resulting from improper installation. Prior to bidding, ensure that you possess the necessary expertise for installation. Your understanding in this matter is greatly appreciated.

Compatibility Guarantee:

We guarantee compatibility with your machine for the item you receive. However, please note that we only assure compatibility and cannot guarantee specific features beyond that.

Quality Assurance and Testing:

Rest assured, each screen undergoes thorough testing, ensuring 100% operational functionality before shipment. This includes repairing or replacing old, damaged, cracked, or faulty filters to maintain optimal performance standards.

Precautionary Measures Upon Receipt:

Upon receiving the product, please refrain from removing the protective film or applying adhesive on the back immediately. It is crucial to first test the machine by inserting the new screen and checking for normal sensitivity. This step ensures quality compliance and prevents potential damage to the motherboard and screen.

Safety Protocol During Testing:

Before conducting any tests, disconnect the power to prevent the risk of damaging the motherboard and screen. Failure to do so may result in irreparable damage, for which we cannot be held responsible. Please exercise caution and follow these instructions diligently.

LM195WD1-TLA1 LCD Display Helpful Information:

We understand the importance of ensuring compatibility when purchasing an LCD display. To assist you in making the right choice and to avoid any compatibility issues, we offer the following helpful information:

Matching Size, Resolution, and Backlight:

It's crucial to match the size, resolution, and backlight specifications of the product with your existing screen. This ensures seamless integration and optimal performance. Please double-check these specifications before making your purchase.

If you are uncertain about which screen to choose or if you have any questions regarding compatibility, please don't hesitate to reach out to us. You can provide us with details such as your LCD brand, serial number, model, or the model number located on the back of your current screen. Our dedicated technicians are here to assist you in selecting the correct screen for your needs.

LM195WD1-TLA1 LCD Panel Shipping and Package :

LM195WD1-TLA1 LCD Panel FAQ :

Q: How to make payment of LM195WD1-TLA1 ?

A: We accept T/T , Paypal , western union .

Q: Can You declare my order of LM195WD1-TLA1 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can I pay my order of LM195WD1-TLA1 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: If I place order now,when will you ship the goods of LM195WD1-TLA1 ?

A: The order will be shipped within 2-3 working days after received your payment.

LM195WD1-TLA1 LCD Display Service Hours:

Thank you for choosing our product. We are committed to providing exceptional customer service to ensure your satisfaction. Our service hours, based on Beijing time, are as follows:

Monday to Friday: 8:00 AM - 12:00 PM, 1:30 PM - 6:00 PM

However, please note that we understand your needs may arise outside of these hours. Therefore, we have dedicated customer service representatives available 24 hours a day to assist you with any inquiries or issues you may encounter.

Feel free to reach out to us at any time, and we will do our utmost to address your concerns promptly and effectively.

Thank you for your trust in our products and services. We look forward to serving you.
