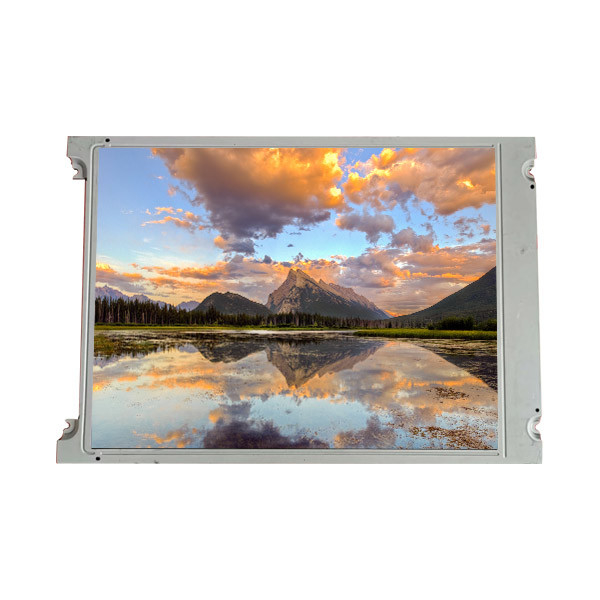

TX16D14VM2CAA 6.2 inch LCD Screen Display Panel LCD Module
Product Details:
| Place of Origin: | China |
| Brand Name: | KOE |
| Model Number: | TX16D14VM2CAA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TX16D14VM2CAA | Diagonal Size: | 6.2" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 640(RGB)×240, HVGA 109PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 148.8(W)×53.76(H) Mm |
| Brightness: | 350 Cd/m² (Typ.) | Contrast Ratio: | 300:1 (Typ.) (TM) |
| Application: | Industrial | Input Voltage: | 3.3V (Typ.) |
Product Description
TX16D14VM2CAA 6.2 inch LCD Screen Display Panel LCD Module
TX16D14VM2CAA LCD Panel Product details :
| Brand | HITACHI |
| Model P/N | TX16D14VM2CAA |
| Diagonal Size | 6.2" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 640(RGB)×240, HVGA 109PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 148.8(W)×53.76(H) mm |
| Bezel Opening | 152.8(W)×57.76(H) mm |
| Outline Size | 173(W)×70(H)×7(D) mm |
| Surface | - |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥5) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 45 (Typ.)(Tr+Td) |
| Display Colors | 262K 60%NTSC |
| Lamp Type | 3S7PWLED, 40K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 110g (Typ.) |
| Application | Industrial |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| TX16D14VM2CAA 6.2 inch LCD Screen Display Panel LCD Module | |
TX16D14VM2CAA LCD Panel Shipping and Package :
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: How to order lcd panel TX16D14VM2CAA ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
Q: Can you test lcd panel TX16D14VM2CAA before shipping?
A: Of course , Our TX16D14VM2CAA was tested before shipping ,So Don't Worry the item quailty .
