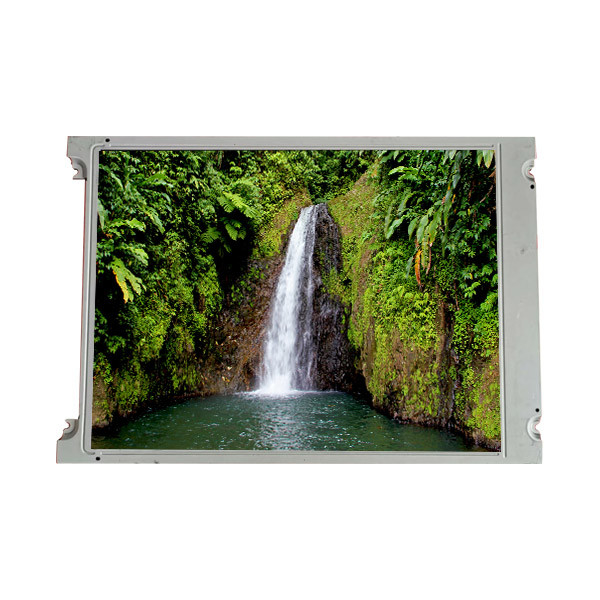

TX16D11VM2CBA 6.2 inch LCD Screen Display Panel LCD Module

Brand Name:	KOE
Model Number:	TX16D11VM2CBA
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TX16D11VM2CBA

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

640(RGB)×240, HVGA 109PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

148.8(W)×53.76(H) Mm

Brightness:

350 Cd/m² (Typ.)

Contrast Ratio:

200:1 (Typ.) (TM)

Application:

Industrial

Input Voltage:

3.3V (Typ.)(VDD)

Supply Ability:

100000 Unit/Units per Month

Product Description

TX16D11VM2CBA 6.2 inch LCD Screen Display Panel LCD Module

TX16D11VM2CBA LCD Panel Product details :

Brand	HITACHI
Model P/N	TX16D11VM2CBA
Diagonal Size	6.2"
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×240, HVGA 109PPI
Pixel Format	RGB Vertical Stripe
Active Area	148.8(W)×53.76(H) mm
Bezel Opening	152.8(W)×57.76(H) mm
Outline Dim.	173(W)×70(H)×7(D) mm
Luminance	350 cd/m² (Typ.)
View Direction	12 o'clock
Viewing Angle	70/70/60/70 (Typ.)(CR≥5)
Support Color	262K 63% NTSC
Weight	110g (Typ.)
Frame Rate	60Hz
Treatment	-
Contrast Ratio	200:1 (Typ.) (TM)
Response Time	45 (Typ.)(Tr+Td)
Operating Mode	TN, Normally White, Transmissive
Light Source	CCFL [1 pcs], W/O Driver
Designed For	Industrial
Touch Panel	Without
Interface Type	CMOS (1 ch, 6-bit)40 pins Connector
Power Supply	3.3V (Typ.)(VDD)
Environment	Operating Temperature: -20 ~ 70 °C; Storage Temperature: -20 ~ 70 °C; Vibration Level: 2.0G (19.6 m/s²)
TX16D11VM2CBA 6.2 inch LCD Screen Display Panel LCD Module

TX16D11VM2CBA lcd panel About Us:

At YONGS , we are dedicated to fulfilling the following commitments:

Quality Assurance: We prioritize manufacturing top-tier consumer goods, guaranteeing the utmost quality in every product we deliver. Our commitment to excellence ensures that our customers receive only the best.

Global Reach: We strive to deliver our goods swiftly and accurately to customers worldwide. Whether you're located locally or across the globe, we ensure fast and precise delivery to meet your needs.

Your satisfaction is our priority, and we aim to exceed expectations in every aspect of our service.

TX16D11VM2CBA LCD Panel Shipping and Package :

TX16D11VM2CBA LCD Panel Delivery :

We are committed to dispatching your order promptly. Upon confirmation of payment, we will process and ship your items within 5 working days.

The shipping method will be determined by the option you select based on shipping costs. Therefore, please choose the most suitable shipping method based on your individual requirements.

Please be aware that if your delivery address is in a remote area, additional charges may apply. Should there be any changes to the shipping cost, we will promptly inform you of the revised amount before proceeding with delivery.

TX16D11VM2CBA LCD Panel After-Service:

We provide a 90-day warranty for this item. However, please note that the cost of returning the item is the responsibility of the buyer.

Our warranty does not cover damage caused by human error or natural disasters. This includes instances such as improper installation, physical damage (e.g., scratches, cracks), mishandling, or tampering with warranty tags during the warranty period. Any disconnection or loss of the product will be considered as relinquishing the warranty, and we will not be liable for any associated issues.

Please take note of these terms to ensure a smooth and efficient after-sales experience.

TX16D11VM2CBA LCD Panel FAQ :

Q: Are you manufactory or trade company?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: Do you accept the TX16D11VM2CBA sample order?

A: Yes , sample order is welcome.

Q: Can you test the lcd panel TX16D11VM2CBA before shipping ?

A: Of Course . You can take a rest that our lcd panel will be tested ok before shipping.

Q: How long is the warranty of TX16D11VM2CBA ?

A: 90DAYS.

Q: How long will I receive my goods of lcd TX16D11VM2CBA ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
