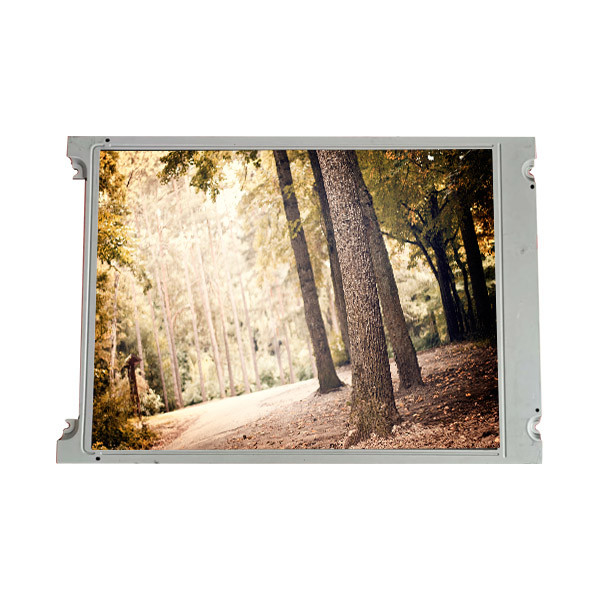

TX16D11VM2CAA 6.2 inch LCD Screen Display Panel LCD Module
Product Details:
| Place of Origin: | China |
| Brand Name: | KOE |
| Model Number: | TX16D11VM2CAA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TX16D11VM2CAA | Diagonal Size: | 6.2" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 640(RGB)×240, HVGA 109PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 148.8(W)×53.76(H) Mm |
| Brightness: | 280 Cd/m² (Typ.) | Contrast Ratio: | 200:1 (Typ.) (TM) |
| Application: | Industrial | Input Voltage: | 3.3V (Typ.) |
Product Description
TX16D11VM2CAA 6.2 inch LCD Screen Display Panel LCD Module
TX16D11VM2CAA LCD Panel Product details :
| Brand | HITACHI |
| Model P/N | TX16D11VM2CAA |
| Diagonal Size | 6.2" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 640(RGB)×240, HVGA 109PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 148.8(W)×53.76(H) mm |
| Bezel Opening | 152.8(W)×57.76(H) mm |
| Outline Size | 173(W)×70(H)×8.6(D) mm |
| Brightness | 280 cd/m² (Typ.) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥5) |
| Best View on | 12 o'clock |
| Display Colors | 262K |
| Frequency | 60Hz |
| Weight | 140g (Typ.) |
| Surface | Antiglare |
| Contrast Ratio | 200:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 45 (Typ.)(Tr+Td) |
| Lamp Type | 1 pcs CCFL, Without Driver |
| Touch Screen | 4-wire Resistive Touch |
| Application | Industrial |
| Signal Interface | CMOS (1 ch, 6-bit), 40 pinsConnector |
| Input Voltage | 3.3V (Typ.)(VDD) |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -20 ~ 70 °C; Vibration Level: 2.0G (19.6 m/s²) |
| TX16D11VC2CAA 6.2 inch LCD Screen Display Panel LCD Module | |
